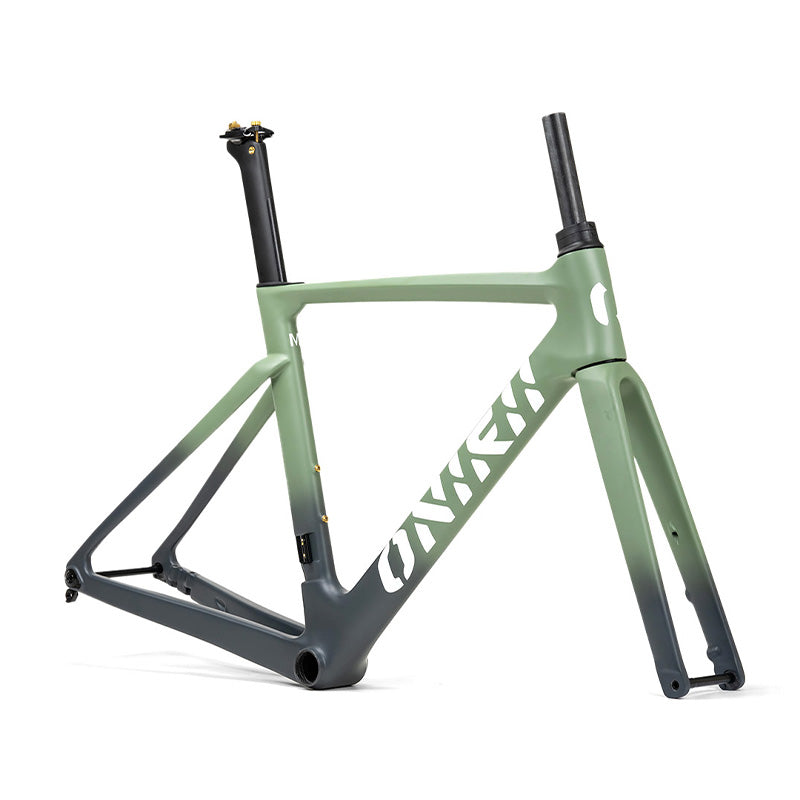

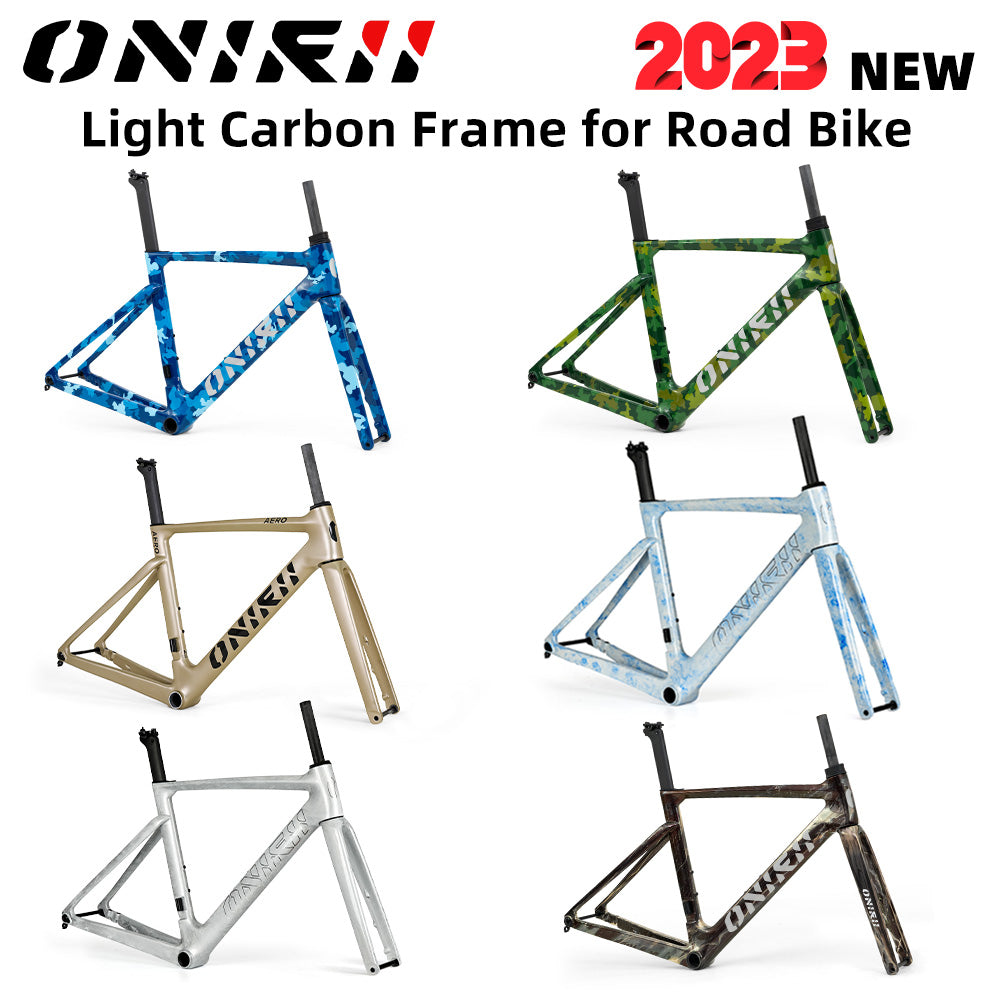

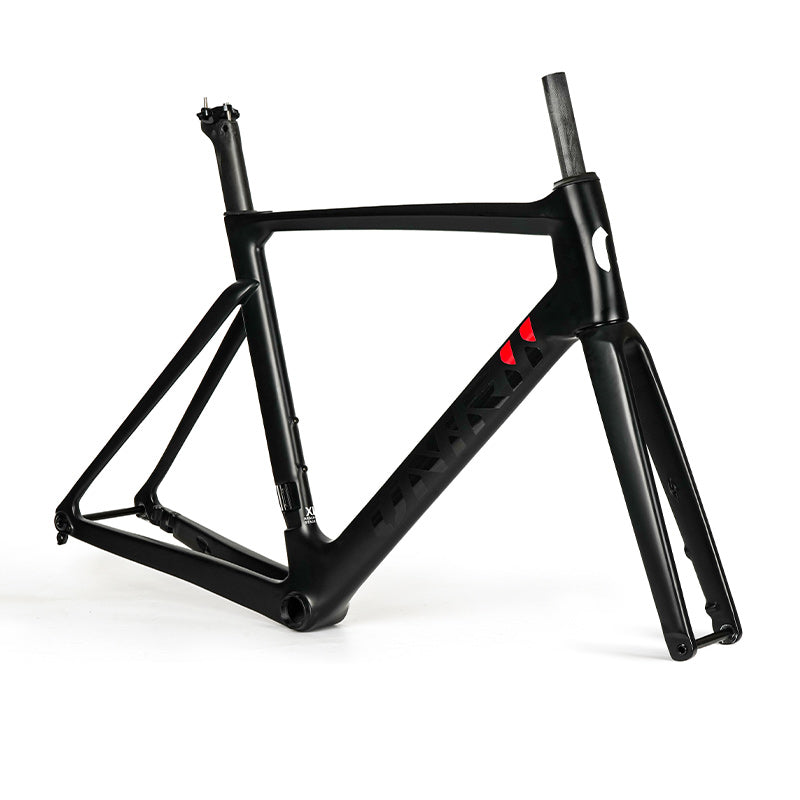

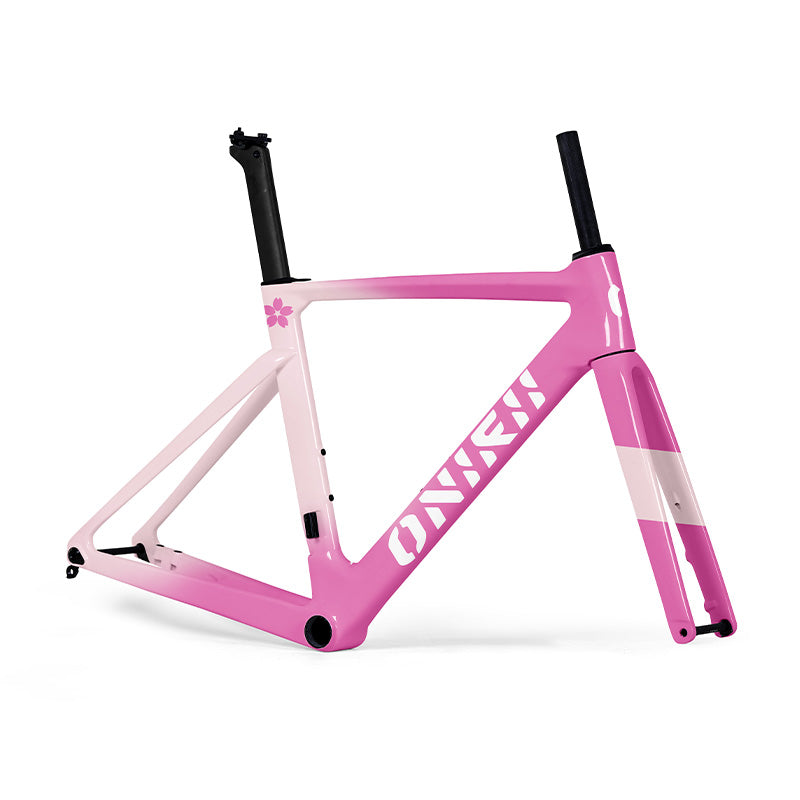

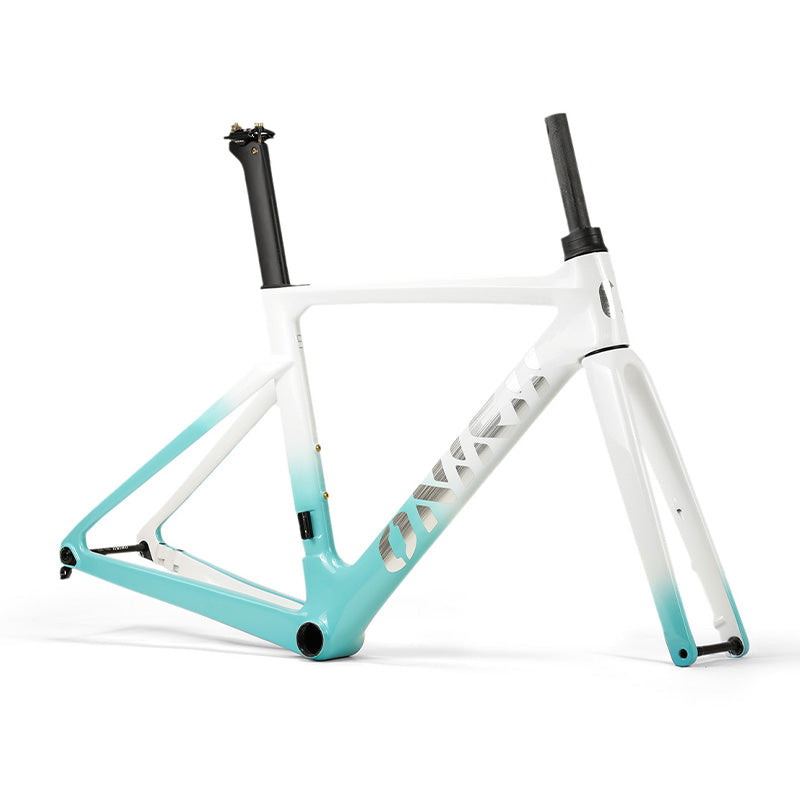

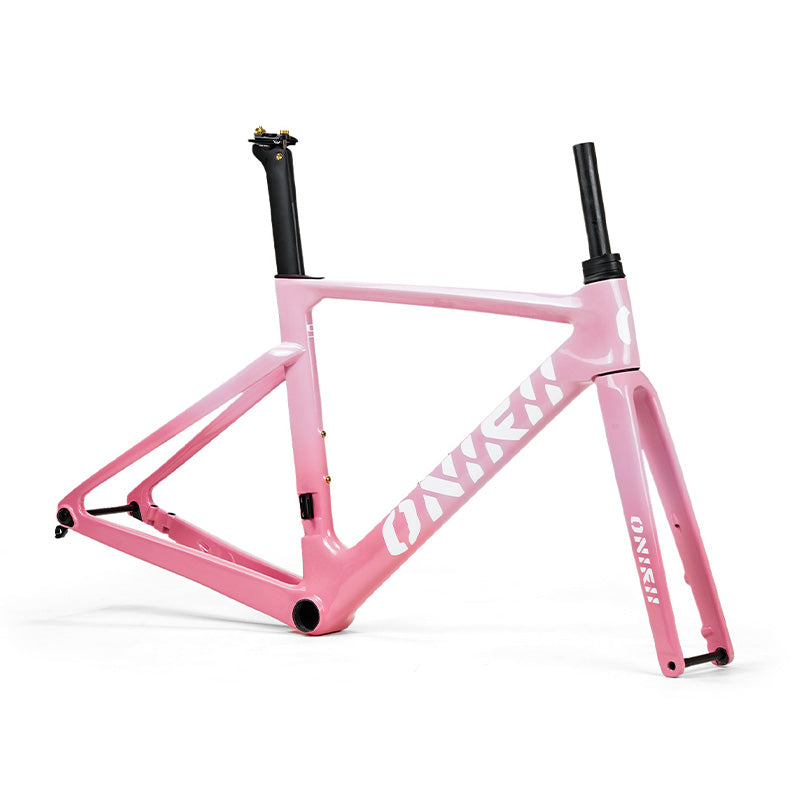

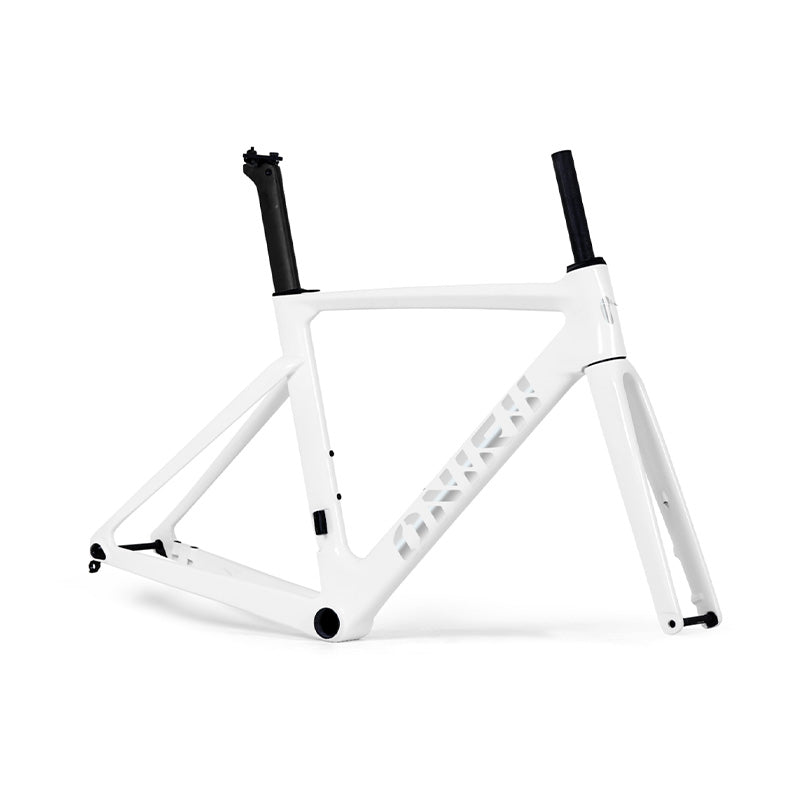

ONIRII AERO Road Bike Frame Carbon with Front Fork, Headset, Seat Post

Special Notes:

For buyers from EU countries, please contact our customer service if you need tax-free channel.

About customized frames (customized frames can add your words and patterns，the main logo“ONIRII” cannot be deleted or removed, only the color or shade of the logo can be changed.)

Custom standard painting is free of charge, standard painting refers to solid color frames with no more than 2 colors，custom special painting need to add $200, special painting refers to the frame more than 3 colors or with special patterns and colors, such as ice crack, painted patterns, onyx pattern and so on

Brand:ONIRII
Frame model:AERO
Frame type:road bike frame
Frame material:Japan TORAY T800 carbon fiber
Bottom bracket specification: BB86
Head tube specification: 52mmx7mm
Front and rear open gear: 12x100mm 12x142mm
Electronic shifting: Support
Max tire compatibility: 700x30C max
Brake mount: flat mount structure
Frame cable layout: full internal

Weight limit: 100kg/220lb
Warranty: 5 years
Net frame weight: 975g（Size S Standard Painted Frame）
+ Frame with tail hook, lugs, water bottle cage screws
1000g
+ Seat post 1175g
+ Fork 1675g (not cut off the tube)
+ One piece handlebar 2015g (360x60)

Frame comes with accessories: Front fork, head parts, seat tube, seat tube clamp, front derailleur lug, tail hook, thru axle bar

Frame Geometry

This frame is designed with smooth lines to bring you a more aerodynamic riding experience

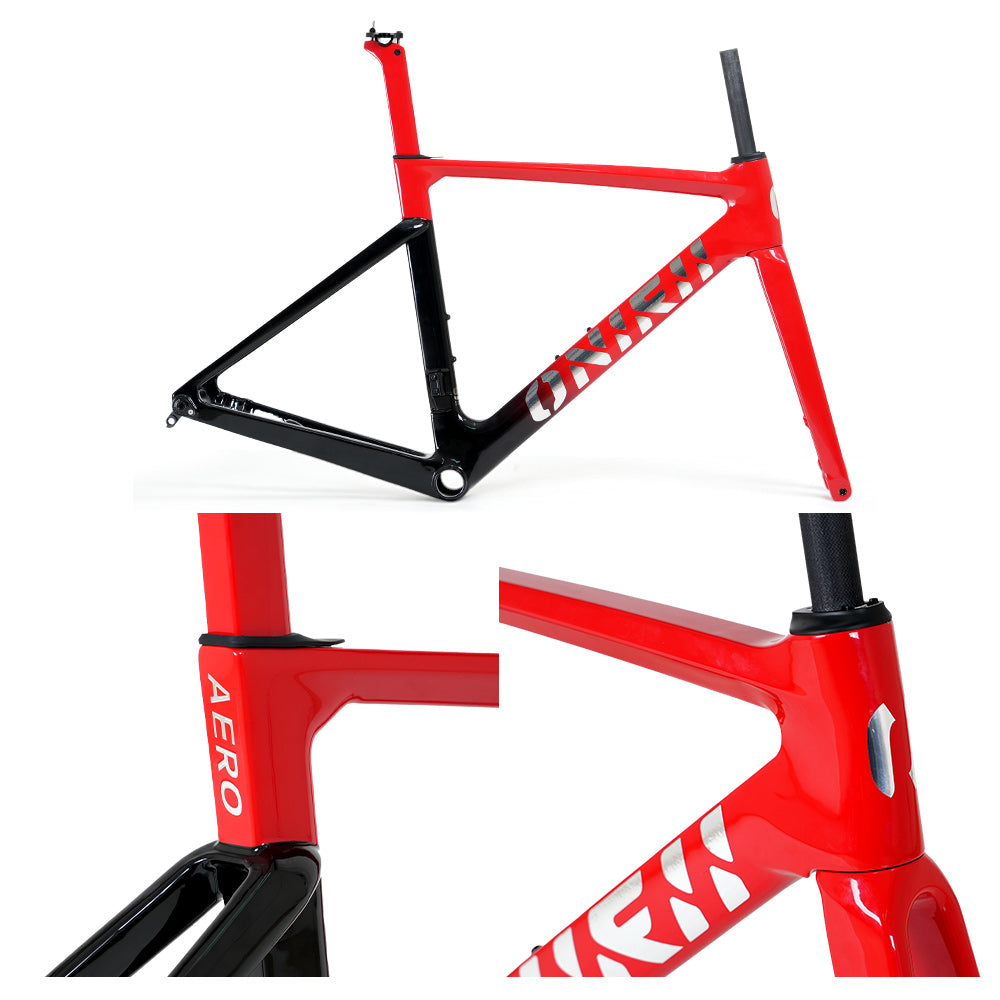

We control every detail of the frame to the best

One-piece handlebar Specifications

360x80mm,360x90mm,360x100mm

380x80mm,380x90mm,380x100mm,380x110mm,380x120mm

400x90mm,400x100mm,400x110mm,400x120mm

420x110mm,420x120mm
Reference weight: 400x100mm 330g

If you need AERO carbon fiber handlebar, please contact customer service to buy, the handlebar price is 100USD.

Focus on race performance
ONIRII design team keeps close contact with many professional riders at home and abroad, focusing on product feedback and listening to professional riders' opinions to continuously improve the product

Mongolia Fei Rui Intercontinental Team

Jingteng-ONIRII Team

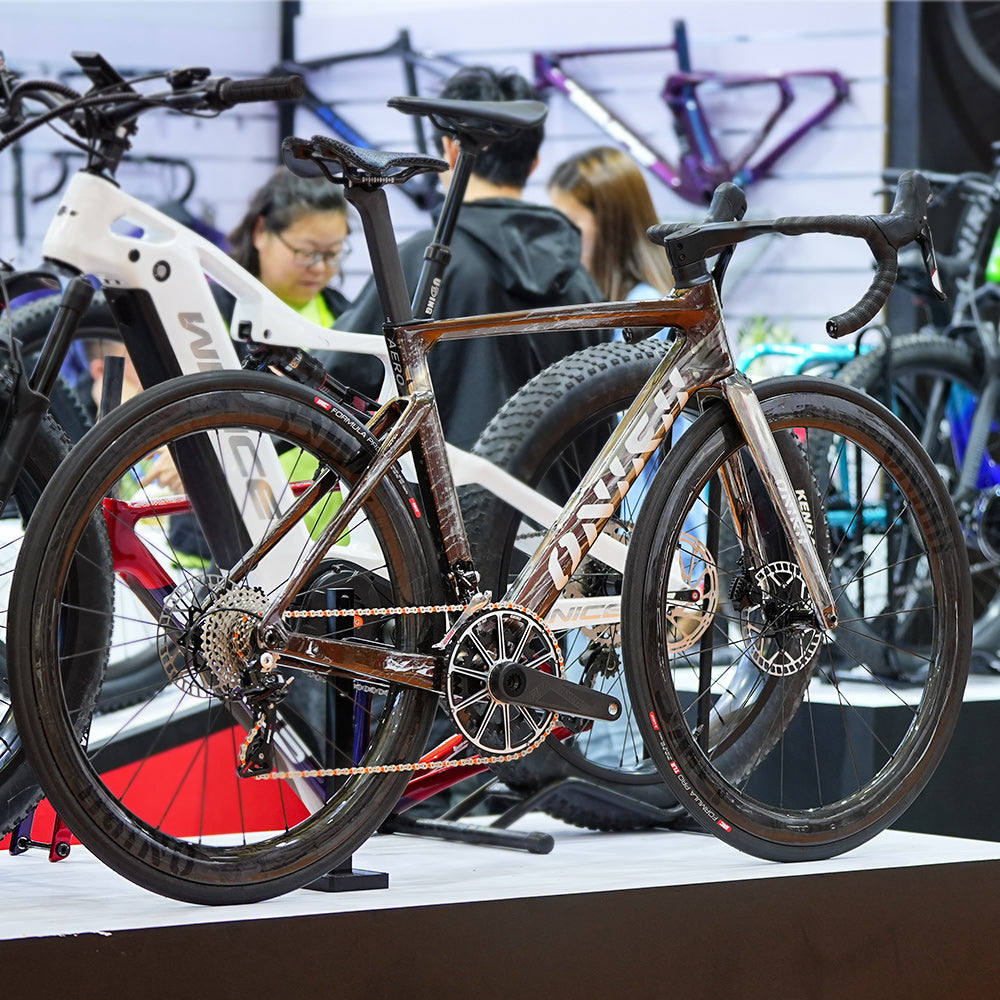

2023 Shanghai International Bike Exhibition

Daily Riding

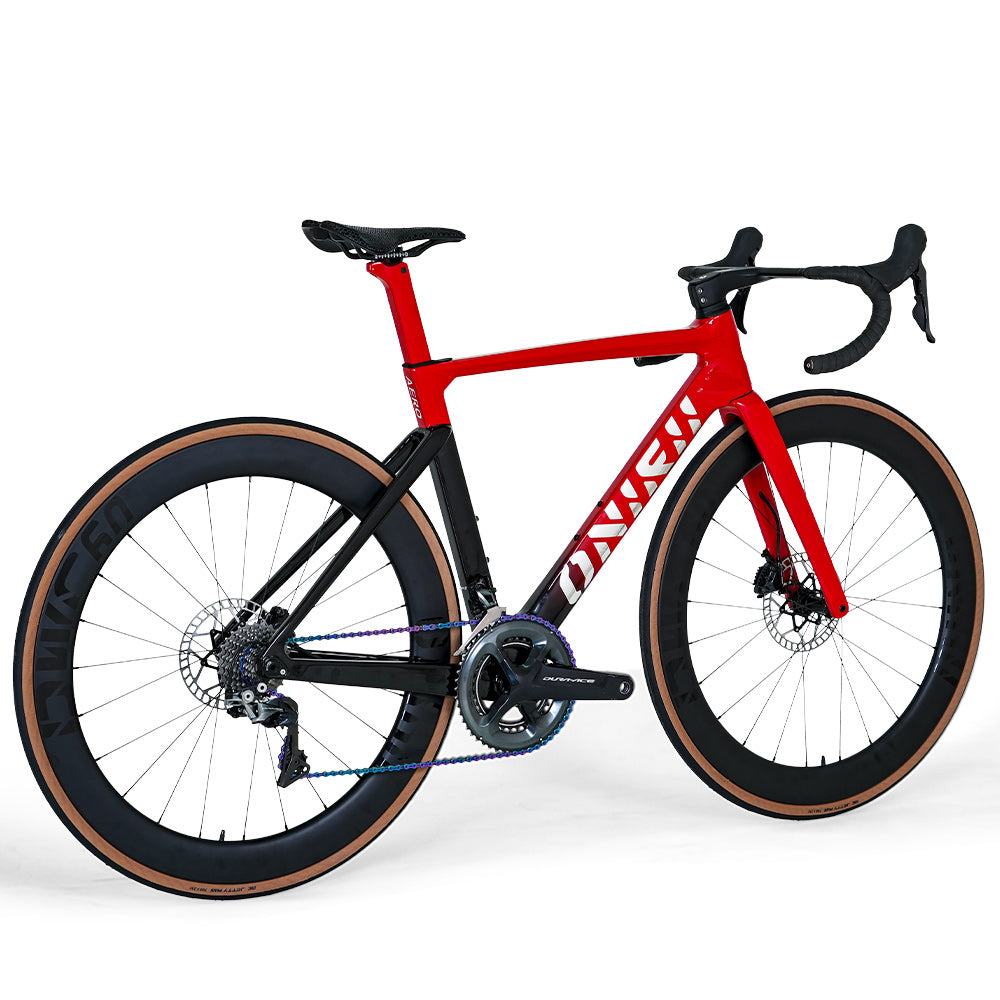

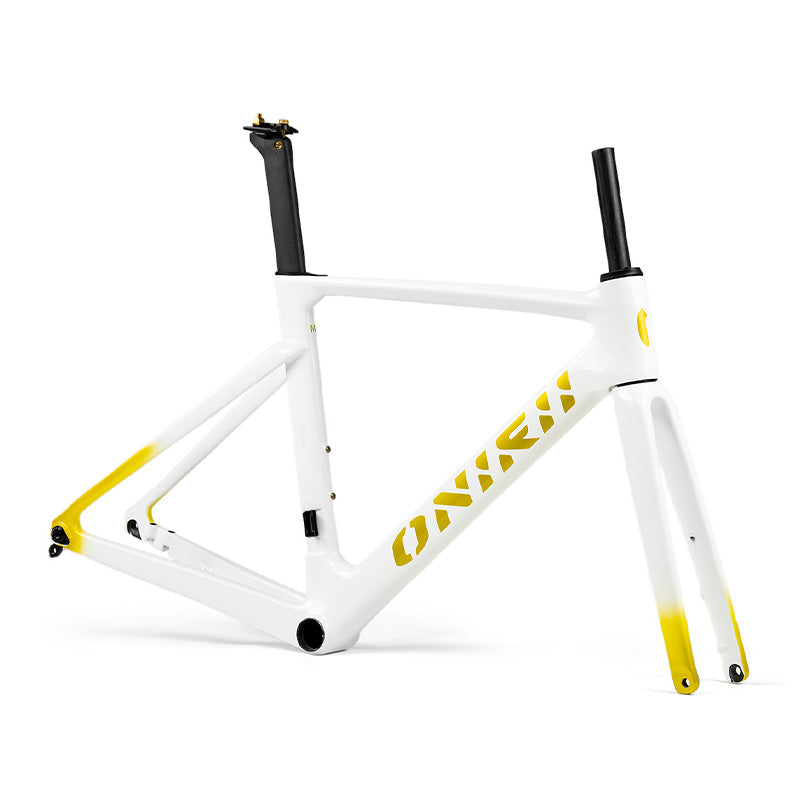

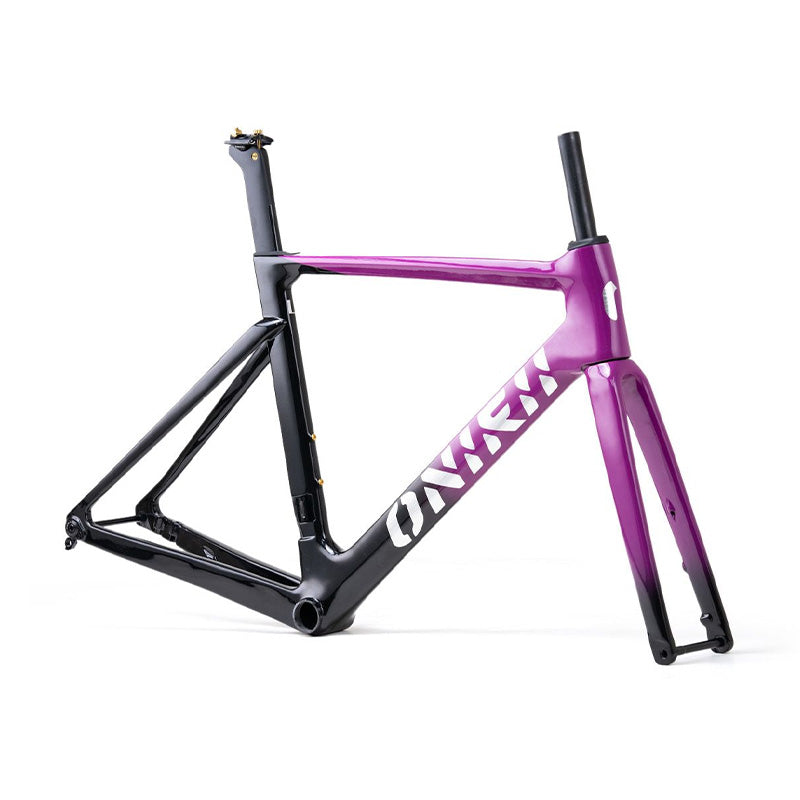

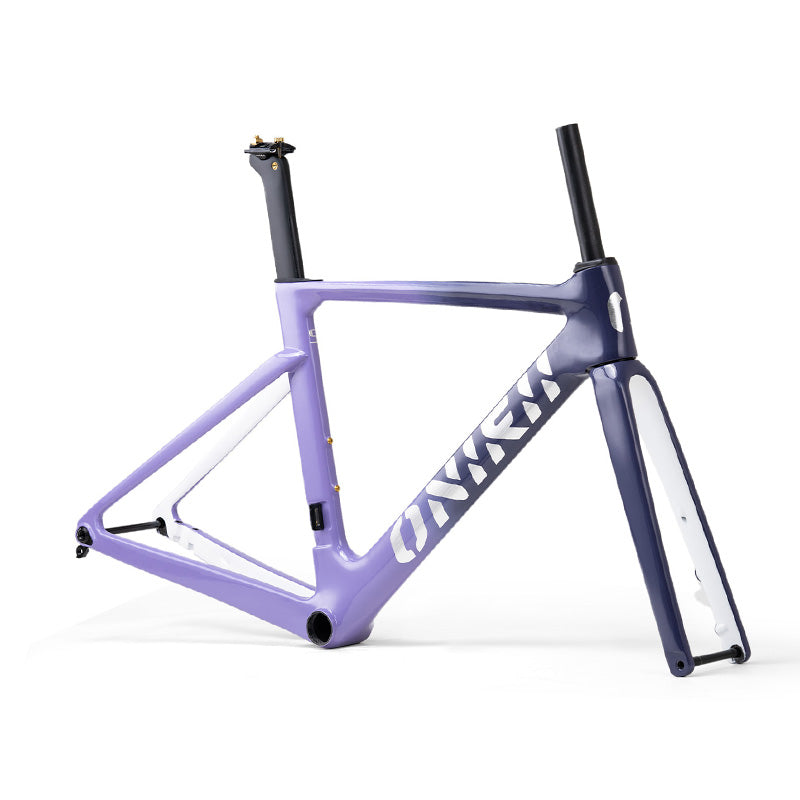

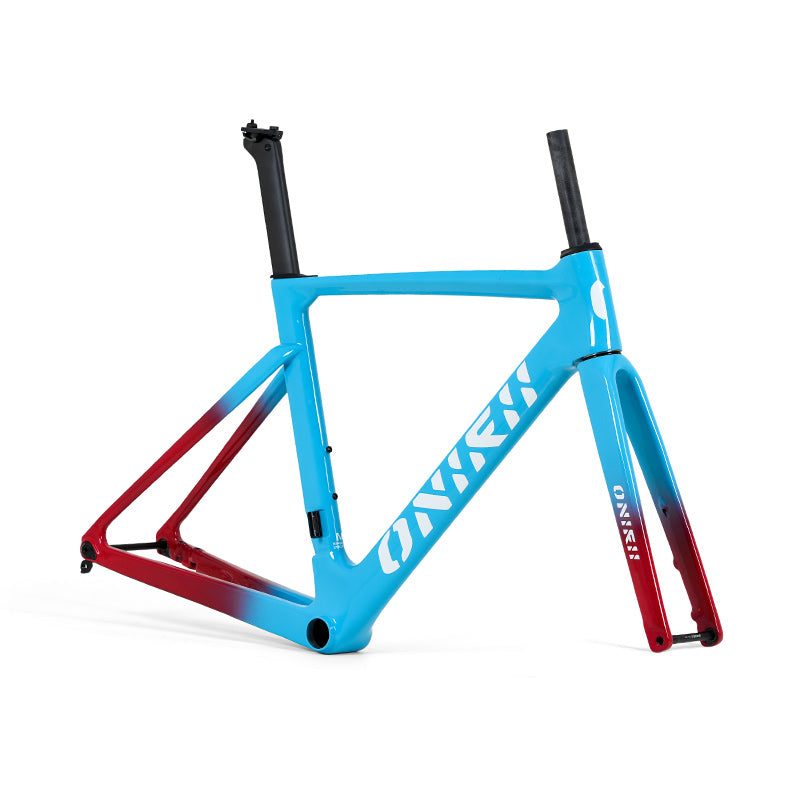

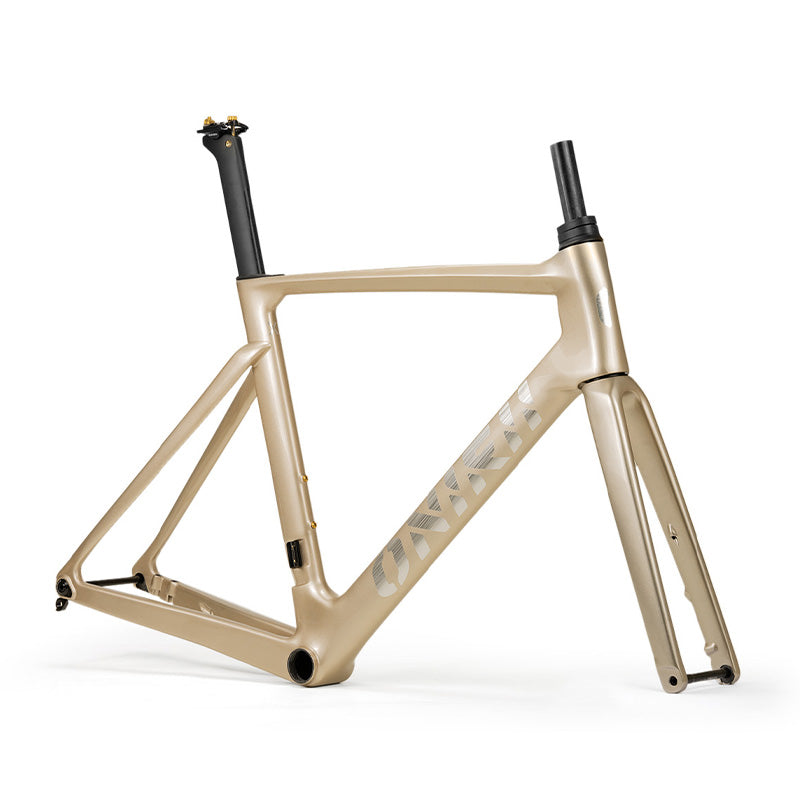

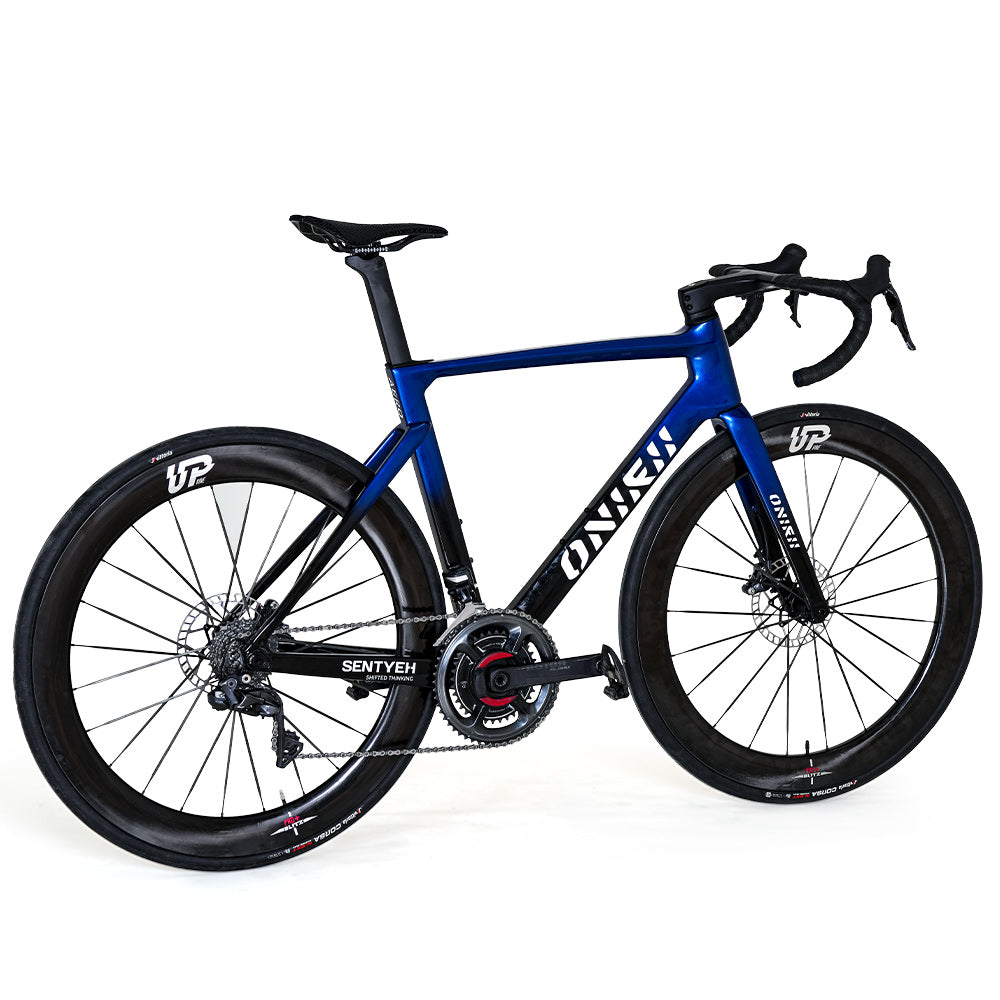

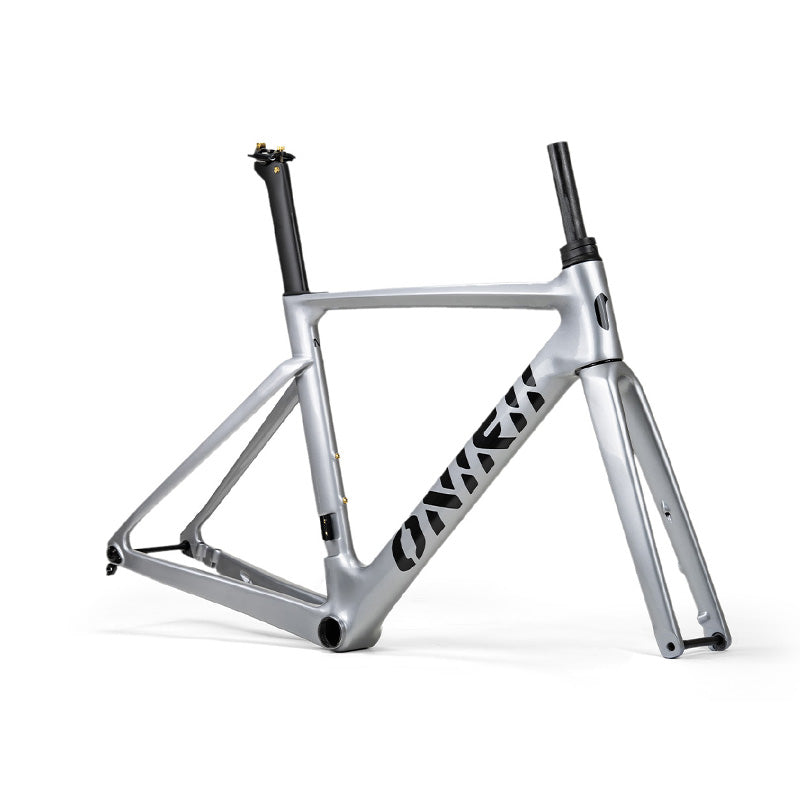

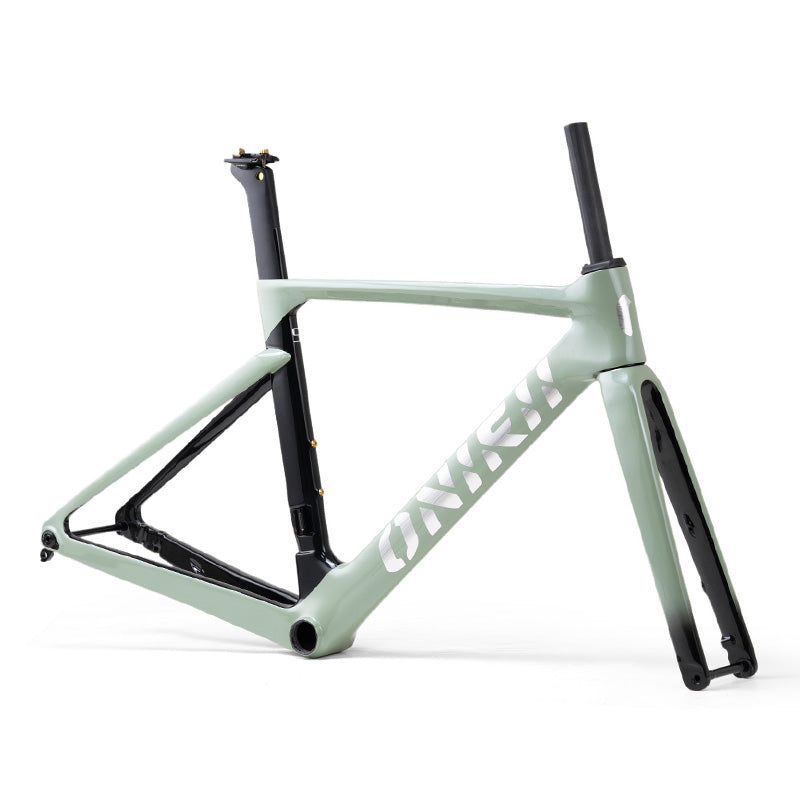

Product real shot

About after-sales:
1, warranty parts (frame, front fork, seatpost, handlebar, crankset, wheelset, saddle, brake,), the above parts are non-human damage enjoy a one-year warranty, frame warranty follow the factory warranty time.
2, the bike riding process will produce some parts of the wear and tear, the following parts are not covered by the warranty (inner and outer tires, cassette, chain, handlebar tape, brake block / brake pads, pedals, wire core wire tube, the whole bike bearings).
