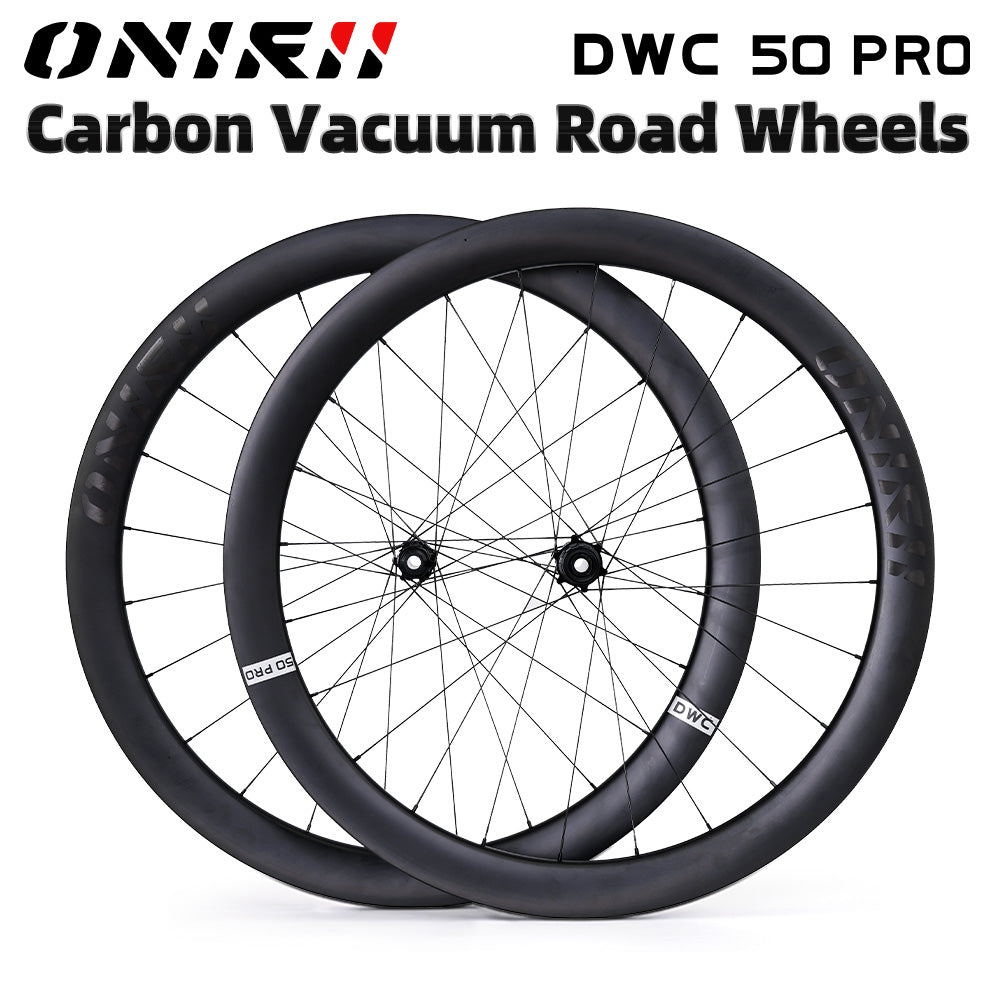

ONIRII DWC 50 PRO Ultra-Light Carbon Fiber Wheelset, 24H, 700c, 36T, Tubeless-Ready, for Road Bikes

Brand: ONIRII

Material: carbon

Spokes: pillar 2015

Holes: 24H front, 24H rear

Model: DWC 50 pro

Size: 700C

Inside rim width:21.4mm

Outer rim width: 28mm

Rim height:50mm

Wheelset weight(a pair):1441g

Number of Rattles:36T

Compatible with cassette body: HG

Open gear :12*100mm  12*142mm

Rim specifications: open with hooked edge

Rim material: carbon fiber

Suggested tire pressure: Refer to the outer tire marked tire pressure

Applicable bikes:Road  bikes

Hand knitting

Hand knitted wheelset, more than 3 times rolling tension release, simulating the wheel tension under normal riding road conditions

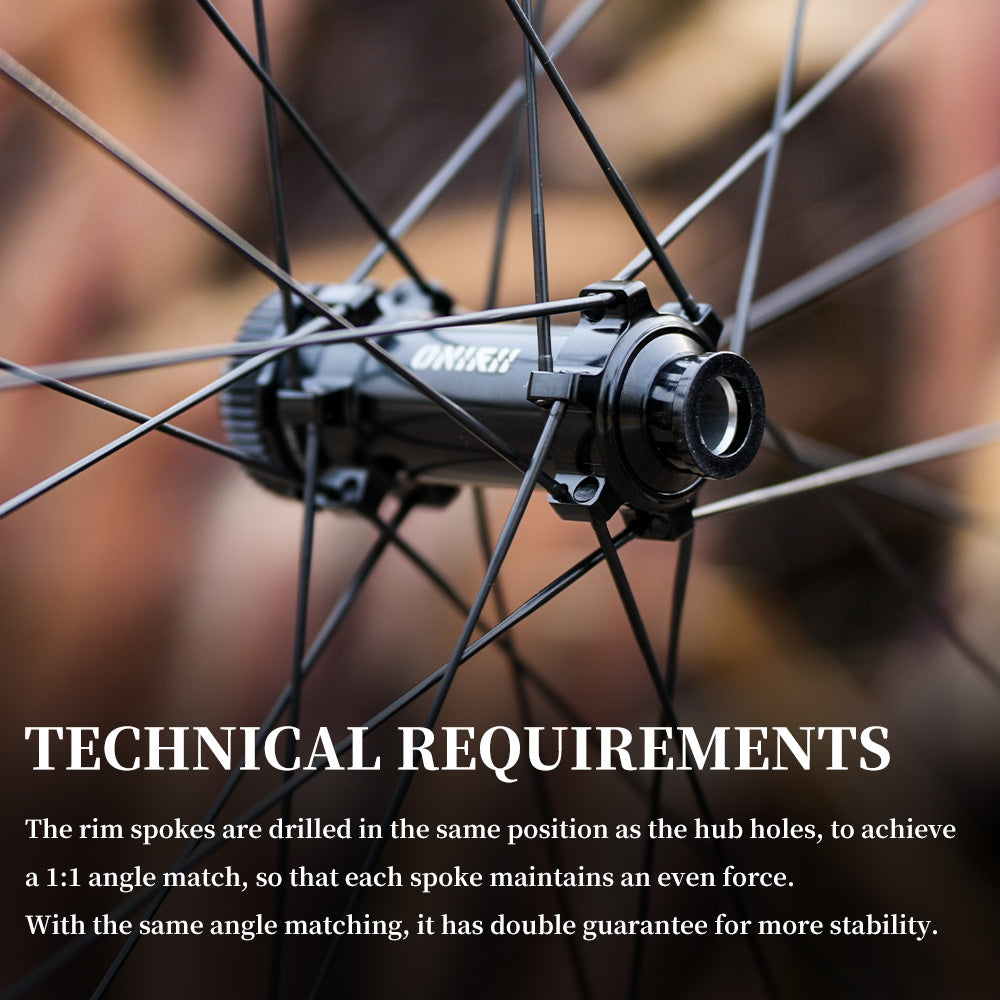

Technical requirements

Rim spokes drilling position and hub opening consistent, to achieve 1:1 angle match. Make each spoke keep even force.

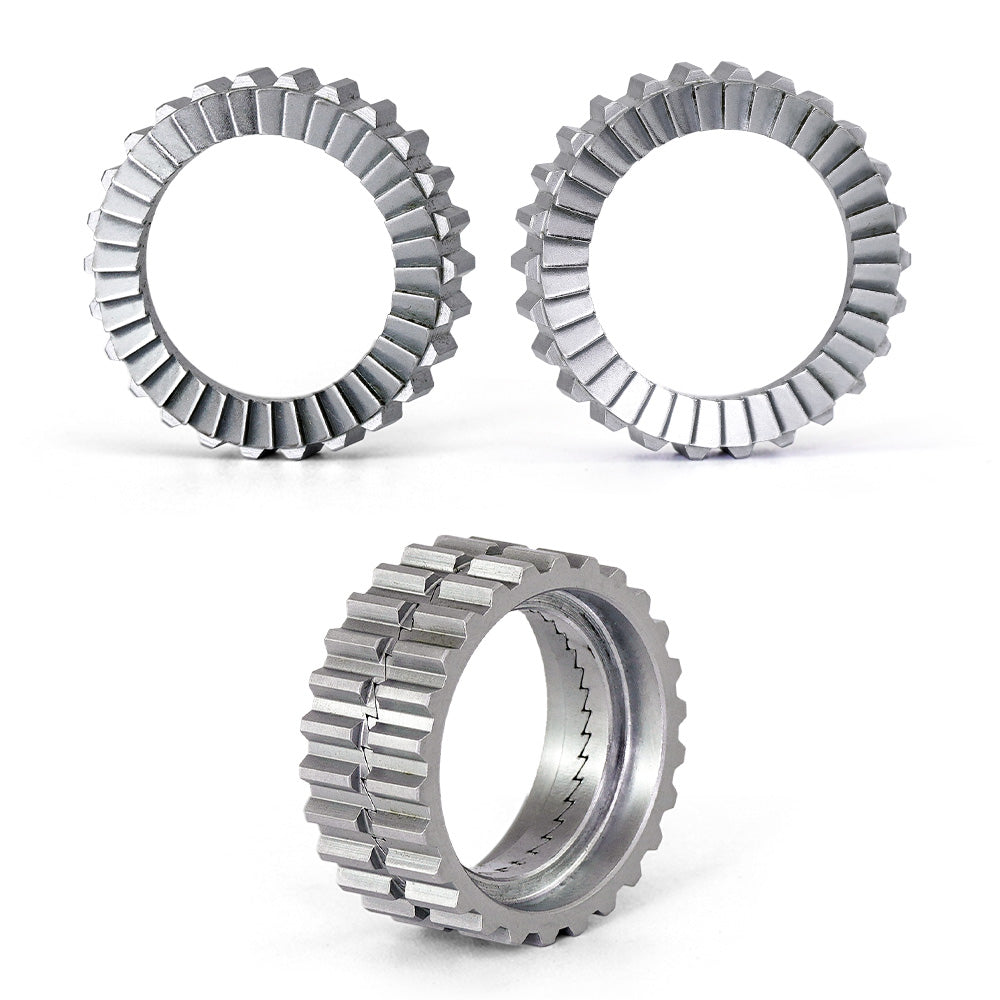

Dual-Action Planetary Ratchet

This model features a 36-tooth dual-action planetary ratchet, whose structural stability has received unanimous praise from cyclists.

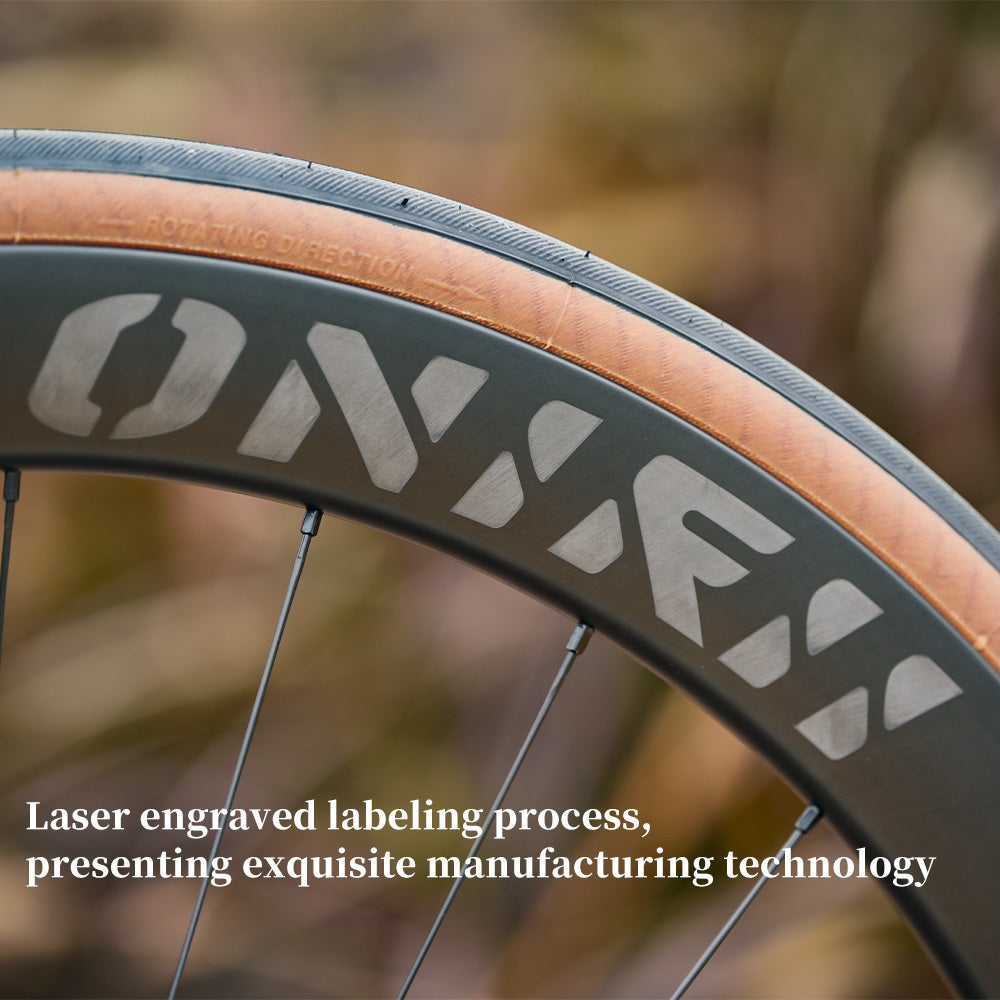

Radium Engraving: Showcasing Exquisite Craftsmanship

1:1 Cross-Ply Lacing

The front and rear wheels are laced using a 1:1 cross-ply pattern, which enhances the wheel set’s resistance to forward and lateral forces as well as torsional stress. This ensures stable load distribution during cornering and on bumpy roads, while also improving the wheel set’s overall strength.

Rim Data

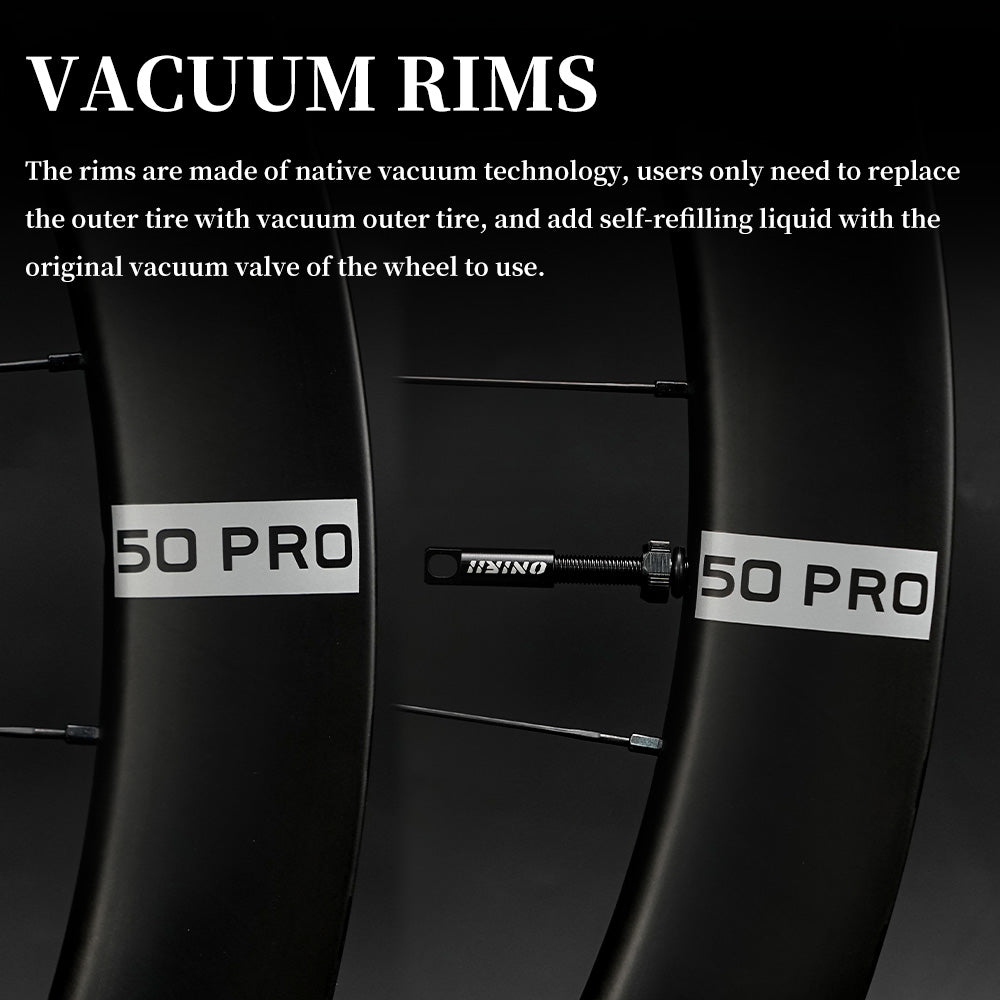

Tubeless-Ready Rims

These rims are manufactured using tubeless-ready technology. To use them, simply replace the standard tire with a tubeless tire, attach the tubeless valve that came with the wheel set, and add the self-sealing fluid.

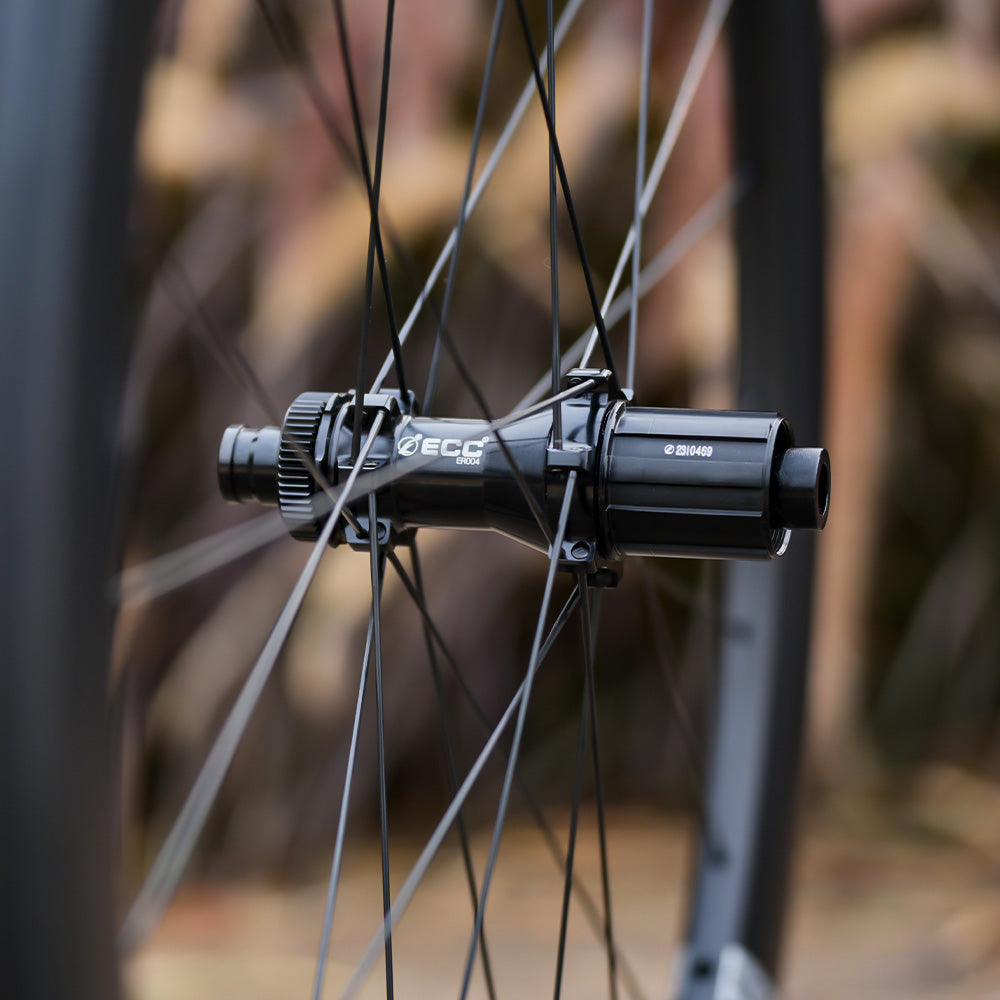

ER004 hub

Brand :ECC/ONIRII

Ratchet tooth number:36T

End gear drive: unidirectional drive

Hub material: A6061 Quality aluminum alloy

Number of holes: 24H-24H

Hub opening: 12x100mm 12x142mm

Number of bearings: front 2 back 4 bearings

Bearing material: Ceramic

Tower base:HG

 Spoke braid: 1:1 even hole

Brake mount: Centerlock

Spoke Material: CRMNTI

Spoke Compatibility: Straight-pull 1.5–2.0

Grade: Competition-grade

Hub Weight: Front 93 g, Rear 230 g

Bearing Brand: S$S Bearings, P5 Grade

Bearing Material: Steel

Hub Lacing Pattern: Cross-straight-pull

Cassette body HG

After-sales:

1, normal use of the wheelset warranty of 2 years (excluding the bearing part)

2, such as impact, crash, man-made reasons for damage to the wheelset will provide paid after-sales

Special tips:

1, the wheelset use process, please set the tire pressure according to weight and use scenario reasonable [Refer to the outer tire marked tire pressure].

2,Tire installation process should try to avoid using steel pry bar, or its use of other tools that may damage the rim to install tires.

3,Riding process encounter sharp or right angle steps, potholes should be slowed down to release force through, otherwise it may lead to wear tire damage wheelset.

4,The wheelset should be cleaned, serviced and maintained regularly during the use of the wheelset to maintain the normal use and safety of the wheelset.

5,Do not exceed the wheelset strength tolerance range.
