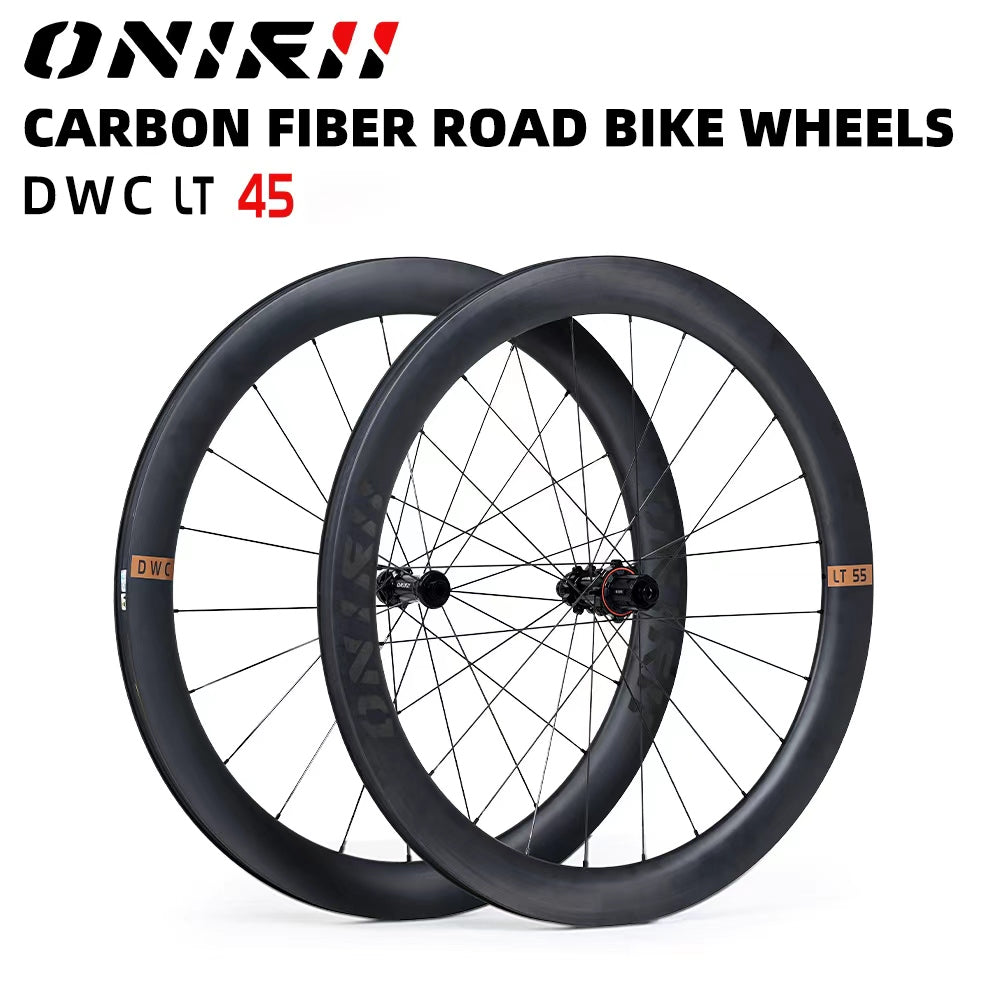

ONIRII DWC LT Road Bike Carbon Wheel 700C Vacuum Front 21 Holes Rear 24 Holes 12x100mm 12x142mm for HG XDR Cassette Body for Road Bicycle
ONIRII DWC LT Road Bike Carbon Wheel 700C Vacuum Front 21 Holes Rear 24 Holes 12x100mm 12x142mm for HG XDR Cassette Body for Road Bicycle
Couldn't load pickup availability
Brand: ONIRII
Material: carbon
Spokes: SAPIM CX-RAY
Holes: 21H front, 24H rear
Model: DWC LT
Size: 700C
Inside rim width:22mm
Outer rim width: 28mm
Rim height:45mm
Wheelset weight(a pair):1329g
Number of Rattles:150T
Hubs:TR006
Compatible with cassette body: HG,XDR
Open gear :12*100mm 12*142mm
Rim specifications: open with hooked edge
Rim material: TR007 carbon fiber + special materials
Suggested tire pressure: Refer to the outer tire marked tire pressure
Applicable bikes:Road bikes
Balance

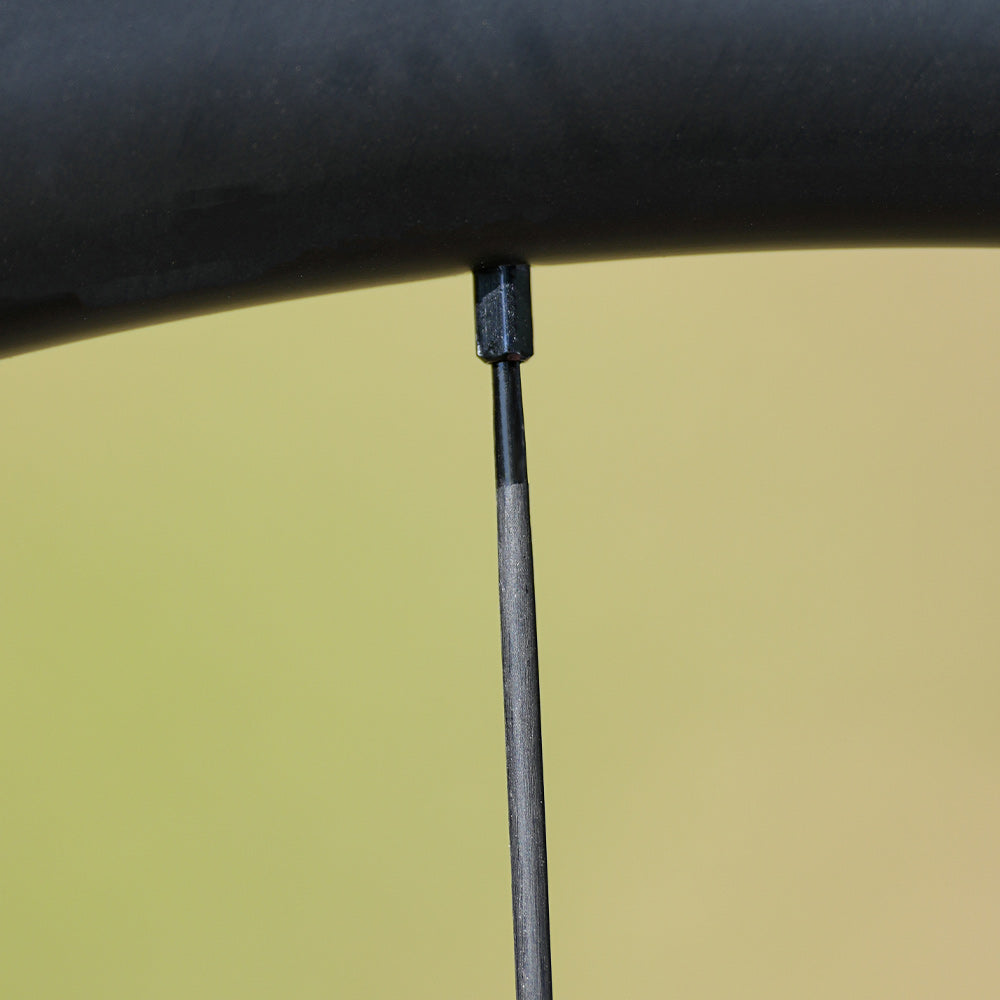

With the new carbon fiber spokes, the weight of the wheel is reduced while the rigidity is improved, bringing a more direct riding power experience. The point is that this new carbon fiber spokes support native vacuum, and the high rigidity of carbon spokes combined with the comfort of vacuum tires makes this wheel balanced

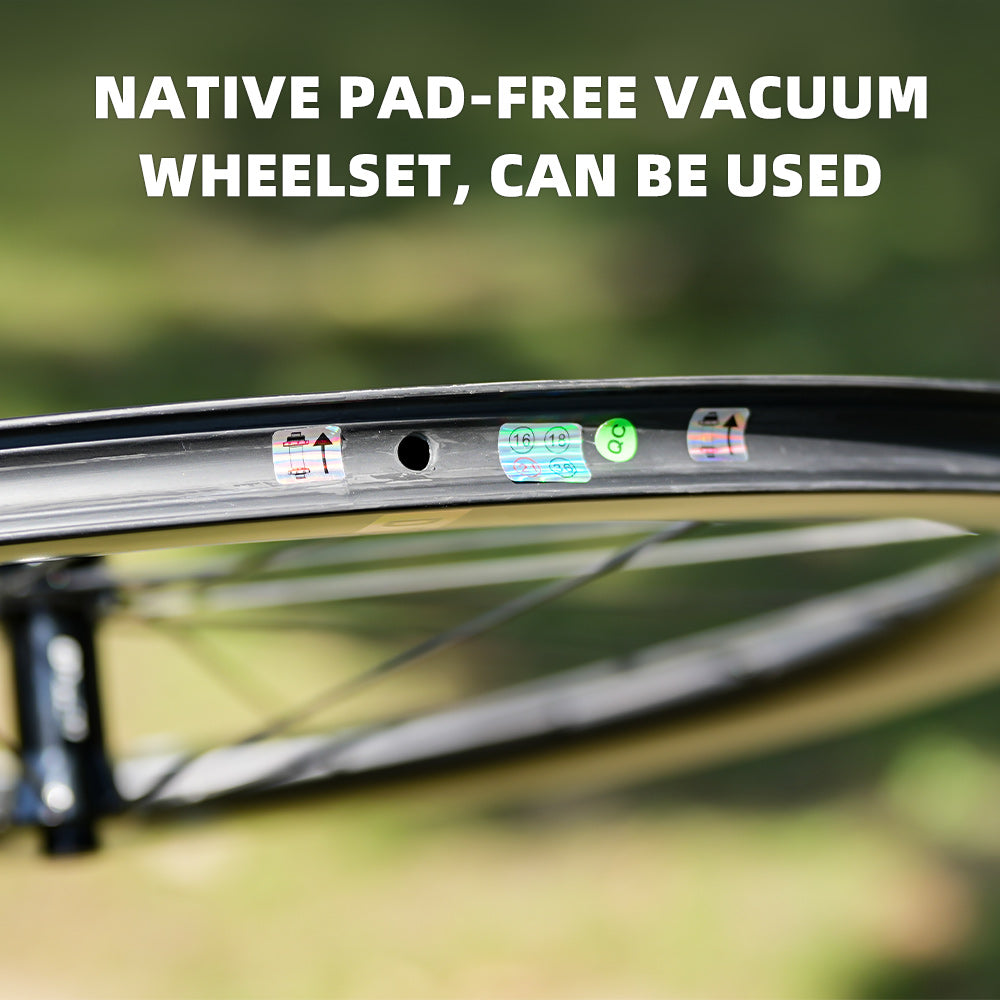

Tubeless-ready wheelsets for easier installation

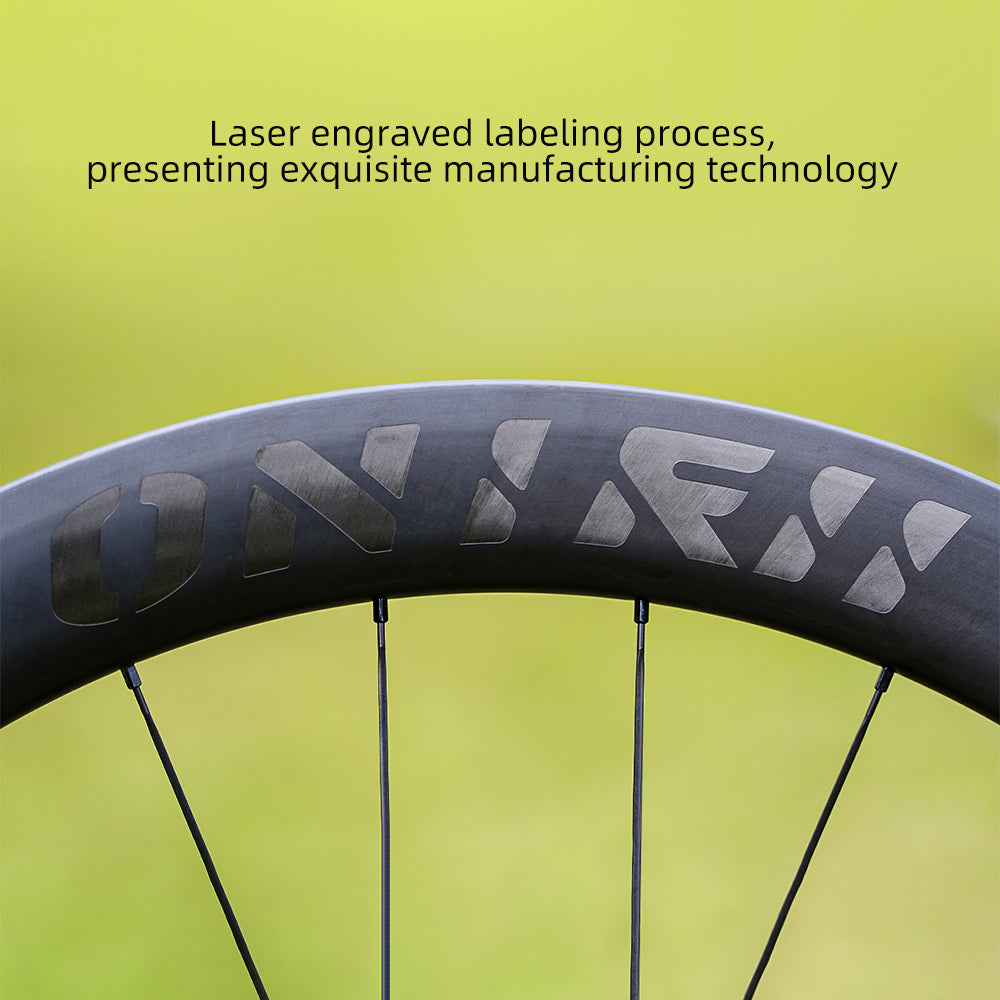

Laser engraved labeling process, presenting exquisite manufacturing technology
Hand knitting
Hand knitted wheelset, more than 3 times rolling tension release, simulating the wheel tension under normal riding road conditions
Technical requirements
Rim spokes drilling position and hub opening consistent, to achieve 1:1 angle match. Make each spoke keep even force.
Fast
Adopting the 150T hub jointly developed by ECC and ONIRII, the dense gear ratio inside the planetary ratchet hub and the fast bite make the power generation without delay. Whether it is the sudden power of breakout or chasing, the wheel's reaction is one step faster than others to get a head start
150T
Five years of research and development culminated in the 150T large planetary ratchet structure Advantage 1: 150T bite area provides more direct power feeling Advantage 2: The dense 150T tooth arrangement makes the empty section travel smaller, bringing a more direct acceleration experience. Advantage 3: The mellow 150T ratchet sound brings a different audio-visual experience Advantage 4: The monolithic vibration bite method makes the 150T ratchet responsive and fast. Advantage 5: Quickly removable test cassette body makes post-maintenance easier. Advantage 6: Ratchet tooth body adopts cold forging technology makes wear resistance and toughness increase. Advantage 7: The end gear surface adopts five-axis CNC high precision machining, to achieve the tooth surface 1:1 completely occluded state
Hand knitting
Hand knitted wheelset, more than 3 times rolling tension release, simulating the wheel tension under normal riding road conditions
Braiding method
The front and rear use a 2:1 crossover straight pull braid, with the drive side and non-drive side of the wheel being evenly stressed. Stable force performance in cornering and bumpy roads

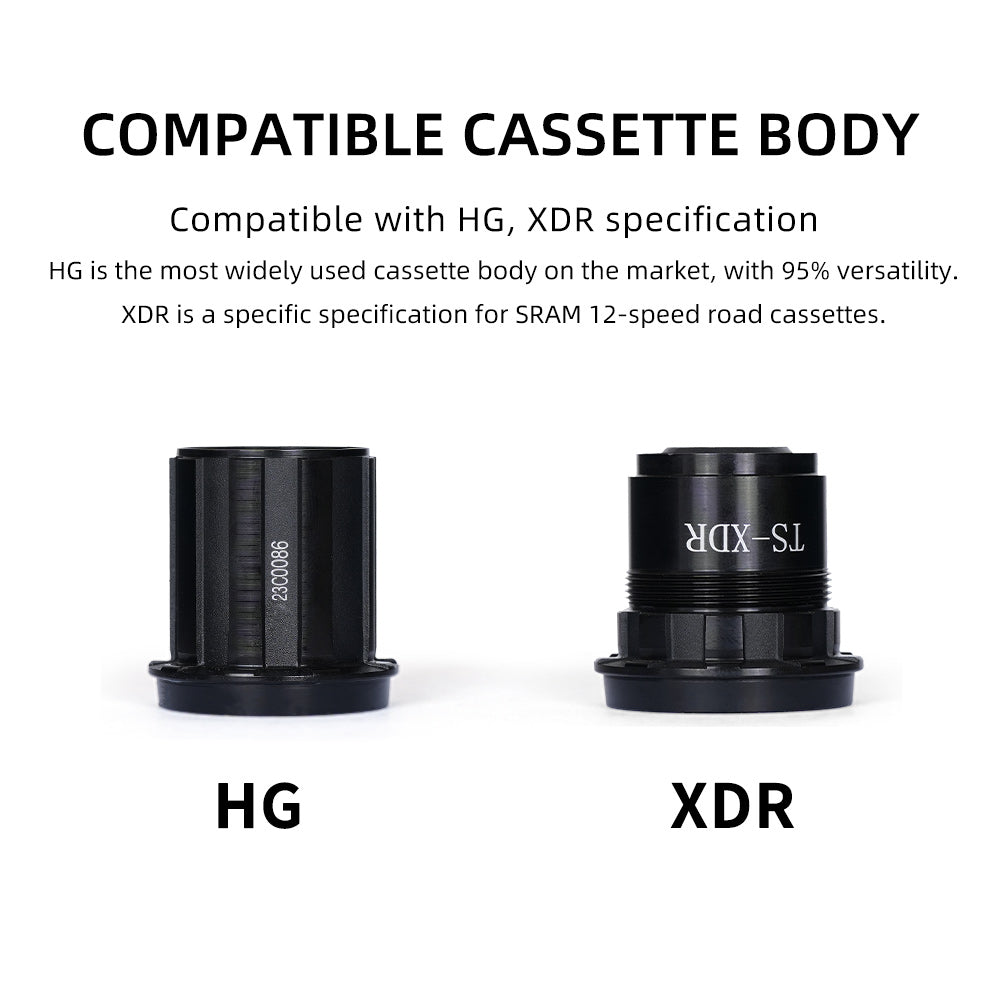

More Compatible
HG and XDR cassette body compatible specifications are provided HG cassette body specification is the most used road bike cassette body specification in the market. 95% versatility XDR cassette body is the SRAM 12-speed road cassette body for shifting freewheel.

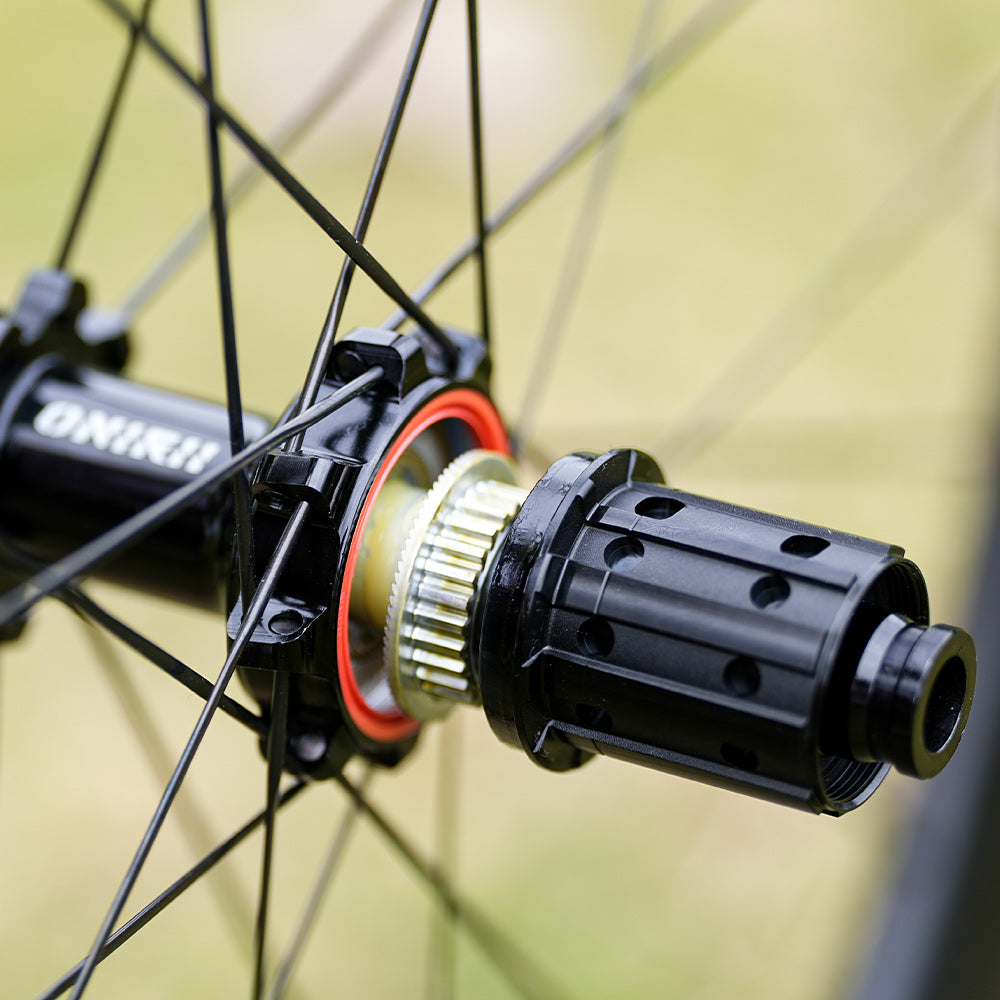

TR006 hub
Brand :ECC/ONIRII
Ratchet tooth number:150T
End gear drive: unidirectional drive
Hub material: A6061 Quality aluminum alloy
Number of holes: 21H-24H
Hub opening: 12x100mm 12x142mm
Number of bearings: front 2 back 4 bearings
Bearing material: Ceramic
Tower base:HG,XDR
Spoke braid: 2:1 even hole
Brake mount: Centerlock
After-sales:
1, normal use of the wheelset warranty of 2 years (excluding the bearing part)
2, such as impact, crash, man-made reasons for damage to the wheelset will provide paid after-sales
Special tips:
1, the wheelset use process, please set the tire pressure according to weight and use scenario reasonable [Refer to the outer tire marked tire pressure].
2,Tire installation process should try to avoid using steel pry bar, or its use of other tools that may damage the rim to install tires.
3,Riding process encounter sharp or right angle steps, potholes should be slowed down to release force through, otherwise it may lead to wear tire damage wheelset.
4,The wheelset should be cleaned, serviced and maintained regularly during the use of the wheelset to maintain the normal use and safety of the wheelset.
5,Do not exceed the wheelset strength tolerance range.
