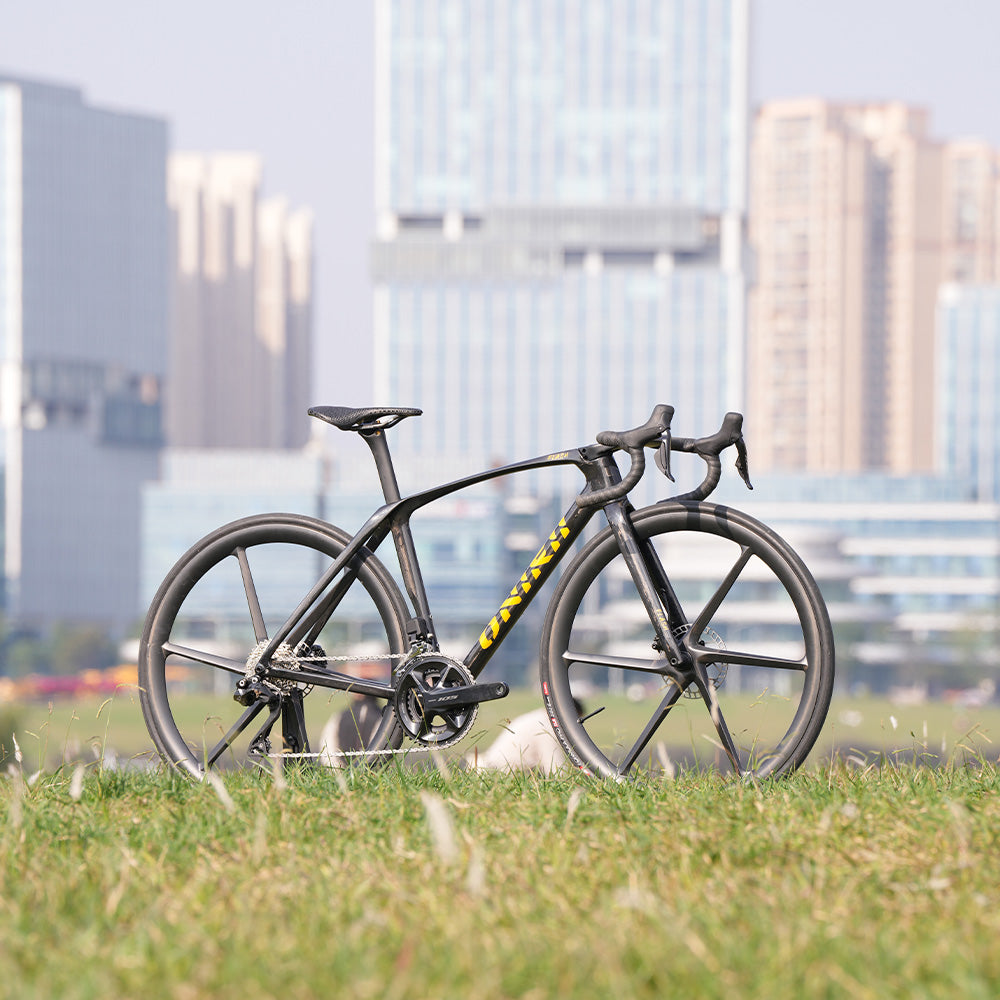

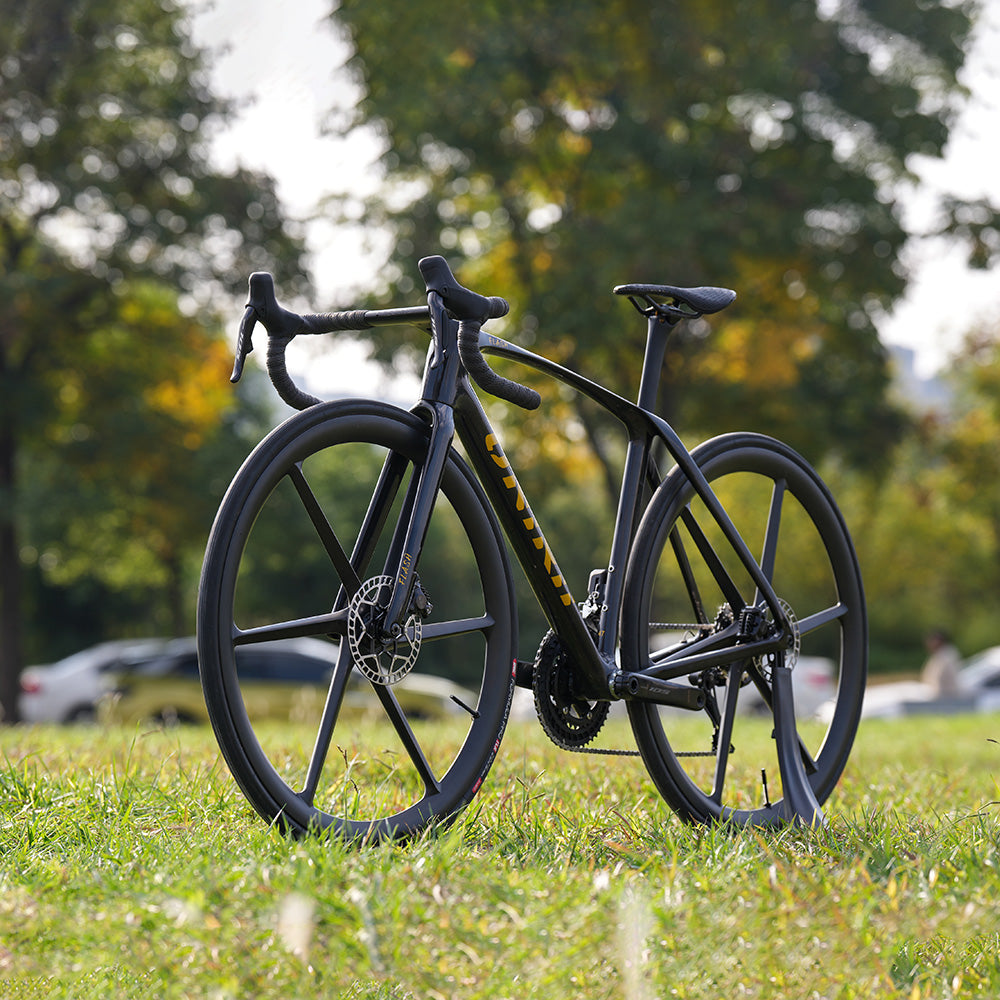

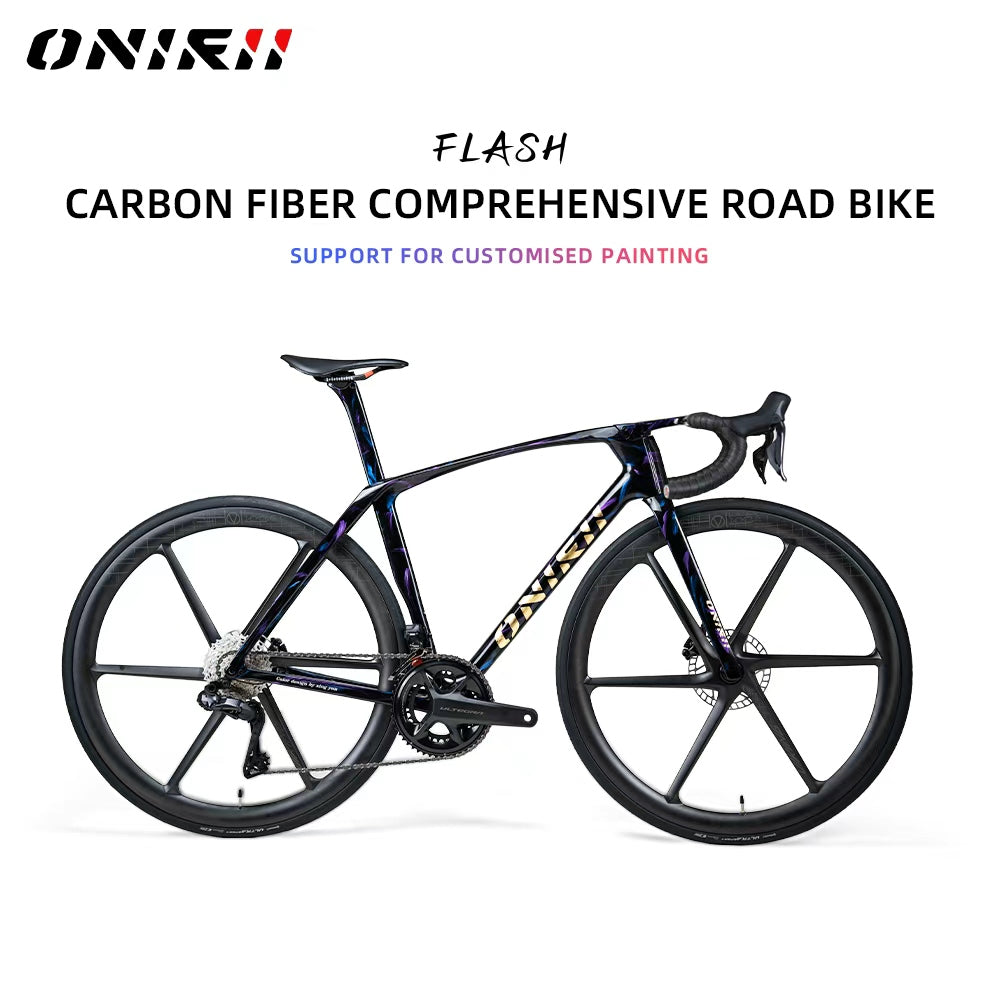

ONIRII FLASH Carbon Comprehensive Road Bike with Electronic Groupset 8170 7170 Di2 Handlebar Hydraulic Brake Hidden Cable Frame

Configure Details

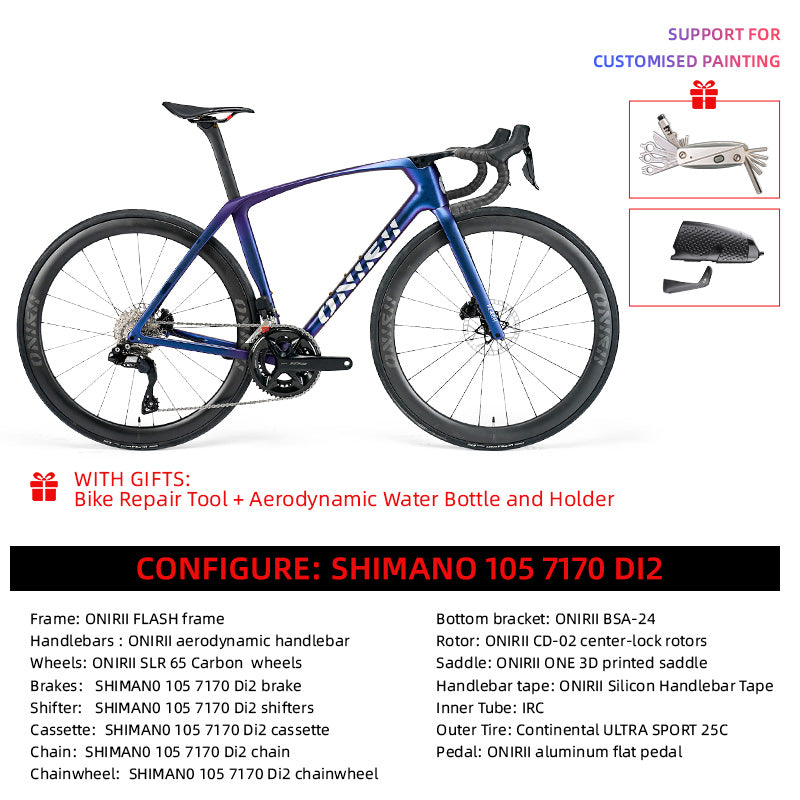

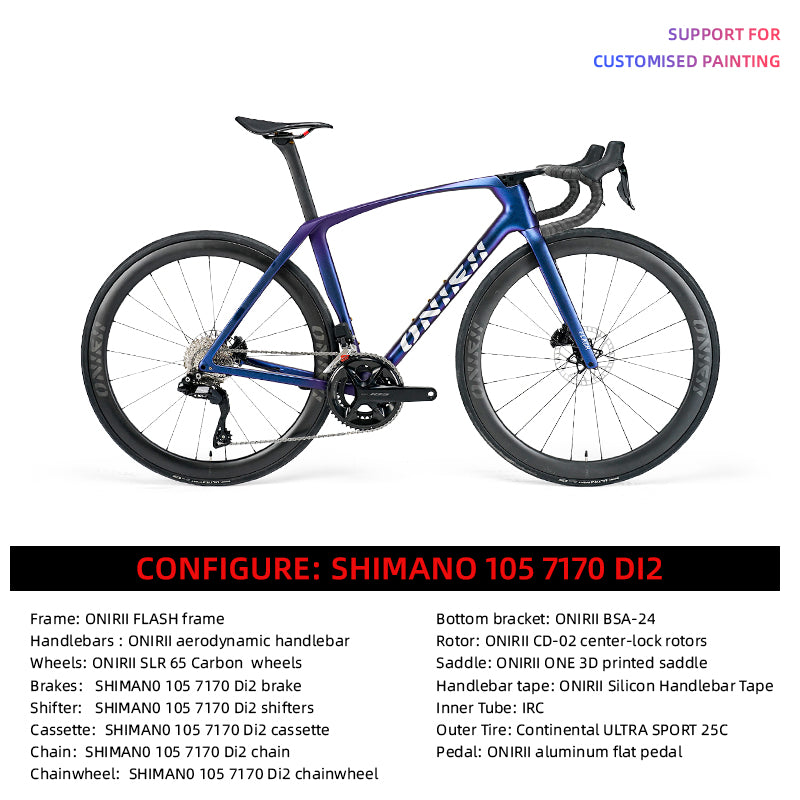

Configure 1

Frame: ONIRII FLASH frame
Handlebar : ONIRII aerodynamic handlebar
Wheels: SLR 65 carbon wheels
Brakes: SHIMAN0 105 7170 Di2 brake
Shifter:   SHIMAN0 105 7170 Di2 shifters
Cassette: SHIMAN0 105 7170 Di2 cassette
Chain: SHIMAN0 105 7170 Di2 chain
Chainwheel: SHIMAN0 105 7170 Di2 chainwheel
Bottom bracket: ONIRII BSA-24
Rotor: ONIRII CD-02 center-lock rotors
Saddle: ONIRII ONE 3D printed saddle
Handlebar tape: ONIRII Silicon Handlebar Tape
Inner Tube: IRC
Outer Tire: Continental ULTRA SPORT 25C
Pedal: ONIRII aluminum flat pedal

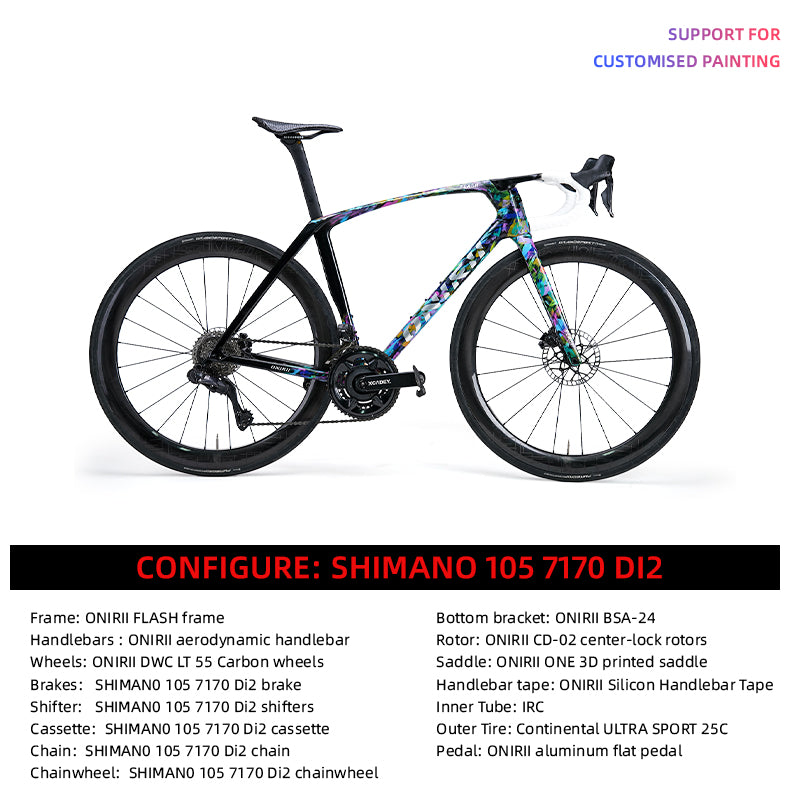

Configure 2
Frame: ONIRII FLASH frame
Handlebar : ONIRII aerodynamic handlebar
Wheels: DWC LT 55 carbon wheels
Brakes:   SHIMAN0 105 7170 Di2 brake
Shifter:   SHIMAN0 105 7170 Di2 shifters
Cassette: SHIMAN0 105 7170 Di2 cassette
Chain: SHIMAN0 105 7170 Di2 chain
Chainwheel: SHIMAN0 105 7170 Di2 chainwheel
Bottom bracket: ONIRII BSA-24
Rotor: ONIRII CD-02 center-lock rotors
Saddle: ONIRII ONE 3D printed saddle
Handlebar tape: ONIRII Silicon Handlebar Tape
Inner Tube: IRC
Outer Tire: Continental ULTRA SPORT 25C
Pedal: ONIRII aluminum flat pedal

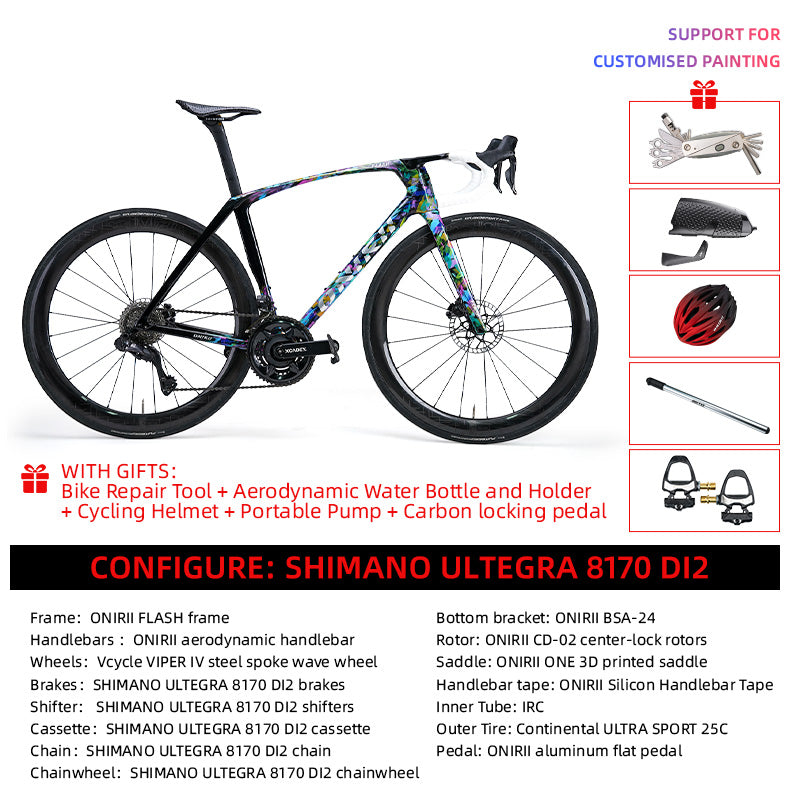

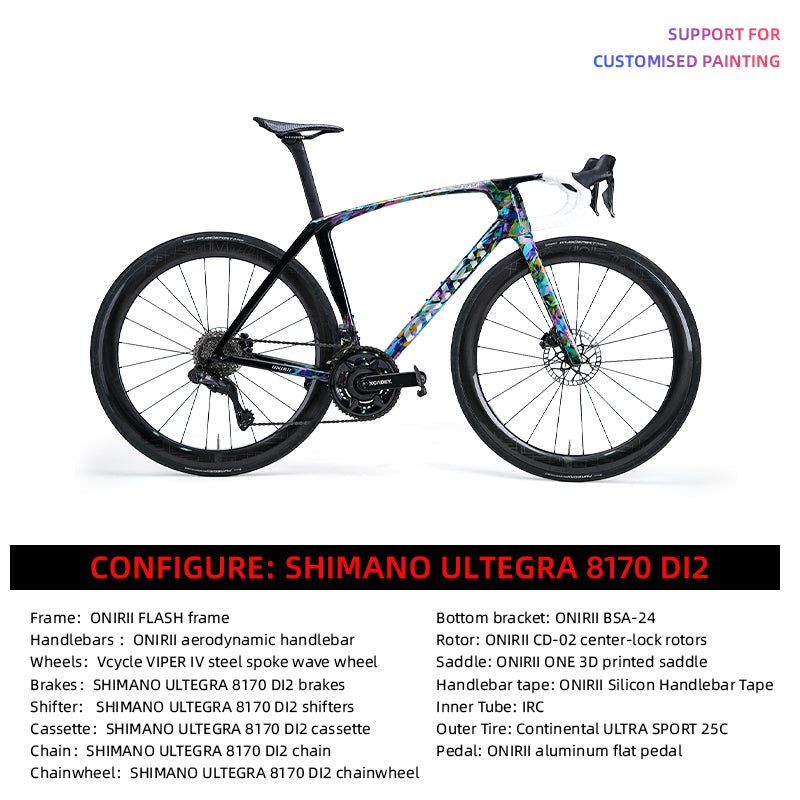

Configure 3
Frame: ONIRII FLASH frame
Handlebar : ONIRII aerodynamic handlebar
Wheels: VCYCLE VIPER  IV wave carbon wheels(steel spokes)
Brakes:  SHIMANO ULTEGRA 8170 DI2 brakes
Shifter: SHIMANO ULTEGRA 8170 DI2 shifters
Cassette: SHIMANO ULTEGRA 8170 DI2 cassette
Chain: SHIMANO ULTEGRA 8170 DI2 chain
Chainwheel: SHIMANO ULTEGRA 8170 DI2 chainwheel
Bottom bracket: ONIRII BSA-24
Rotor: ONIRII CD-02 center-lock rotors
Saddle: ONIRII ONE 3D printed saddle
Handlebar tape: ONIRII Silicon Handlebar Tape
Inner Tube: IRC
Outer Tire: Continental ULTRA SPORT 25C
Pedal: ONIRII aluminum flat pedal

What you need to do after placing an order

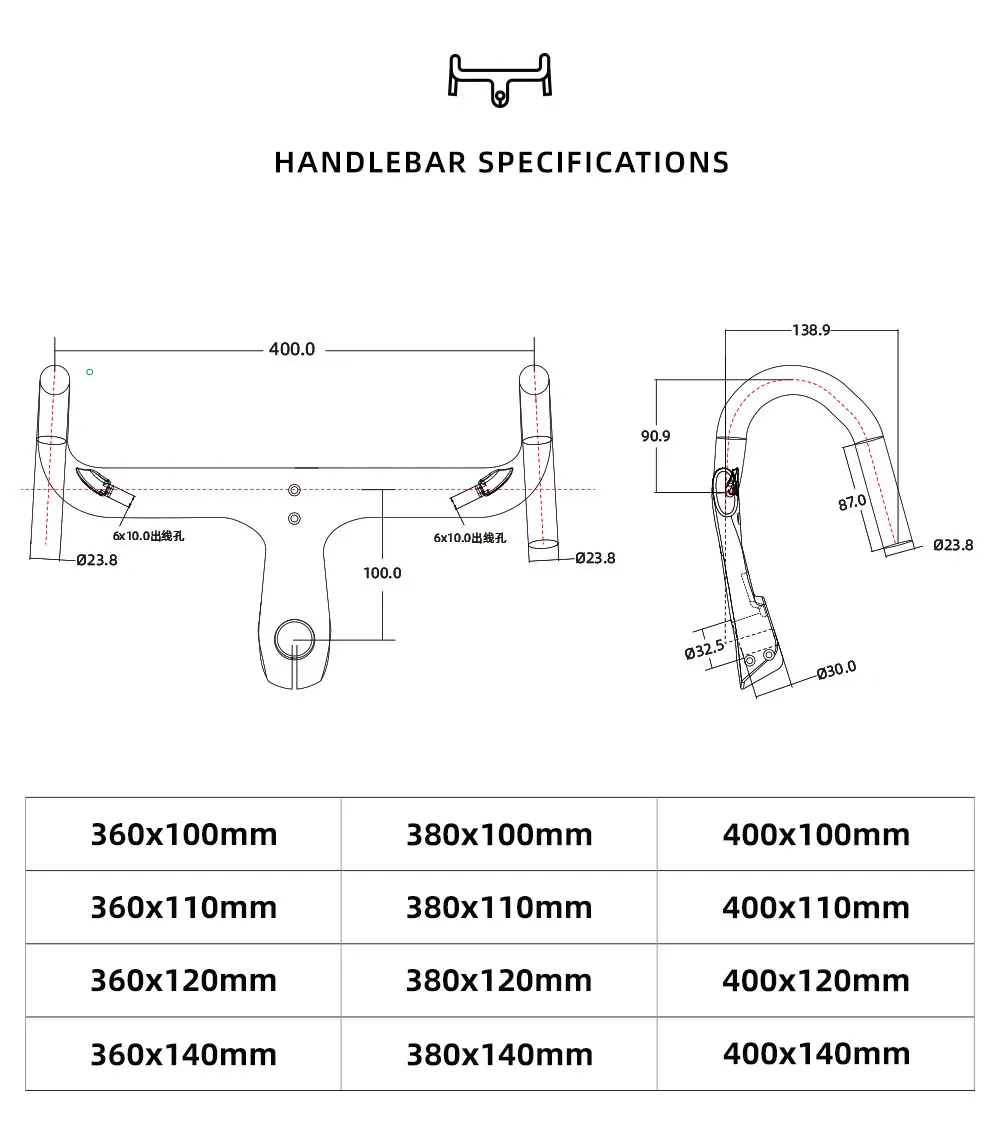

Tell us the handlebar specifications and frame painting and frame size you need, handlebar specifications refer to the details page

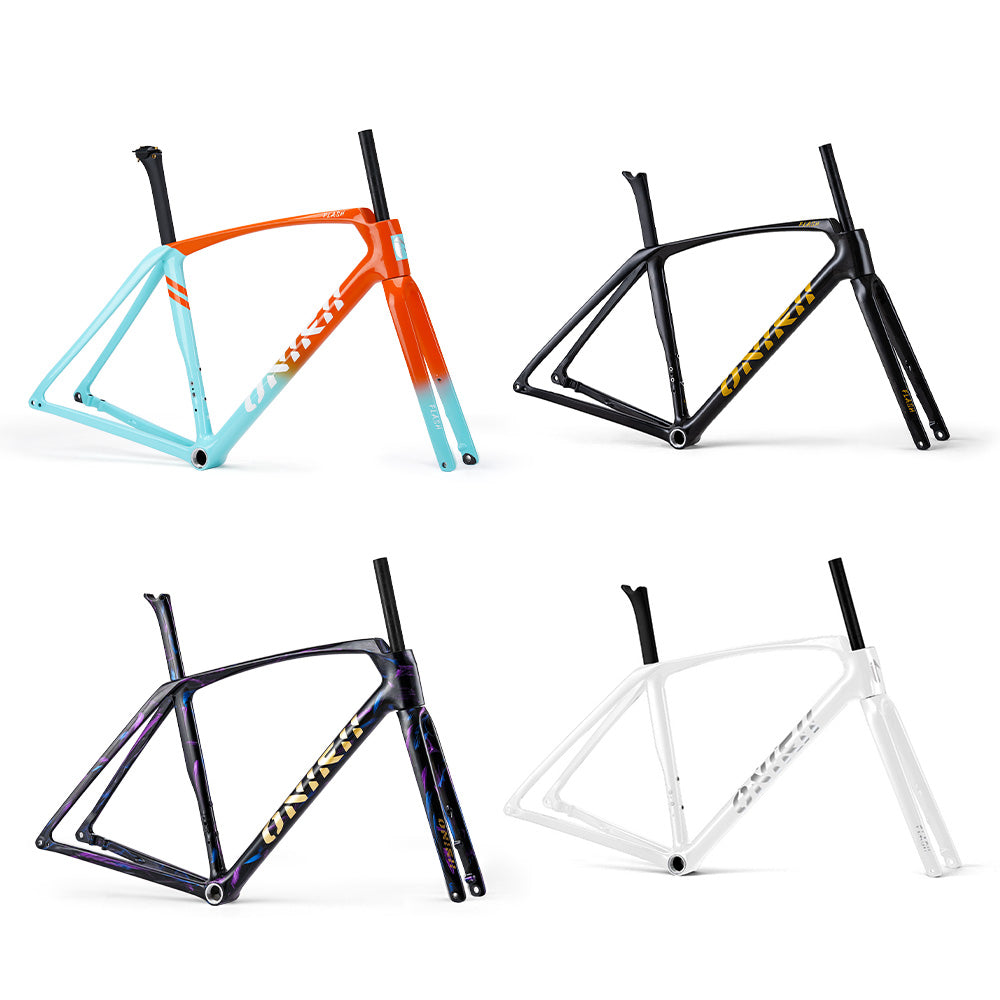

About Customization
√ Free custom one or two-color gradient spray, cut-off color painting
√ Free customized color for seat post (painting the seat post may cause it not to lock tightly)
√ 100% customized paint, no customization fee for up to 3 colors, 70 USD for each additional color over 3 colors.
√ Shipping can be arranged on the same day of ordering for stock frames, customized personal frames will take 15-35 days to be made

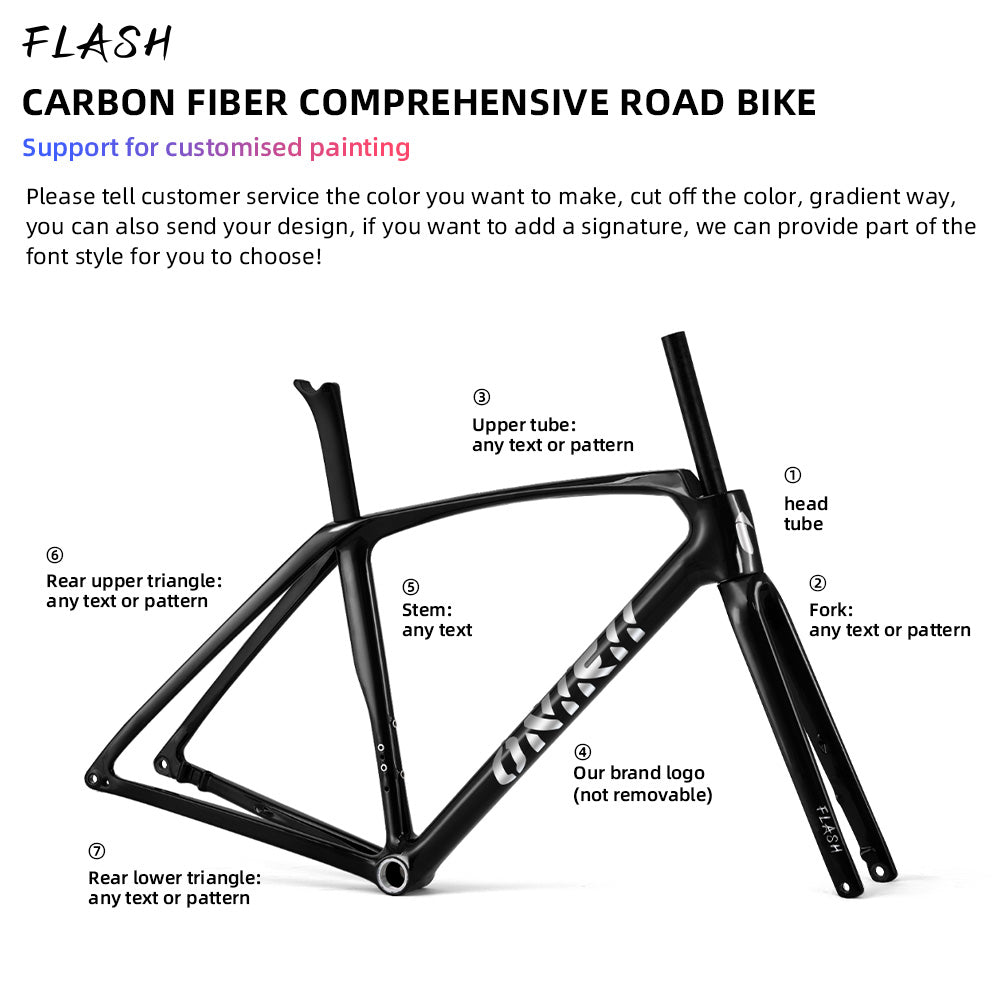

How to customize your painting
Please tell customer service the color you want to make, cut off the color, gradient way, you can also send your design, if you want to add a signature, we can provide part of the font style for you to choose!

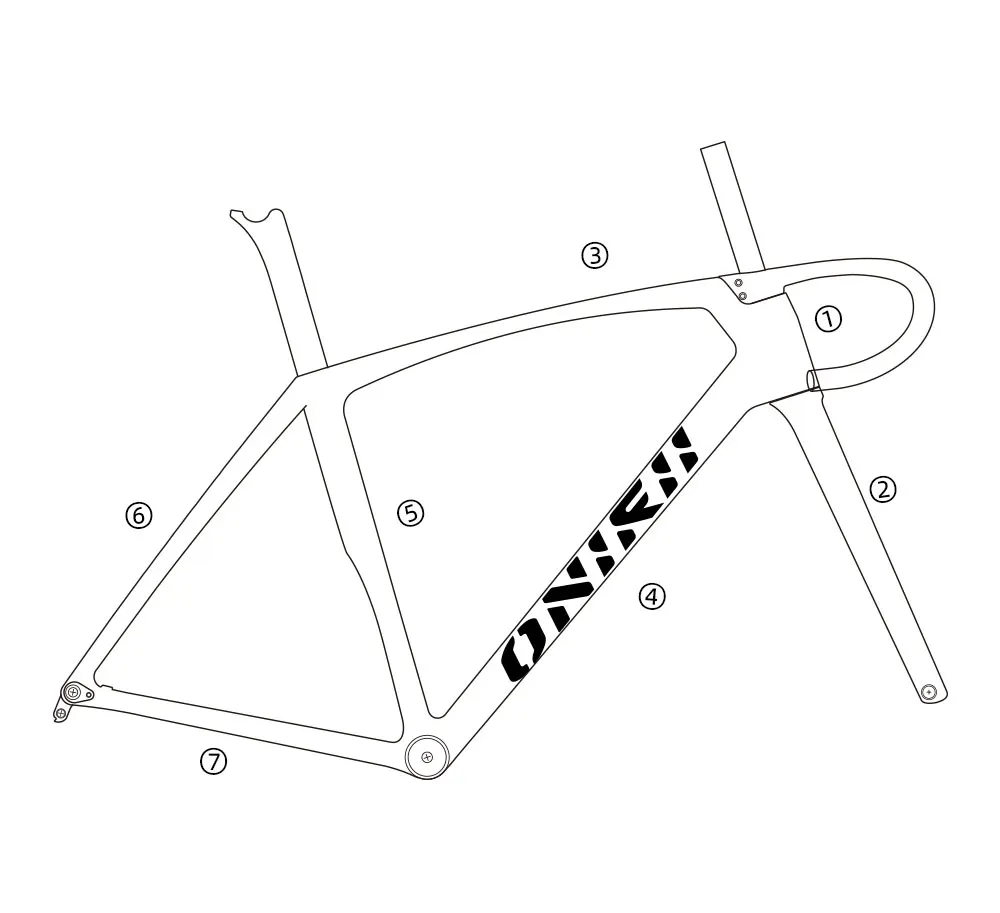

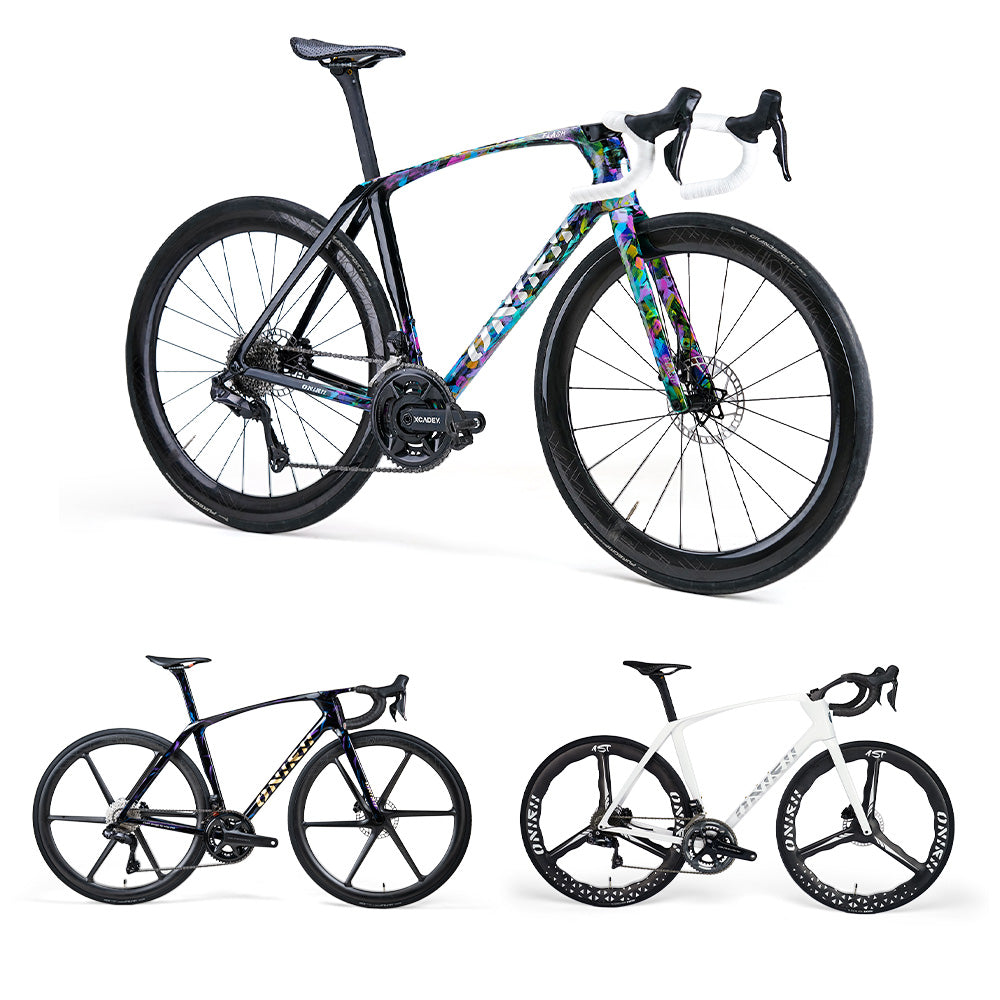

Customized designs as shown
①head tube
②Fork: any text or pattern
③Upper tube: any text or pattern
④Our brand logo (not removable)
⑤Stem: any text
⑥Rear upper triangle: any text or pattern
⑦Rear lower triangle: any text or pattern

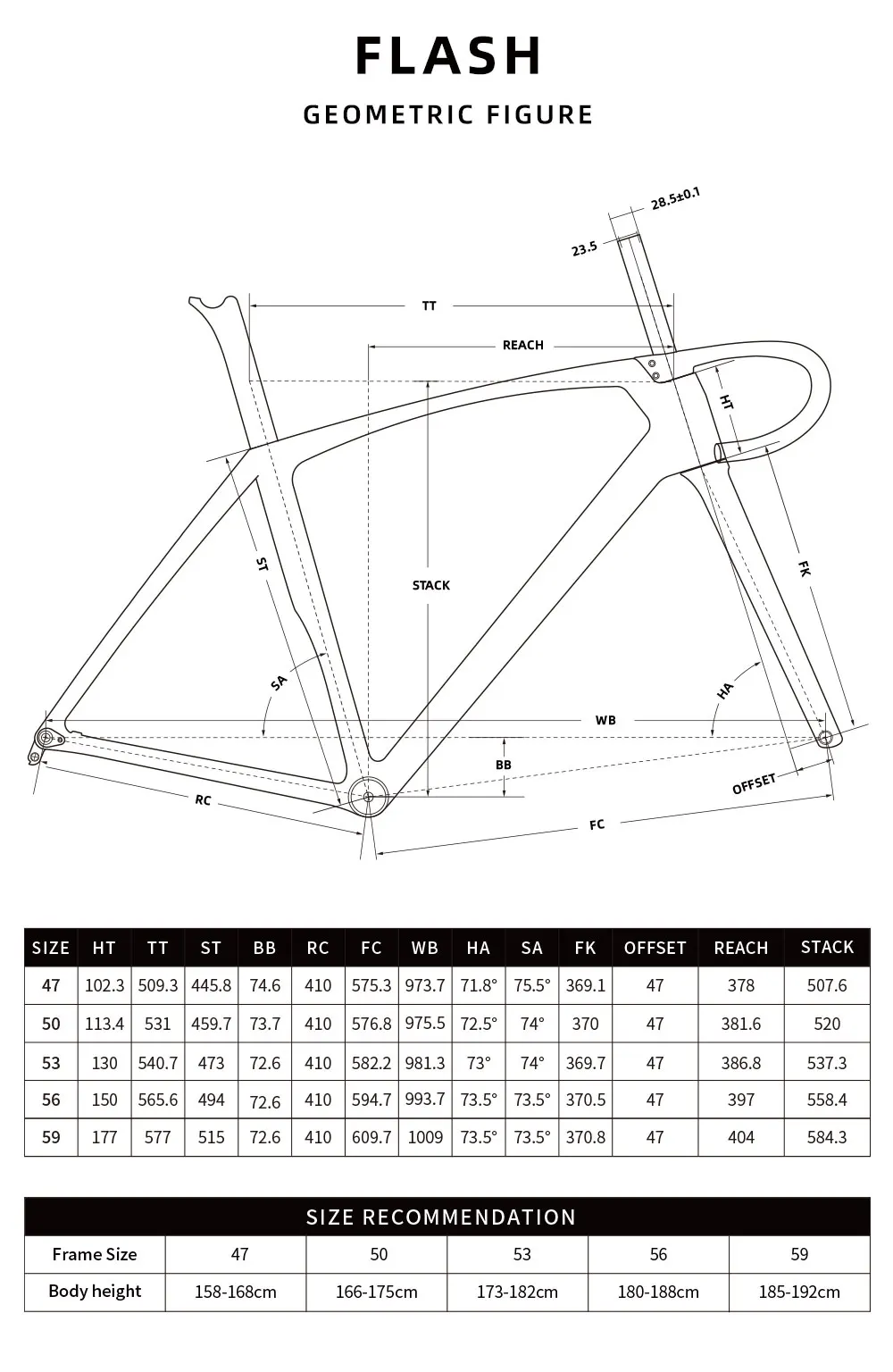

Frame information
Brand:ONIRII
Frame model:FLASH
Frame type:road bike frame
Frame material: T800 +T1000 Carbon Fiber
Bottom bracket specification: BSA
Head tube specification: 49.5mm top x 52mm bottom
Thru-axis specifications: 12x100mm ,12x142mm
Electronic shifting: Support
Max tire compatibility: 700x30C max
Brake mount: flat mount structure
Frame cable layout: full internal
Warranty: 5 years
Net frame weight: 798g(size M)

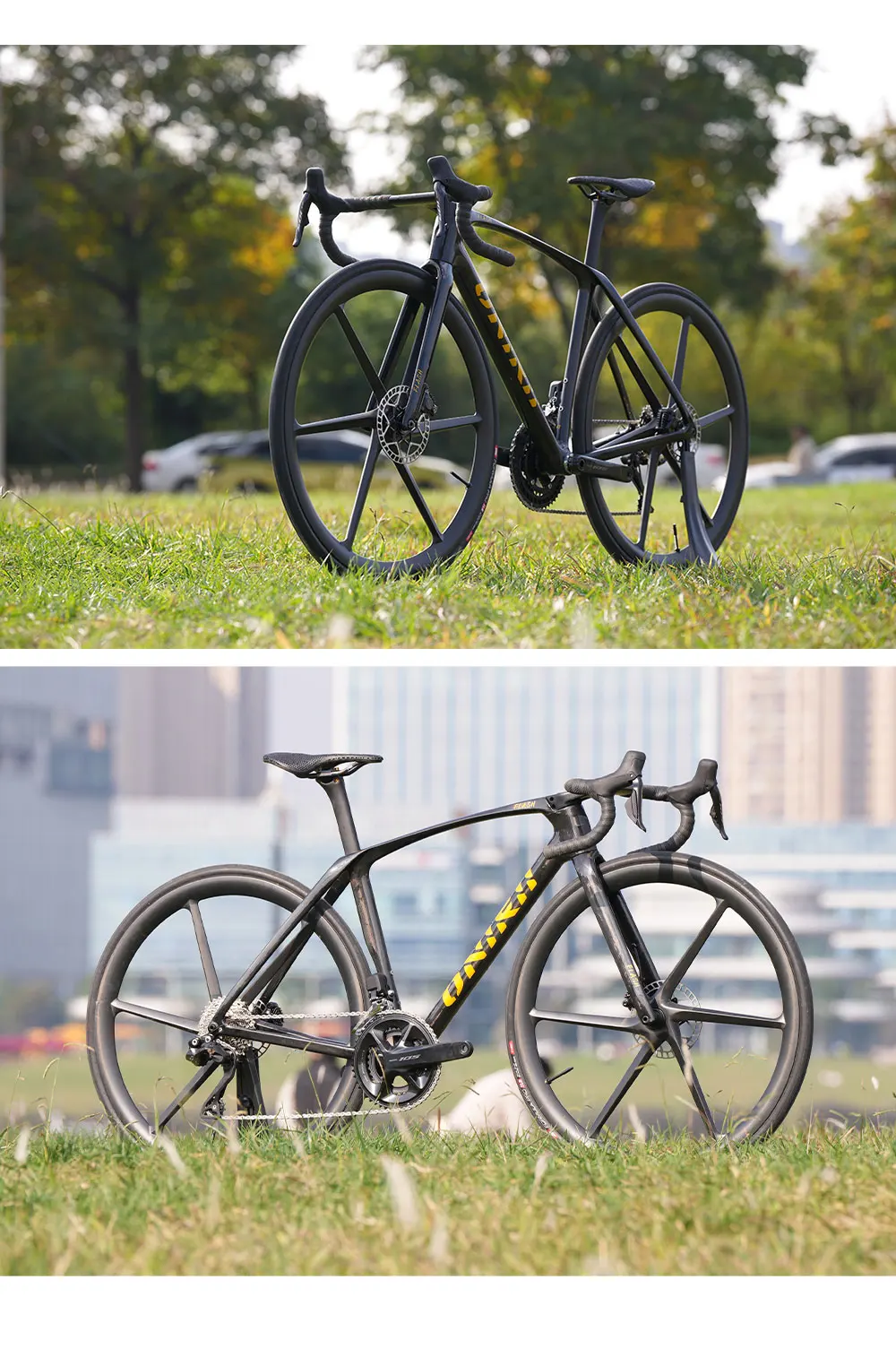

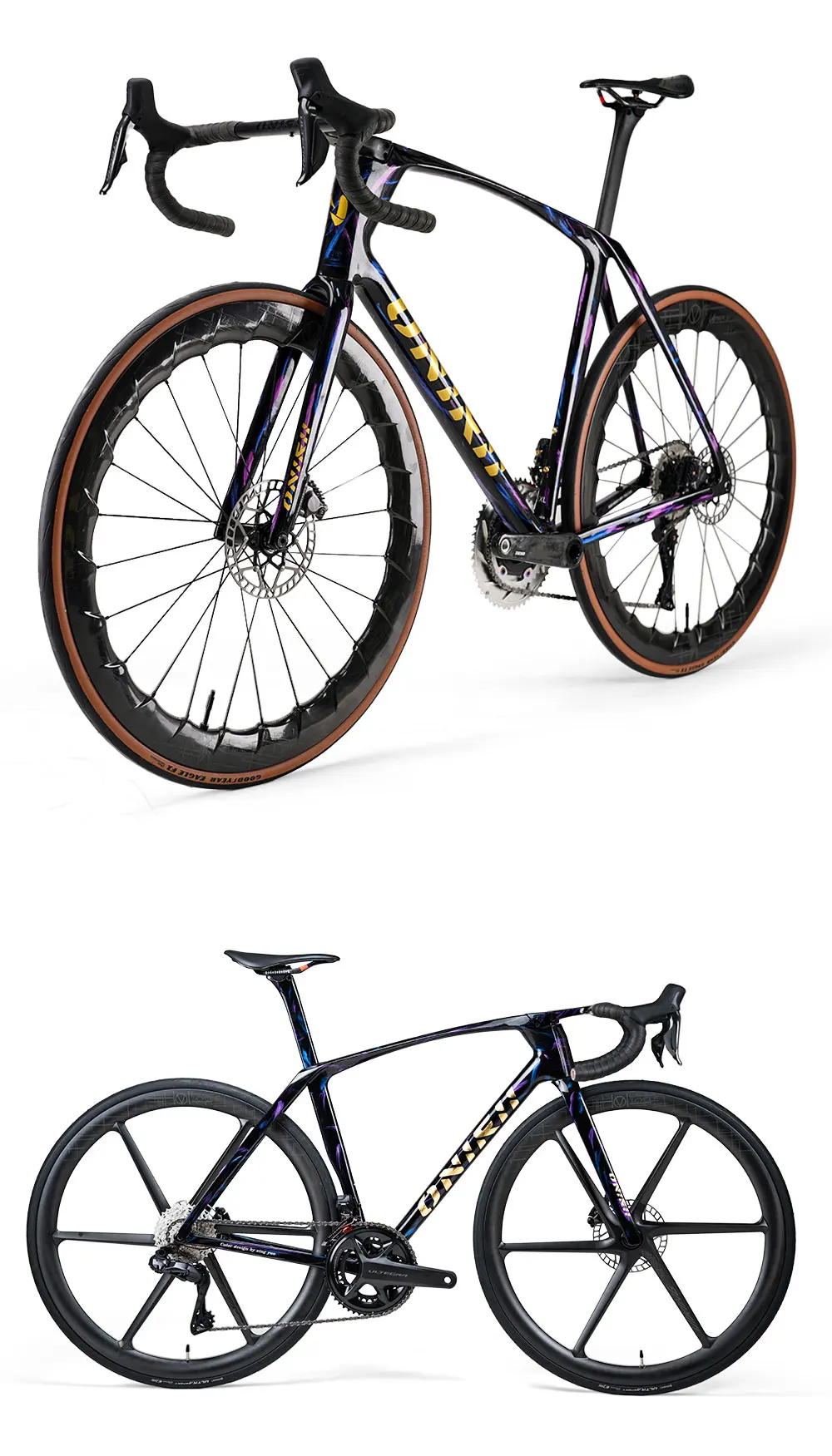

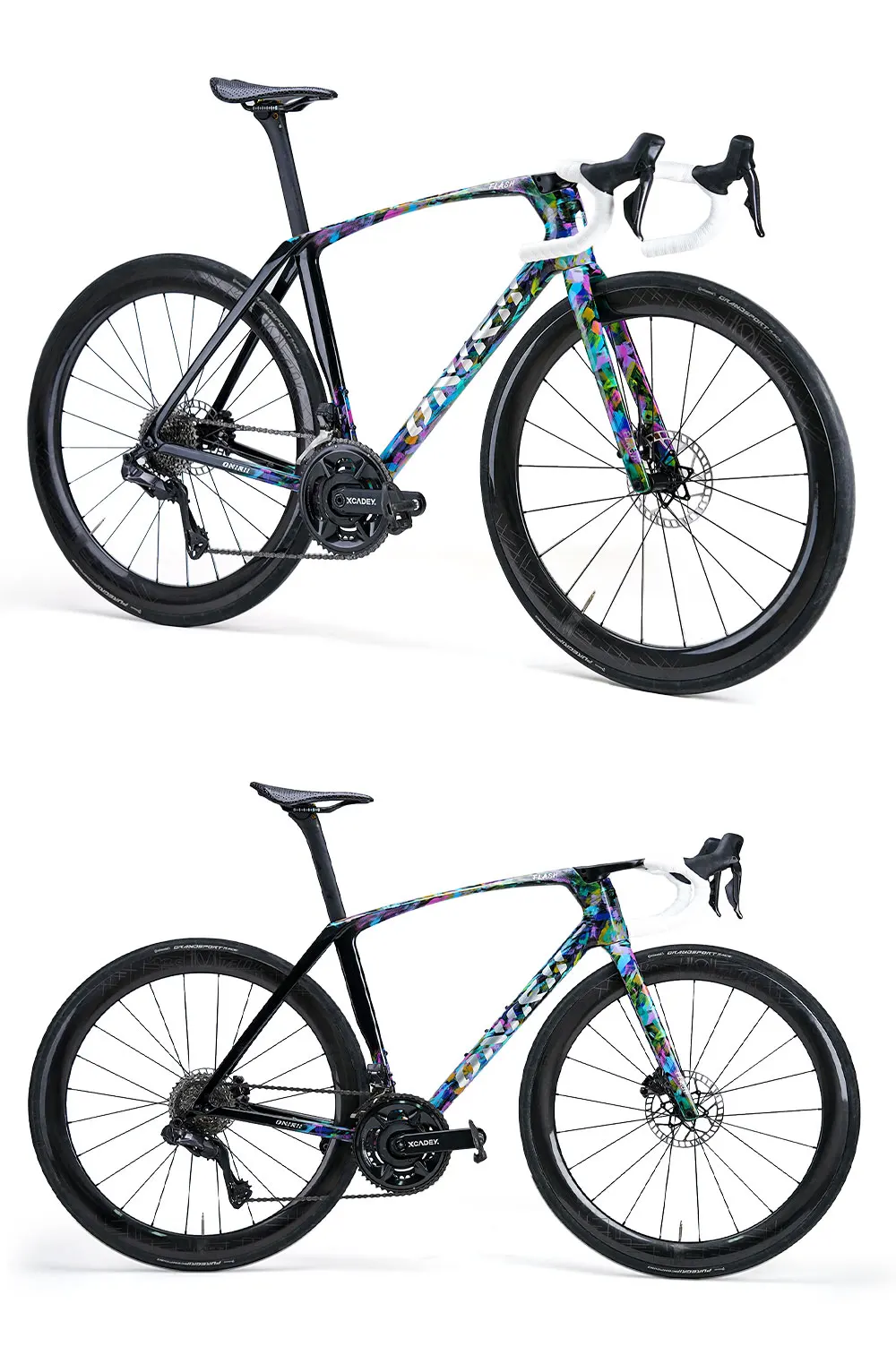

Assembly effect



About after-sales:
1, warranty parts (frame, front fork, seatpost, handlebar, crankset, wheelset, saddle, brake,), the above parts are non-human damage enjoy a one-year warranty,frame warranty for five years.
2, the bike riding process will produce some parts of the wear and tear, the following parts are not covered by the warranty (inner and outer tires, cassette, chain, handlebar tape, brake block / brake pads, pedals, wire core wire tube, the whole bike bearings)
