ONIRII Thru Axle 12mm for Road Bike Shaft Front/Rear Hub Skewers Front Fork Shaft Skewers12x142mm 12x100mm Wheel Axis Hub Shaft NEW

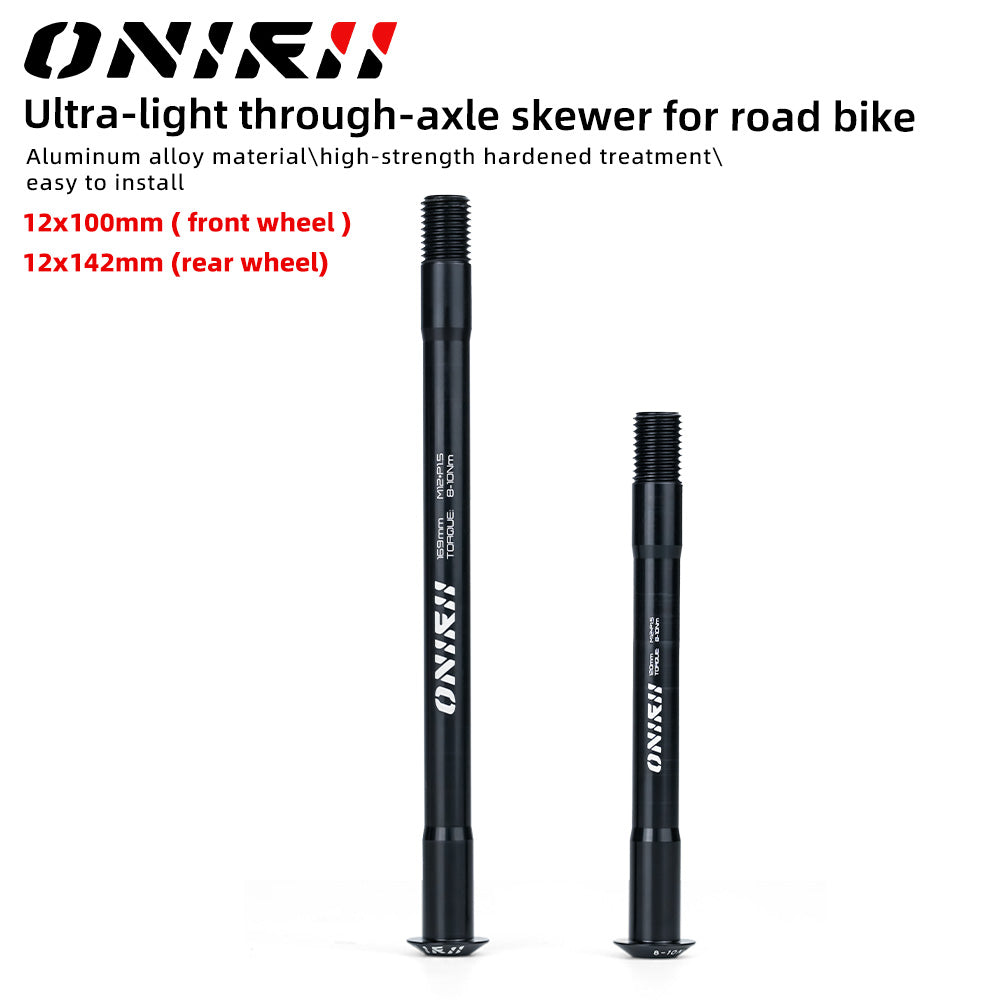

Ultralight Thru Axle Skwer for Road Bikes

Brand: ONIRII

Material: aluminum alloy 7075

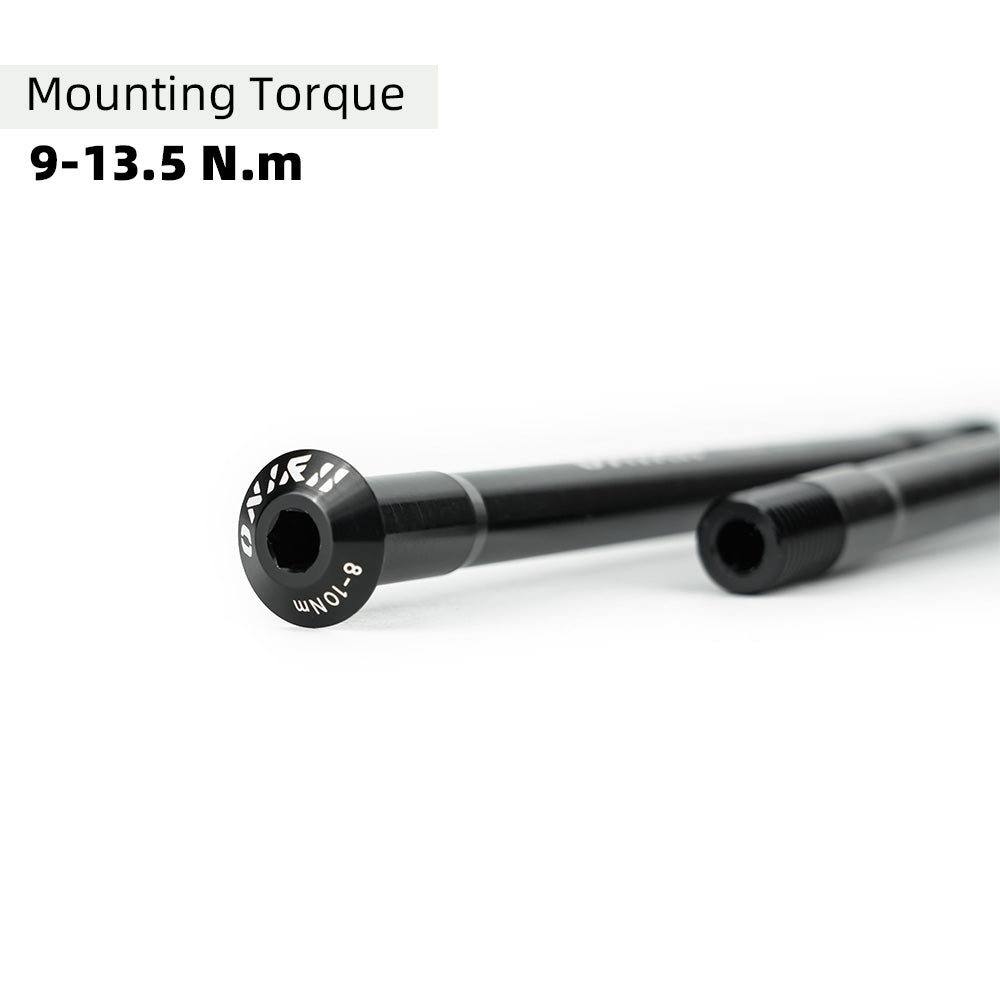

Torque: 9-13.5N.m

Rod diameter:12mm

Thread length:17mm

Thread pitch:1.5mm

Total length of wheel skewer: (front) 120mm, (rear) 169mm

Removal tool : M6 hexagon socket tool

Specification：front wheel 12x100 mm , rear wheel 12x142 mm

Weight: single front, 26g, single rear, 35g

How to choose the right specification?

Quickly know the size of the front and rear wheel, and correctly select the specification of the thru-axle

Measure the front wheel as follows

① Fork inside measurement

② Fork outside measurement

③ Thread pitchdimension measurement

Measure the rear wheel as follows

① Frame inside measurement

② Frame outside measurement

③ Thread pitchdimension measurement

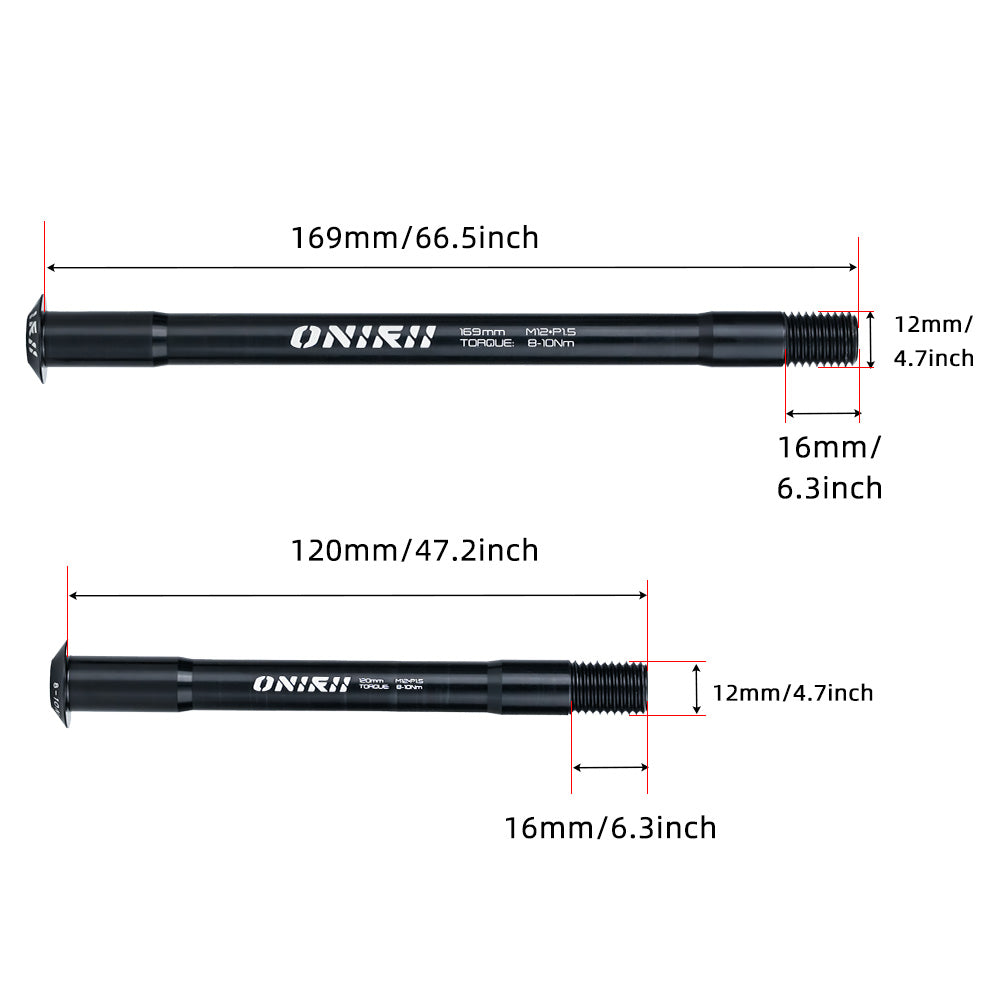

Thru-axle skewer dimensions:

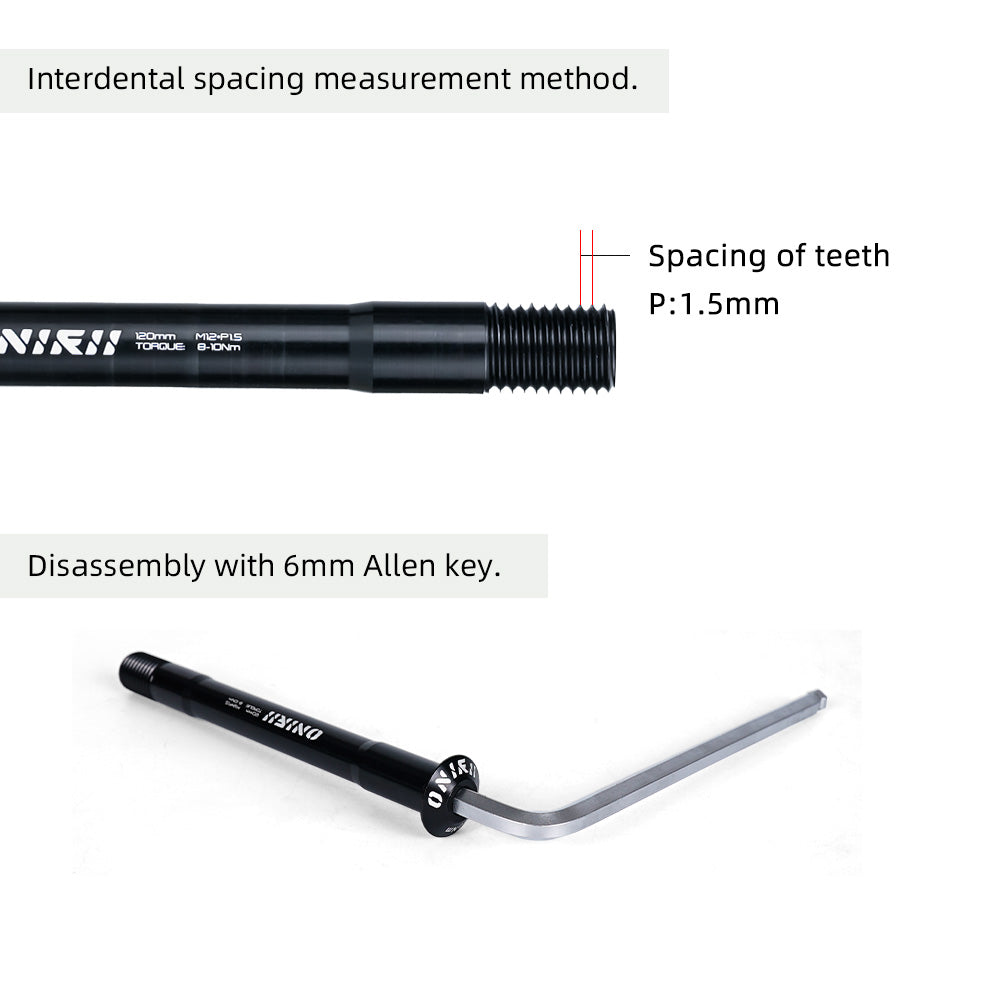

Thread pitch measurement method：

Installation and removal with 6MM hexagonal wrench

Need to know before buying:

1, our thru axle skewer marked with specifications parameters, please select the appropriate specifications for your bike

2, the correct specification should be measured according to the specific length of the fork and frame required thru axle, choose the corresponding length of the thru axle skewer: our thru axle skewer marked 120mm and 169mm refers to the total length

3, the thread pitch is 1.5 (please purchase according to your own needs of thread pitch and length specifications)

4, if our specifications do not apply to your frame, you can purchase spacers to adjust it

5, after receiving the thru axle rod is recommended not to install but to put on the frame to measure whether it is suitable, once the lubricant is applied and installed after the return is not supported!
