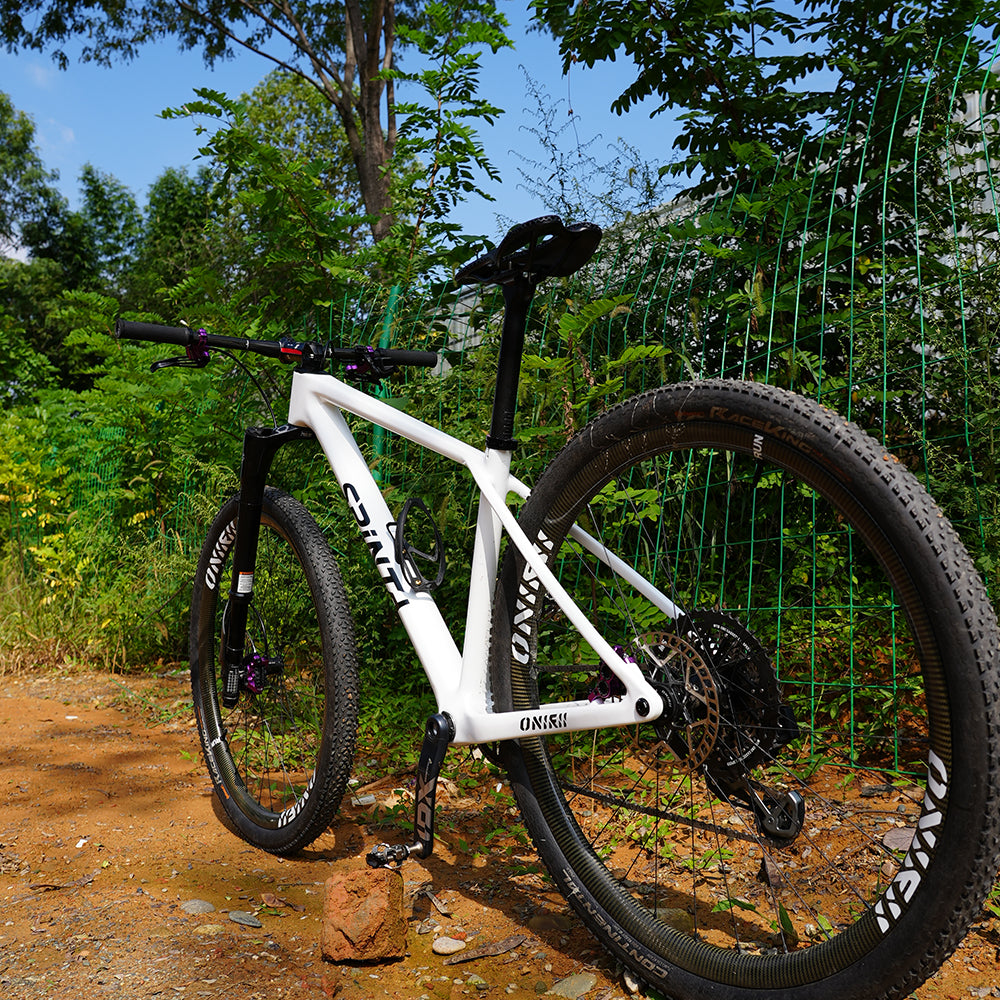

ONIRII WIN SL Carbon Fiber Hardtail MTB Frame BOOST 148, 15“, 17”, 19" with Shock Absorber (UDH) Tail Hook for Mountain Bikes

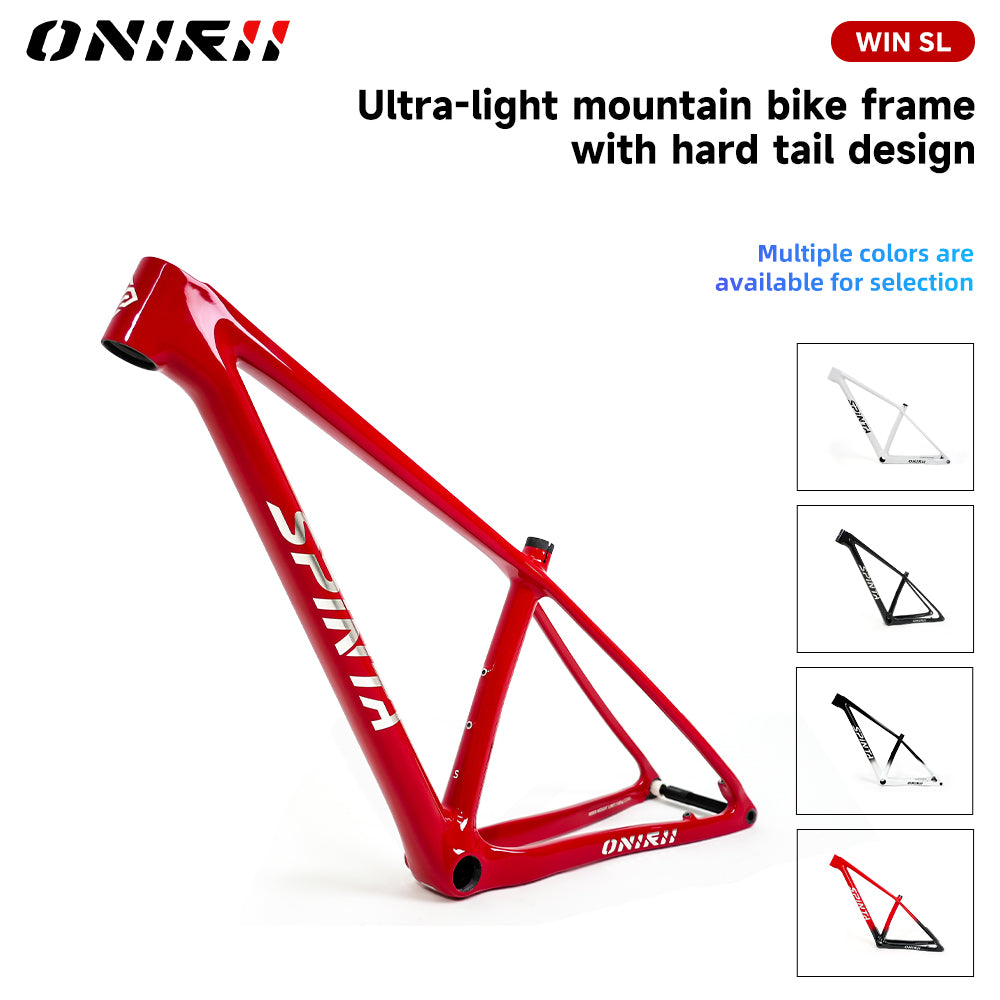

Ultra-Lightweight Hardtail MTB Frame—WIN SL
Extreme Weight Reduction | Balance of Stiffness and Flexibility | Stability and Shock Absorption



Brand: ONIRII
Model: WIN SL
Material: Carbon Fiber
Sizes: 15'', 17'' ,19''
Cable Routing: Supports fully internal and external routing

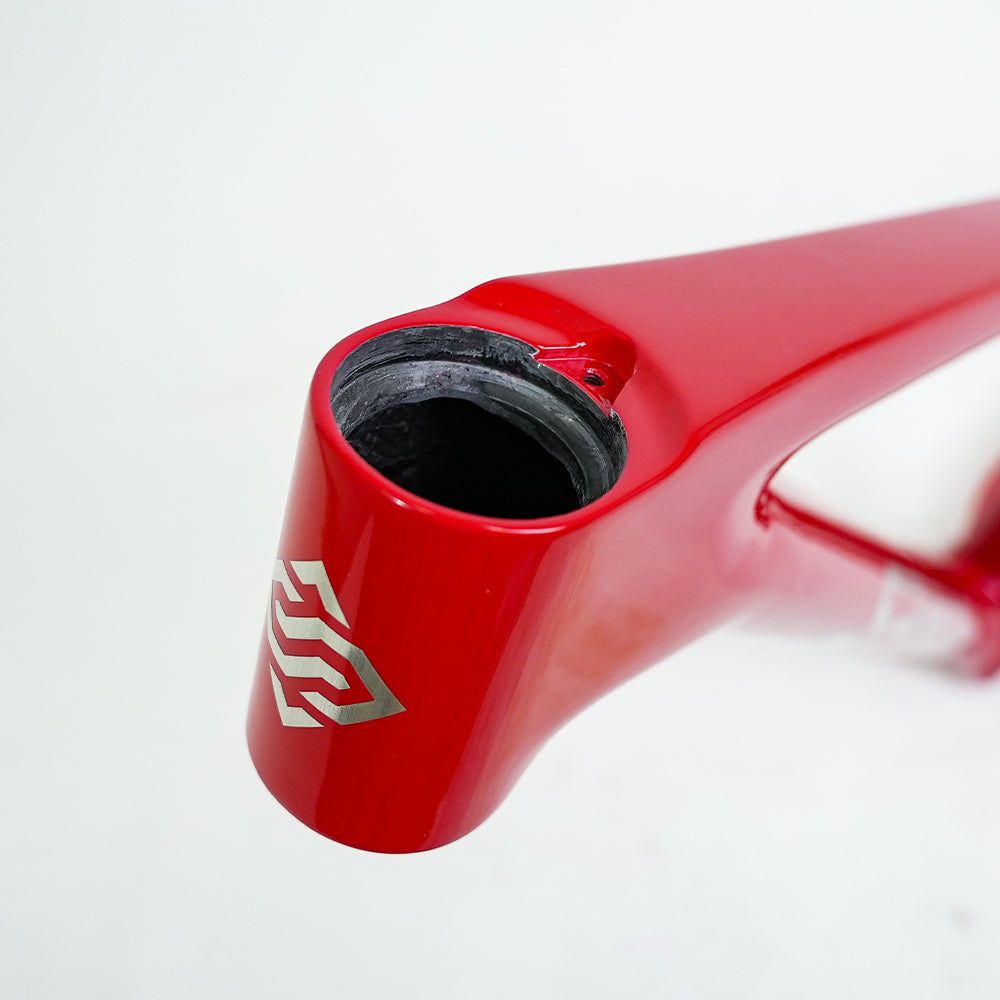

Head Tube: Lower 52, Upper 51.8 mm
Rear Fork Spacing: BOOST 148 mm
Seatpost Diameter: 31.6 mm
Rear Fork Length: 425 mm
Maximum Tire Size: 29×2.5
Bottom Bracket Spec: BB92

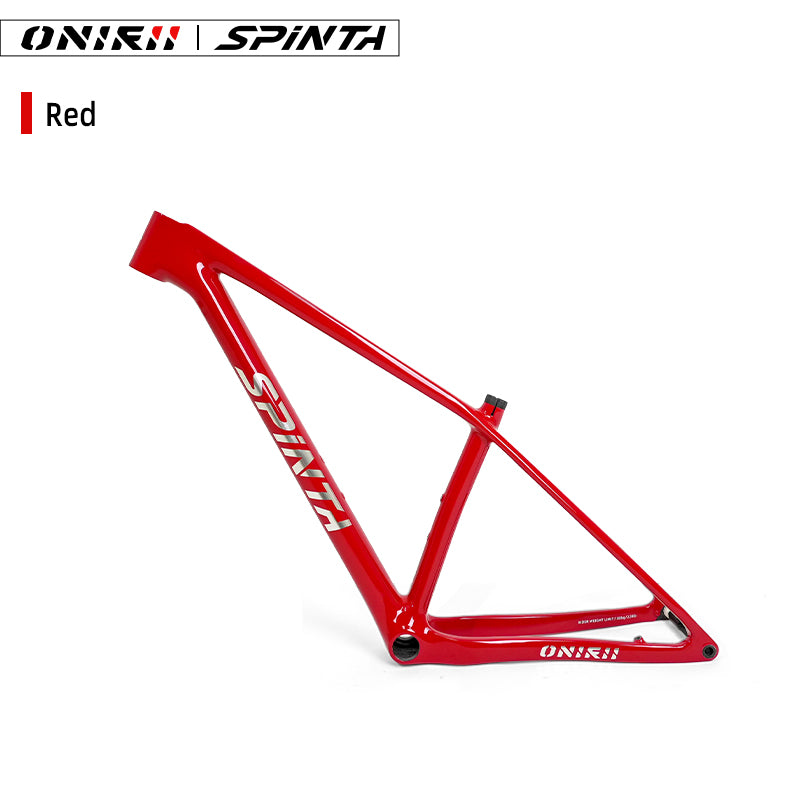

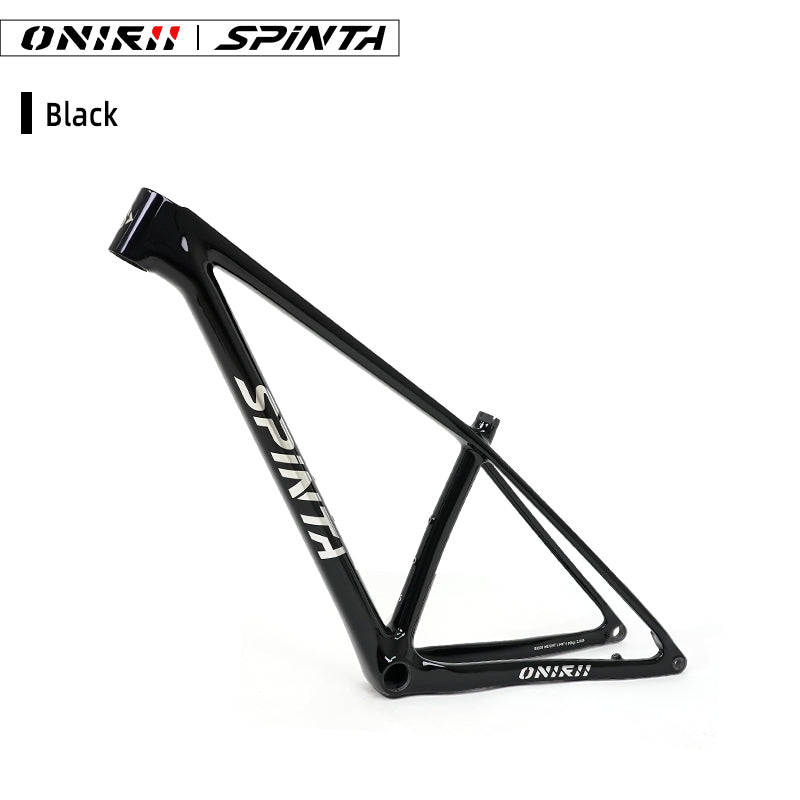

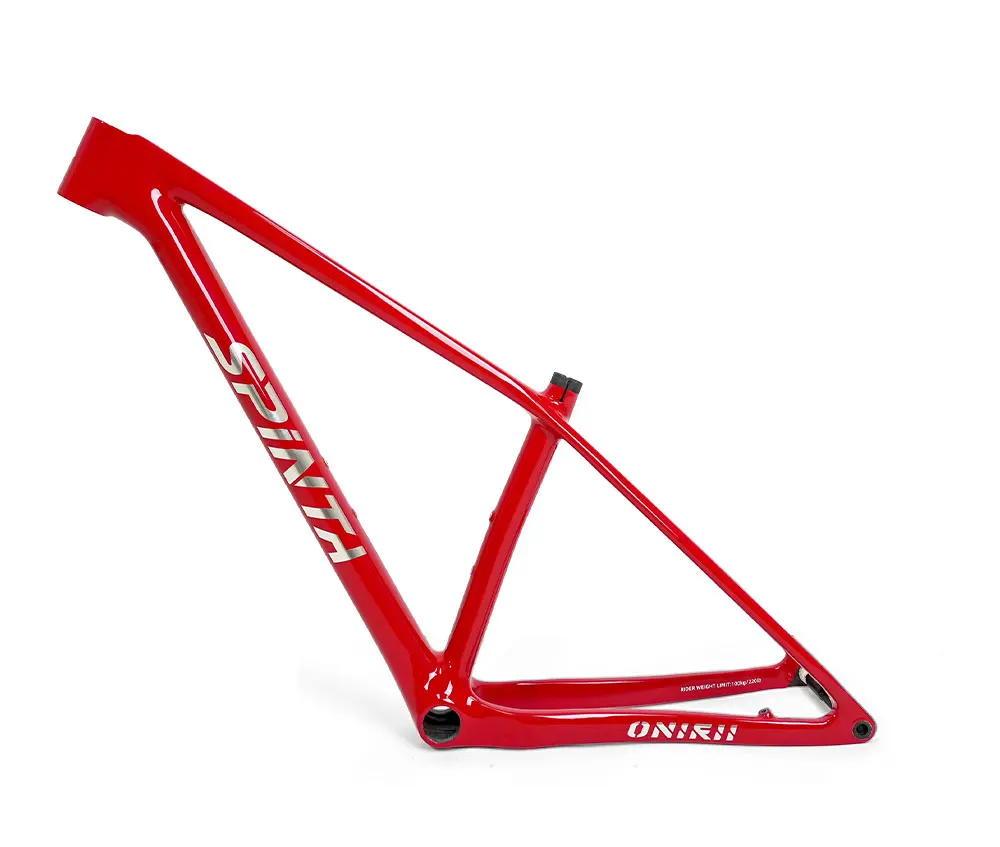

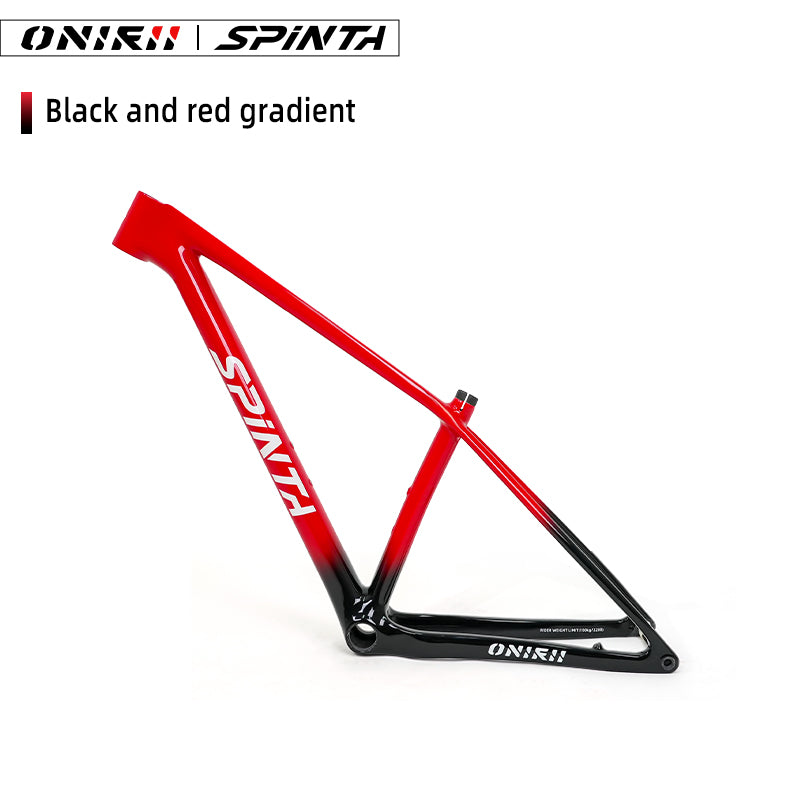

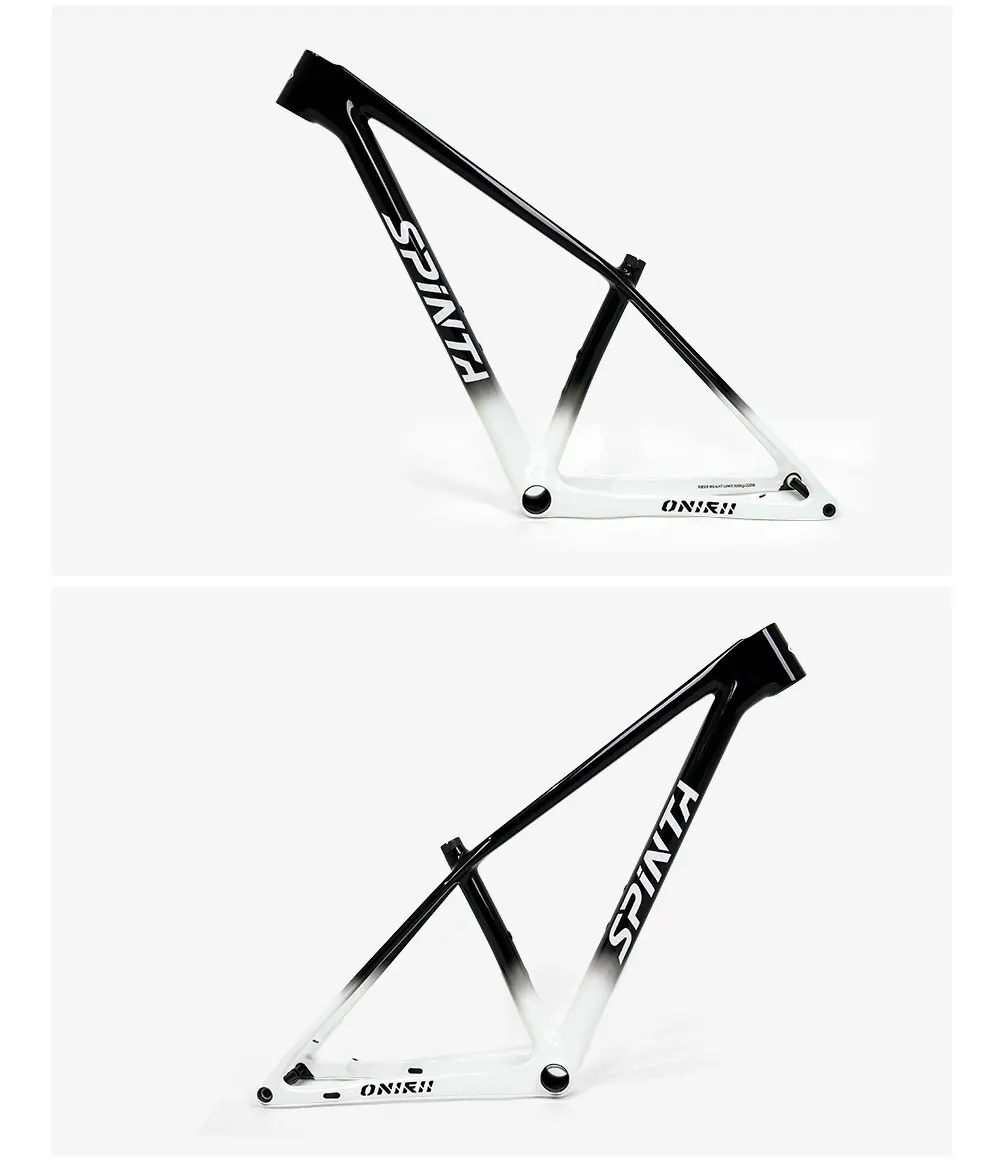

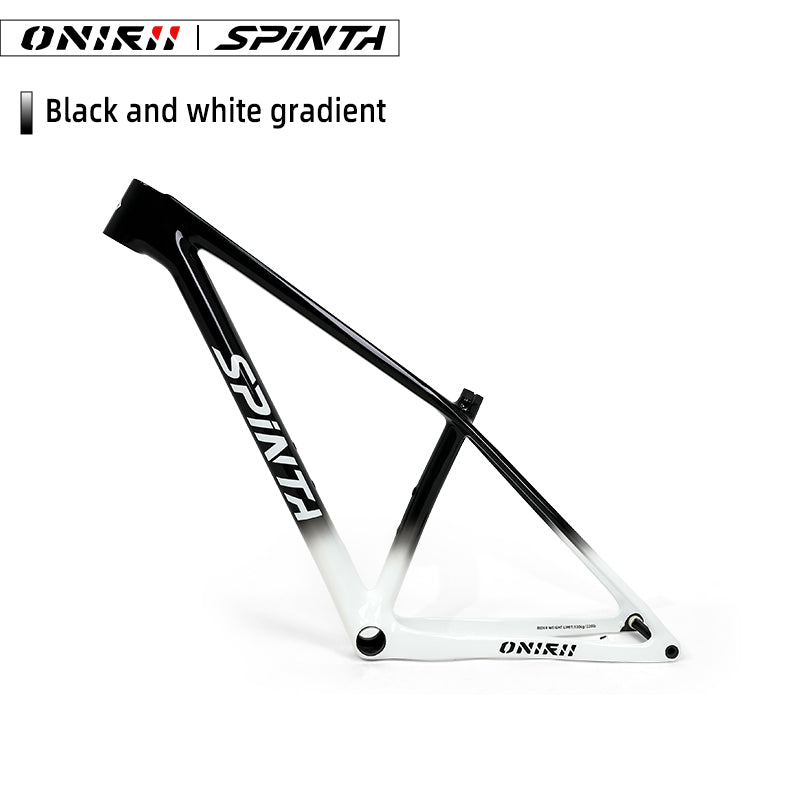

Colors: Red, White, Black, Black-White Gradient, Black-Red Gradient
Weight: (15'') approx. 940g, (17'') approx. 980g, (19'') approx. 1000g (weight includes matte black painting)
Brakes: 160mm disc brakes (newly designed brake mounts, compatible with 95% of brakes on the market, including four-piston models)
Warranty: Five years (excluding damage caused by human error)

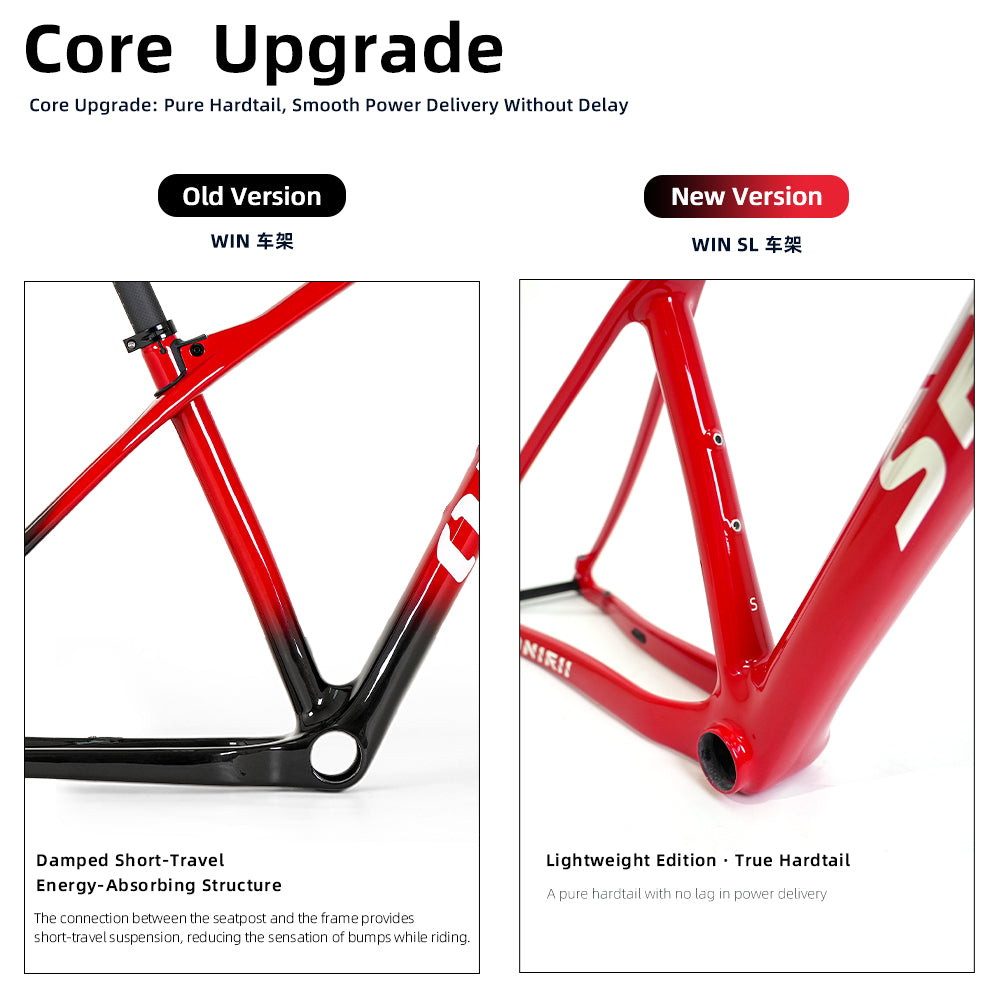

Core Upgrade

Comparison of the New and Old Models

Compatibility

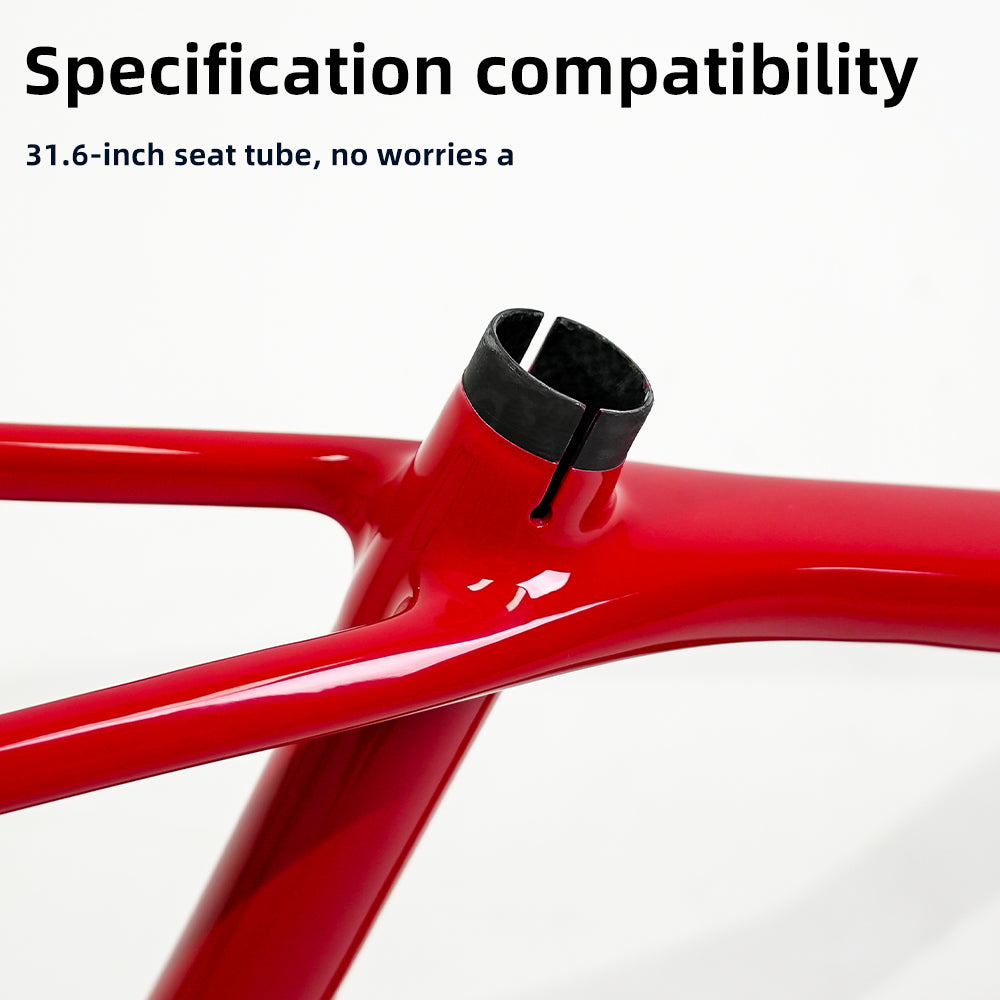

31.6 seatpost—effortless height adjustment

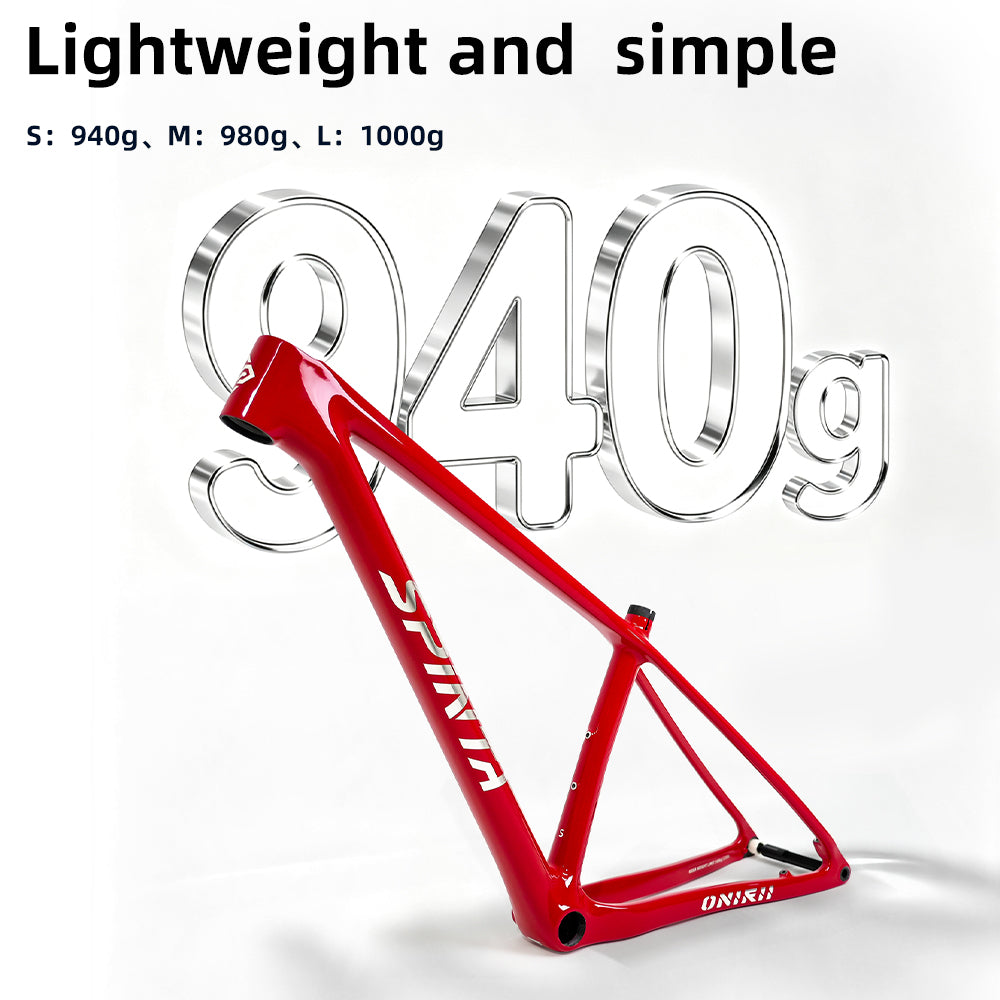

Ultra-Lightweight
30% lighter than the first-generation WIN

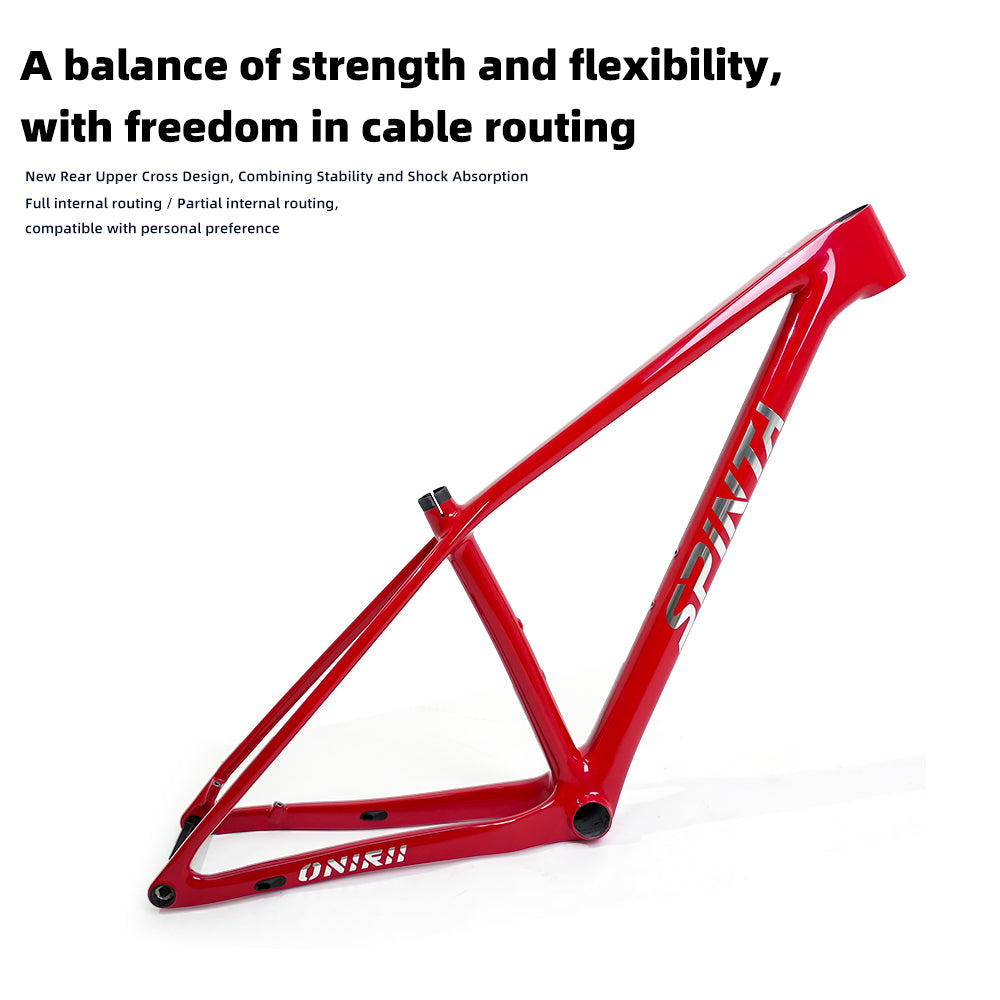

A Balance of Rigidity and Flexibility, with Flexible Cable Routing

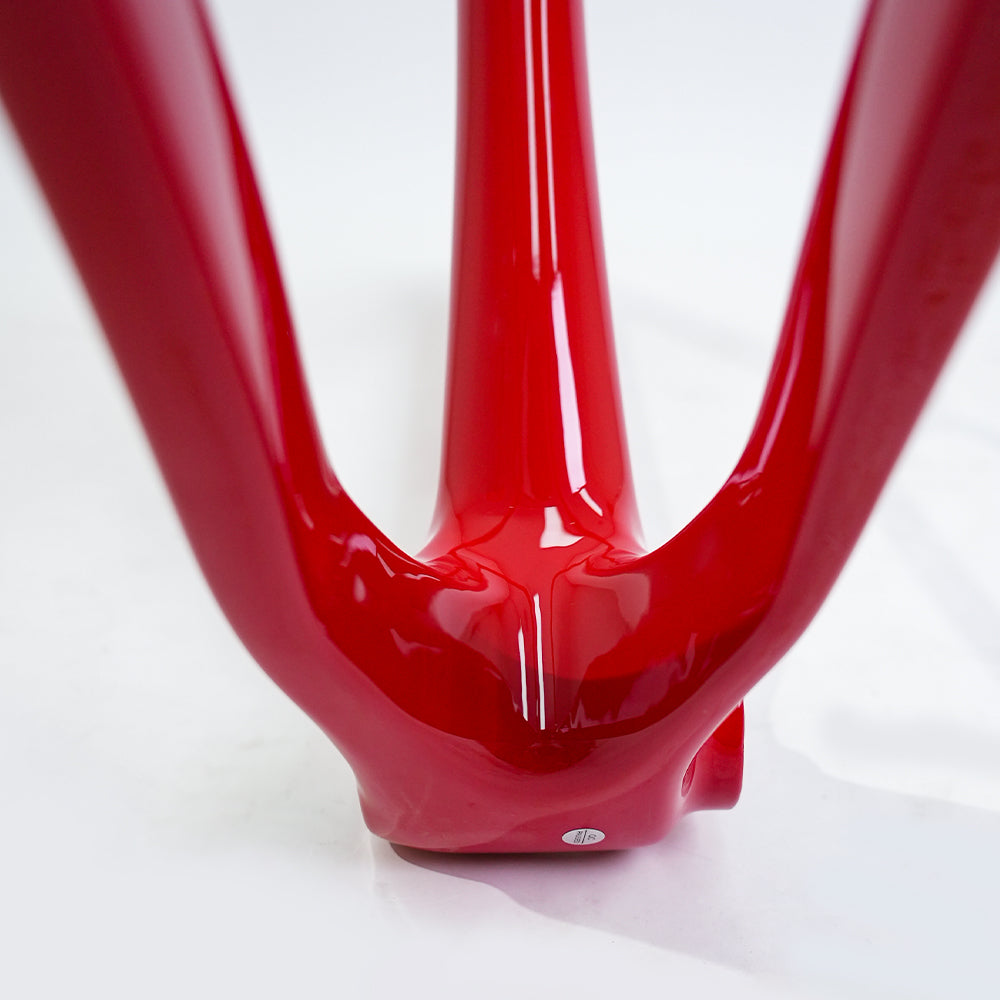

Innovative Rear Upper Brace Design for Both Stability and Vibration Damping
Fully Internal or Semi-Internal Cable Routing—Compatible with Any Preference

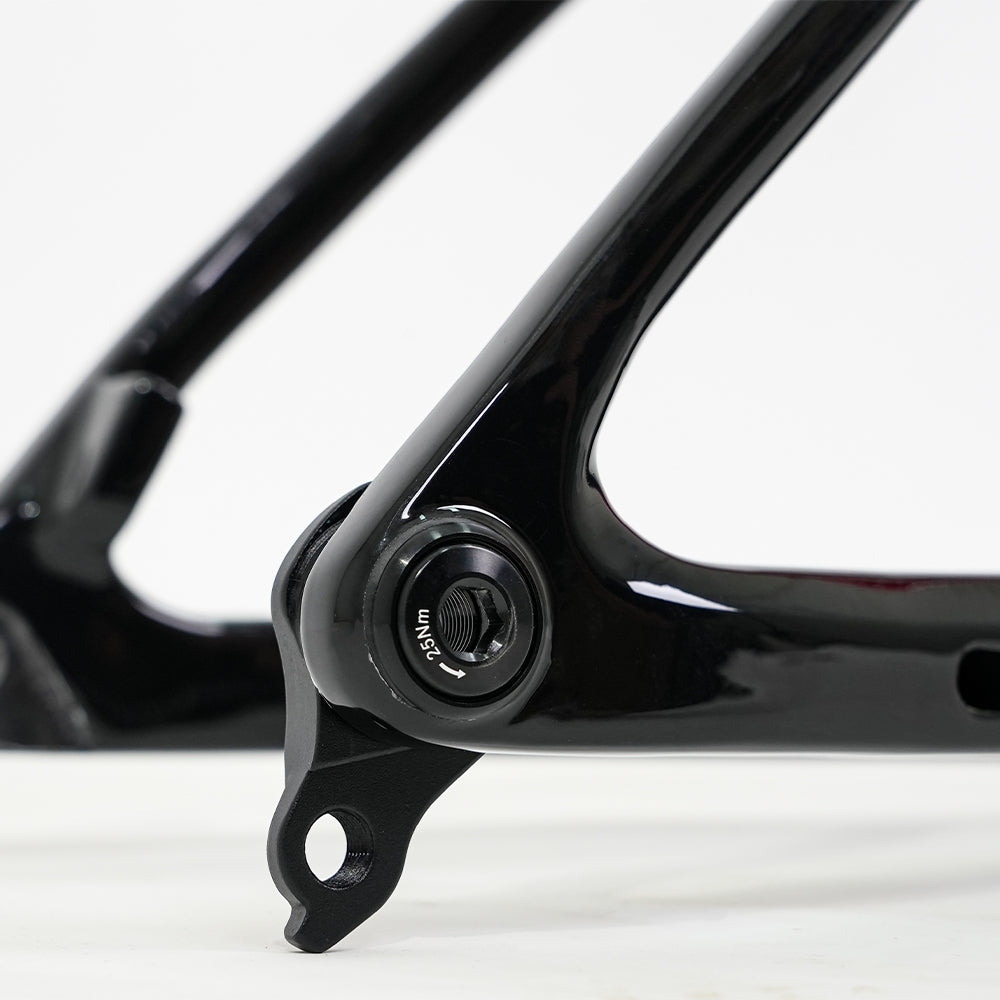

UDH Hanger
WIN SL mountain bike frames come standard with a UDH hanger.
A unified mounting reference improves shifting precision.
In the event of a collision, the hanger moves backward to absorb the impact, sacrificing itself to protect the expensive rear derailleur and frame.
Universal parts make replacement easy and offer native compatibility with SRAM T-Type shifting.

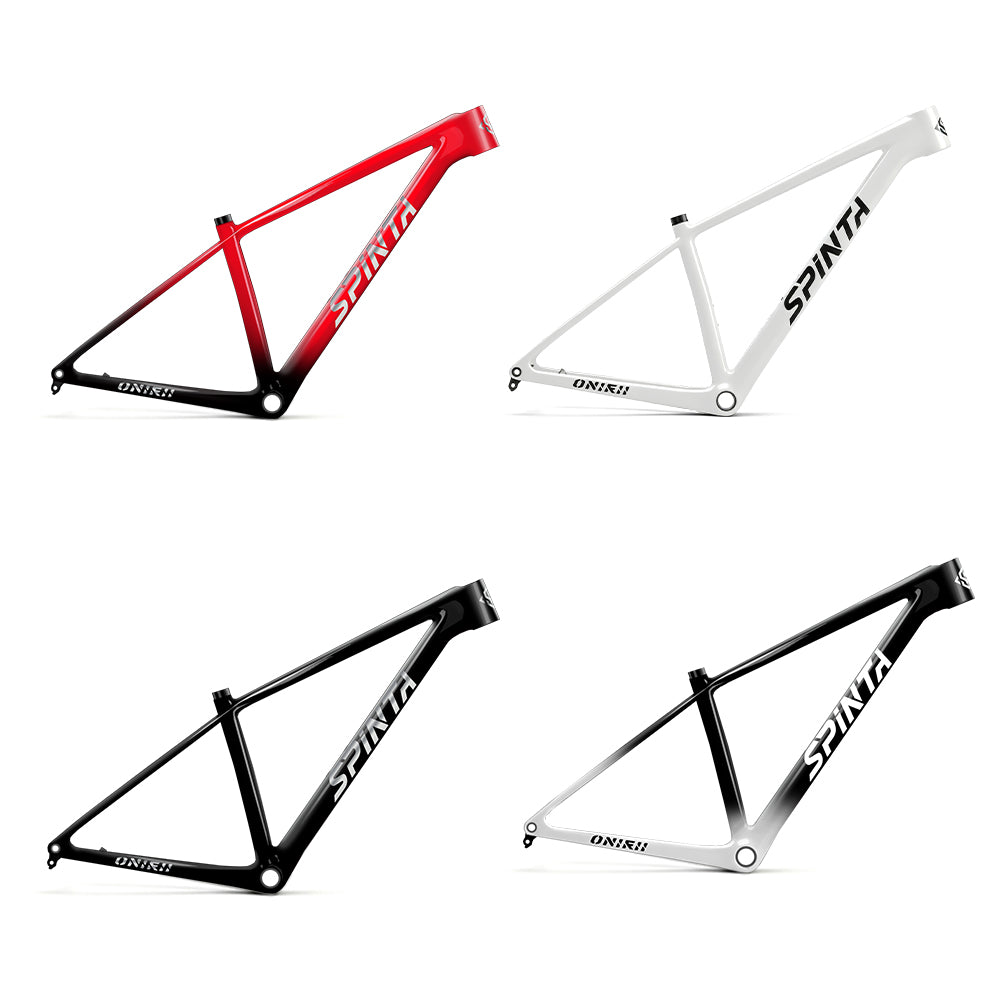

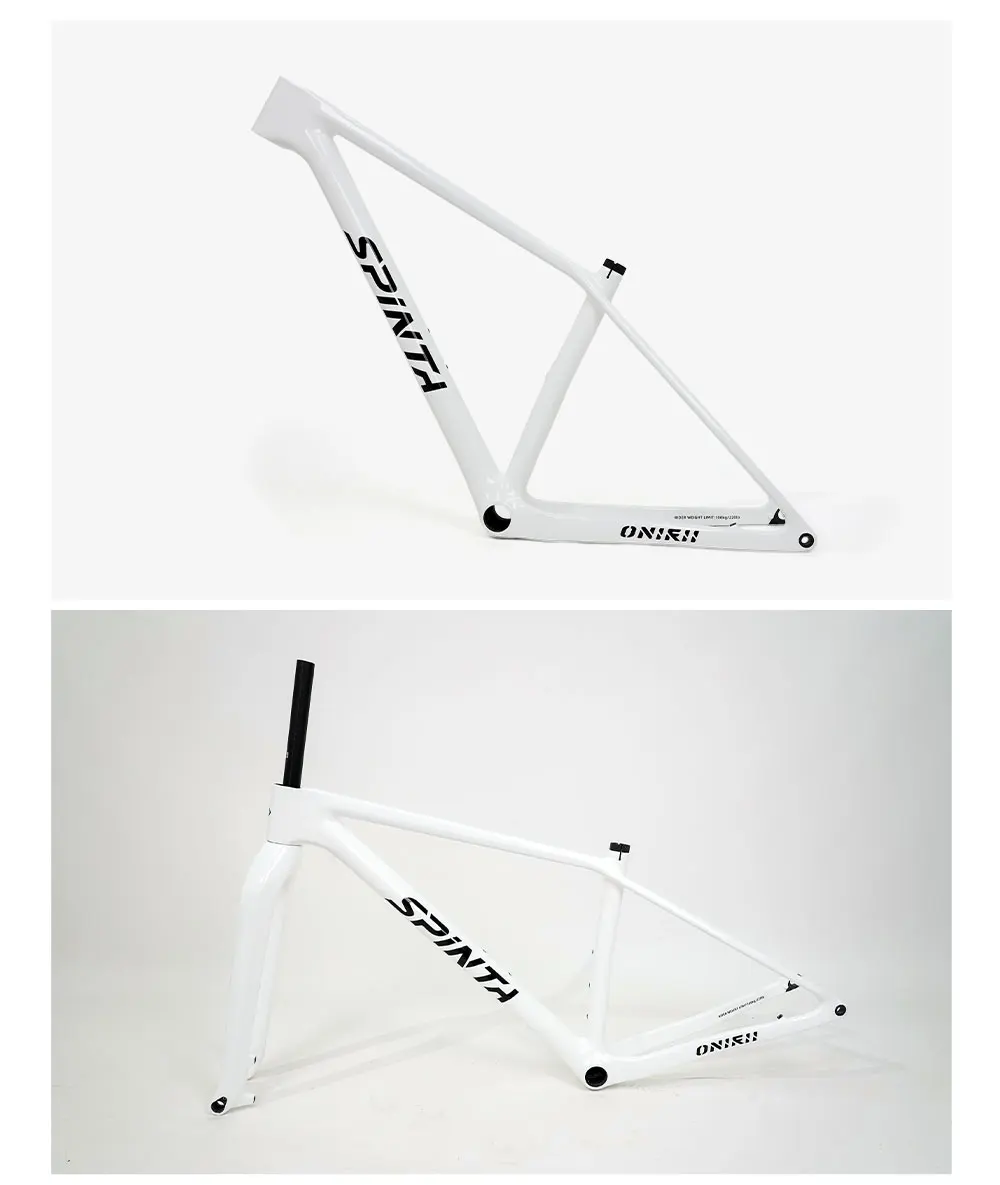

Available in a variety of colors
