VCYCLE VIPER S Carbon Fiber Wave Wheels Tubeless-Ready Carbon Spoke Road Bike Ultra-Lightweight Wheels

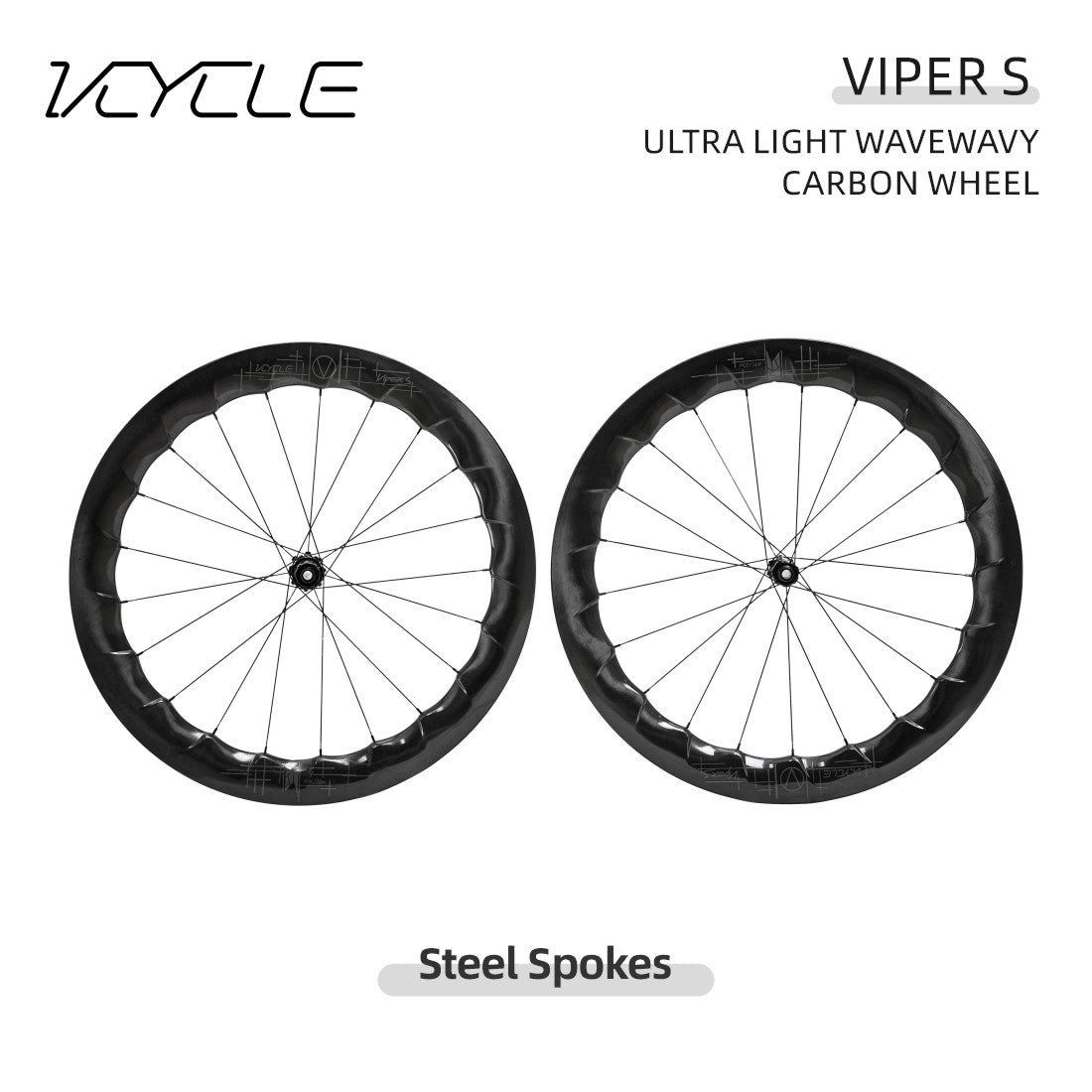

Steel Spoke Version
Rim Material: Toray T800 + T700 + Special Carbon Fiber
Wheel Weight: 1511g + 30g (tubeless ready)
Spoke Configuration: Sapim CX-Ray Steel Spokes
Number of Spokes: 21 front, 21 rear
Rim Specifications: 700c rim height, 65mm peak, 60mm trough

Outer/Inner Diameter: Outer 30mm, Inner 24mm
Hub Specifications: Ratchet EX-RF705/EX-RR705, Ceramic Bearings
Compatible Freehubs: HG/XDR
Spoke Hole Spacing: Front 100mm, Rear 142mm
Compatible Tire Types: Tubeless ready / clincher tire
Recommended Tire Pressure: Refer to tire label

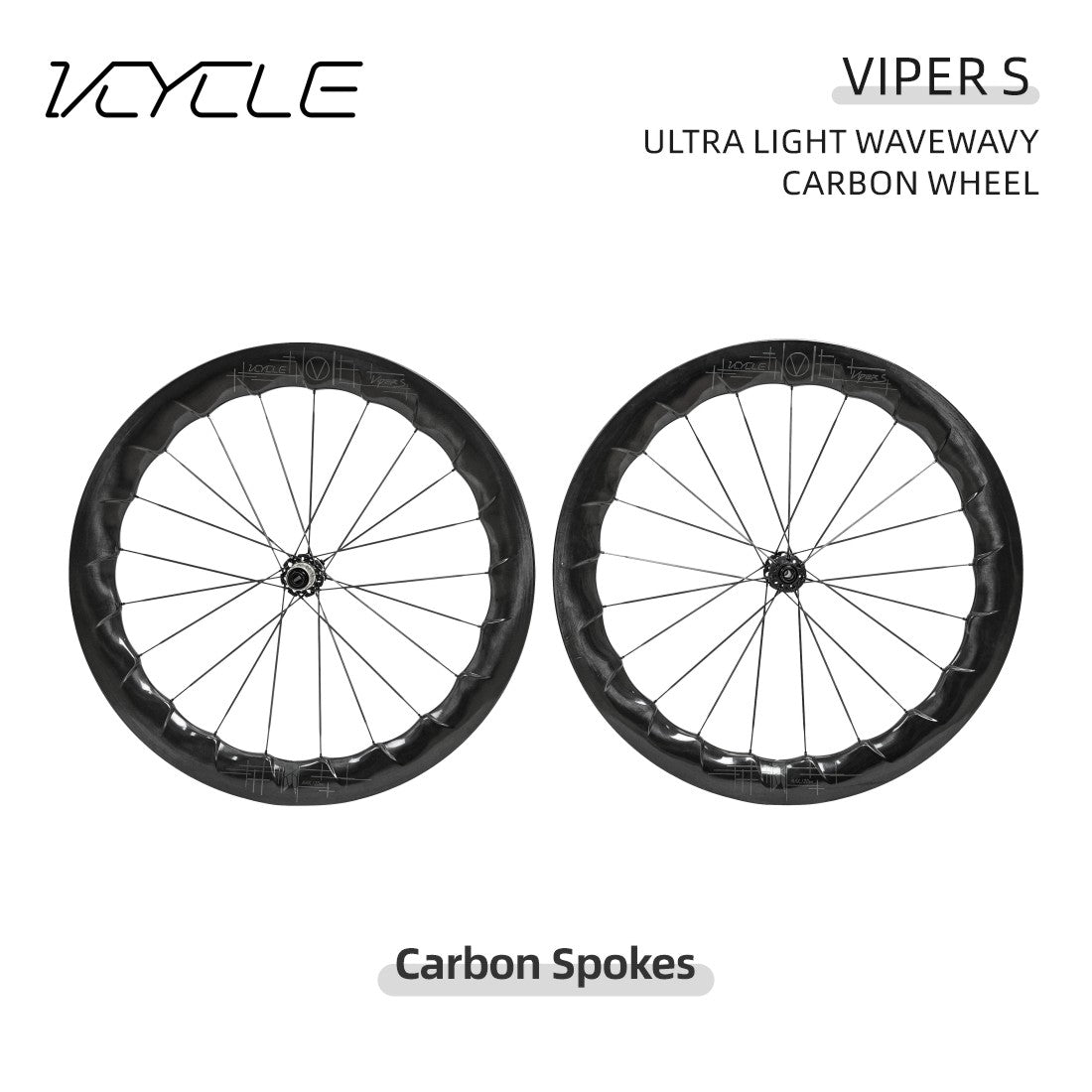

Carbon Spoke Version
Rim Material: Toray T800 + T700 + Special Carbon Fiber
Wheel Weight: 1477g + 30g ( rim tape weight)
Spoke Configuration: Carbon Spokes ES-TY01-3.2
Number of Spokes: 21 front, 21 rear
Rim Specifications: 700c rim, 65mm peak, 60mm trough

Outer/Inner Diameter: Outer 30mm, Inner 24mm
Hub Specifications: Ratchet EX-RF972/EX-RR972 Ceramic Bearings
Compatible Hubs: HG/XDR
Spoke Spacing: Front 100mm, Rear 142mm
Compatible Tire Types: Tubeless ready / clincher tire
Recommended Tire Pressure: Refer to tire label

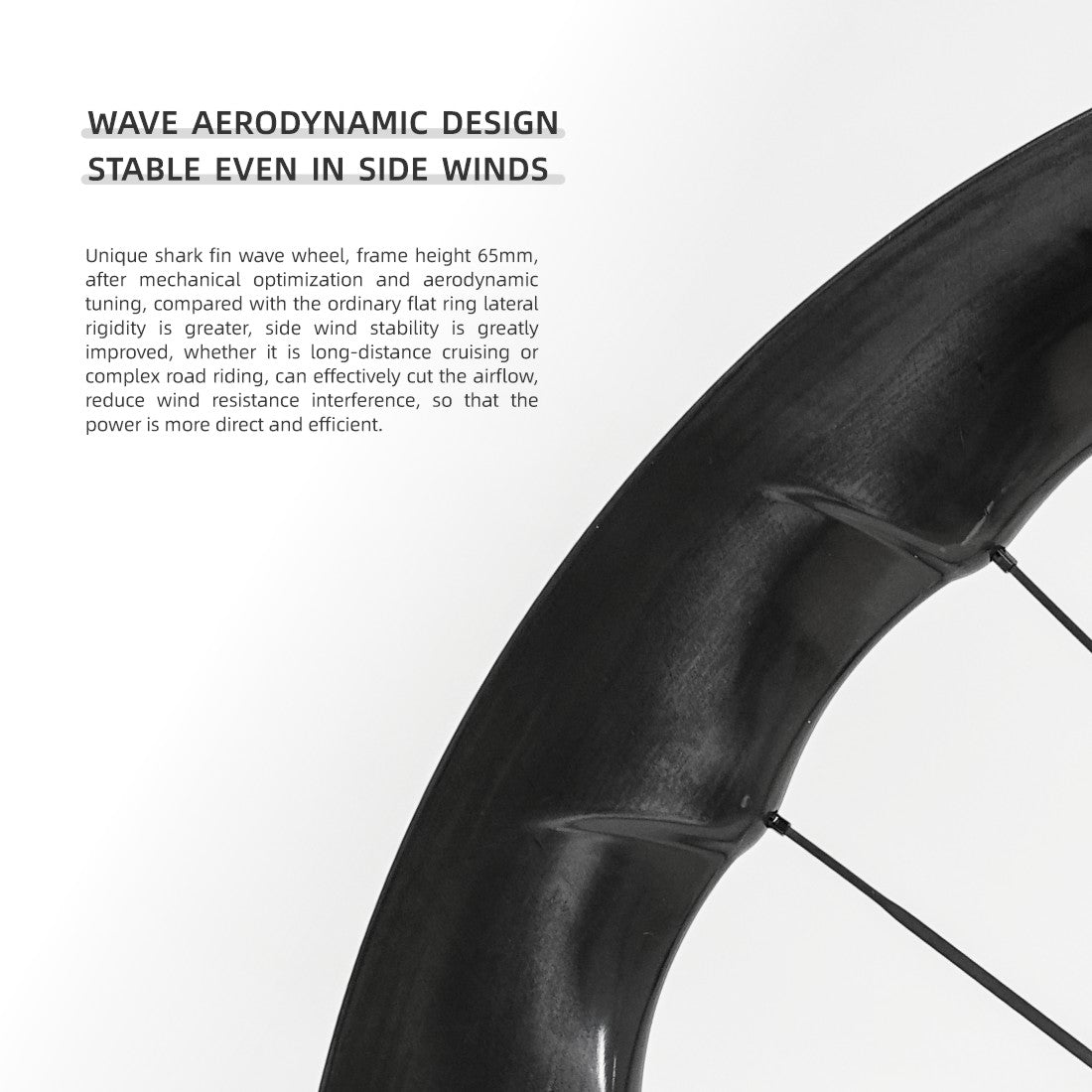

Wave-Inspired Aerodynamic Design Effortlessly Handles Crosswinds

The unique shark-fin wave-shaped rim, with a rim height of 65mm, has been mechanically optimized and aerodynamically tuned. Compared to standard flat rims, it offers greater lateral stiffness and significantly improved crosswind stability. Whether cruising long distances or riding on challenging terrain, it effectively slices through the air, reduces wind resistance, and delivers more direct and efficient power transfer.

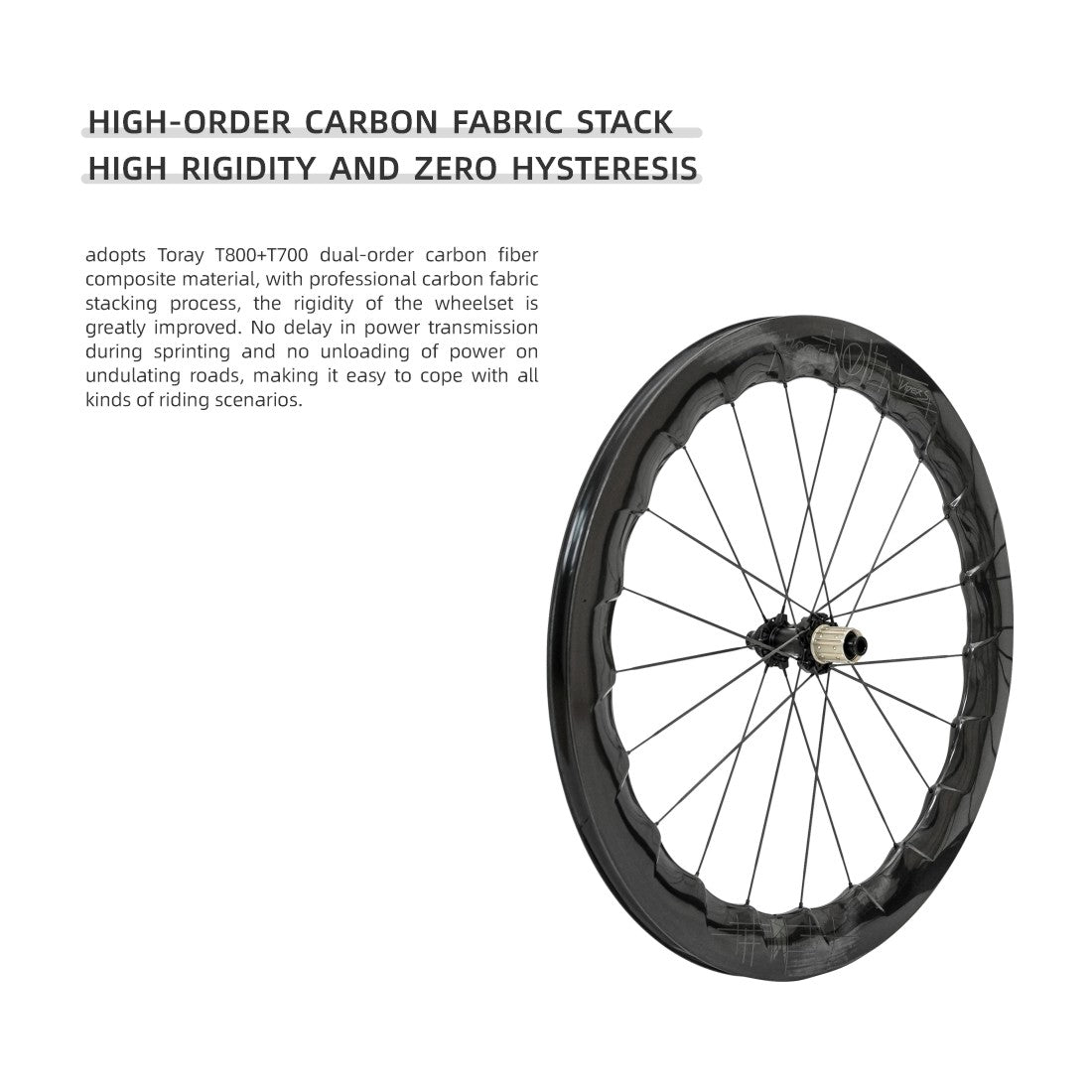

High-grade carbon fiber layup, high stiffness with zero lag

Featuring a Toray T800+T700 dual-grade carbon fiber composite material combined with a specialized carbon fiber layup process, the wheelset’s stiffness is significantly enhanced.
Power transfer is instantaneous during sprints, and power is maintained without loss on undulating terrain, allowing you to effortlessly handle all types of riding conditions.

Compatible with tubeless-ready systems, practical and easy to maintain

The tubeless-ready rim features a flanged design, offering compatibility with both clincher and tubeless-ready tires. It supports higher inflation pressures, effectively reducing the likelihood of punctures.
Daily maintenance is simple and convenient, providing peace of mind whether you're commuting or tackling long-distance rides.

High-end hubs deliver a quiet and smooth ride

The steel-spoke models feature EX-RF705/EX-RR705 ceramic-bearing hubs,
while the carbon models are upgraded with EX-RF972/EX-RR972 ceramic-bearing hubs.
With improved smoothness and reduced rolling resistance, the silent ratchet design
eliminates unnecessary gear noise during rides, ensuring you won’t disturb others during group rides and can focus on enjoying the ride.

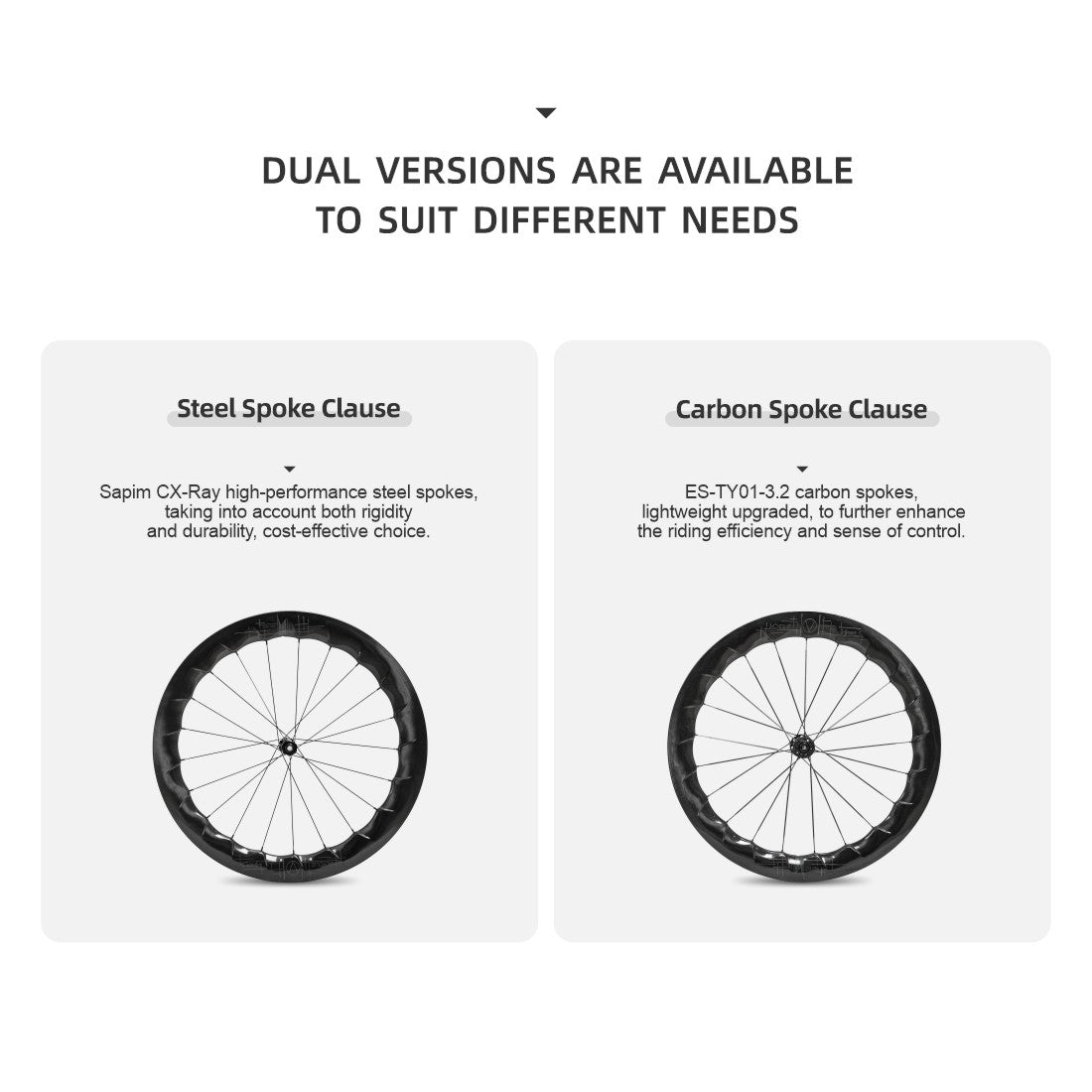

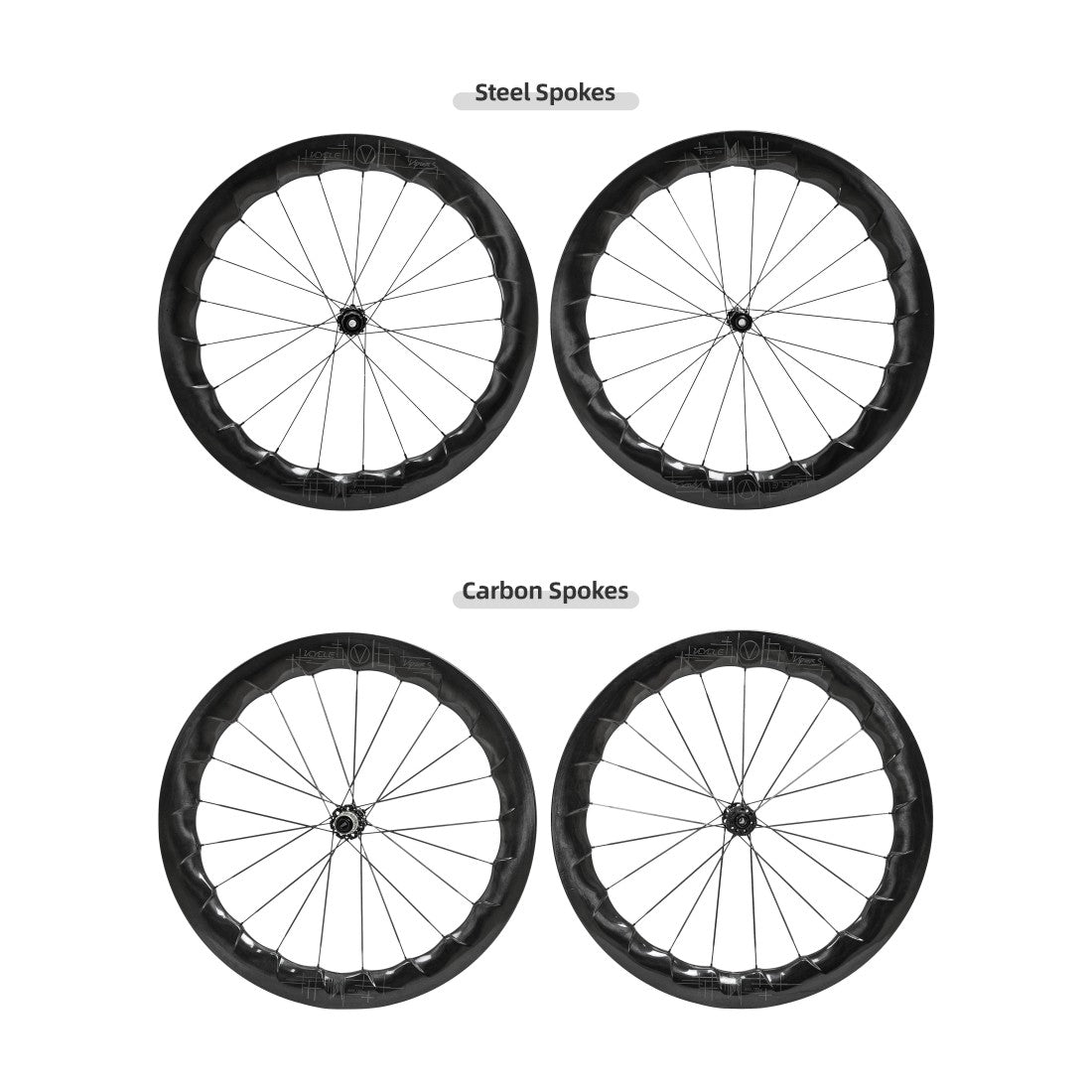

Two versions available to suit different needs

Steel Spoke Version
Sapim CX-Ray High-Performance Steel Spokes
Combines stiffness and durability
A great value choice

Carbon Spoke Version
ES-TYO1-3.2 Carbon Spokes
Lightweight upgrade
Further enhances riding efficiency and handling

Product Photos

After-sales:
1, normal use of the wheelset warranty of 2 years (excluding the bearing part)
2, such as impact, crash, man-made reasons for damage to the wheelset will provide paid after-sales

Special tips:
1, the wheelset use process, please set the tire pressure according to weight and use scenario reasonable [Refer to the outer tire marked tire pressure].
2,Tire installation process should try to avoid using steel pry bar, or its use of other tools that may damage the rim to install tires.
3,Riding process encounter sharp or right angle steps, potholes should be slowed down to release force through, otherwise it may lead to wear tire damage wheelset.
4,The wheelset should be cleaned, serviced and maintained regularly during the use of the wheelset to maintain the normal use and safety of the wheelset.
5,Do not exceed the wheelset strength tolerance range,do not exceed the wheelset strength tolerance range.
